GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 301
8-12-2 Assembling or replacing the Roll Stand
Use these instructions to assembled or replace the Roll Stand.
1.) Insert the post in the base. The locator pin ensures correct alignment.
2.) Using the 1/2 inch socket wrench provided, fasten the post to the base with the hardware shown.

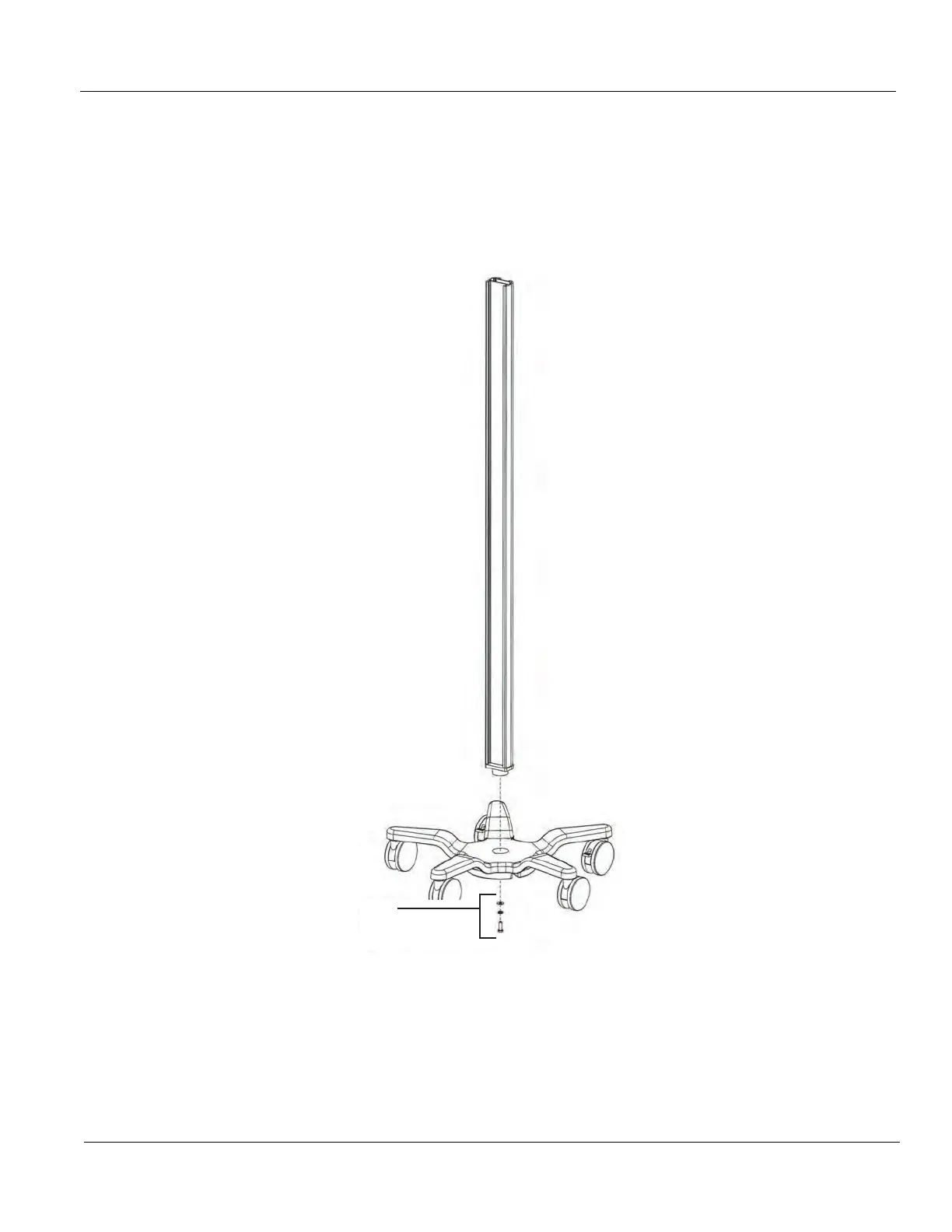

Figure 8-72 Post into Base - (1) 5/16 fLAT Washer, (2) 5/16 Lock Washer,
(3) 5/16-18 x 1 inch Screw - Roll Stand only
1
2
3

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
