IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 305
8-12-2 Assembling or replacing the Roll Stand (cont’d)
9.) Using the 3/16 inch hex wrench provided, fasten the cover plate to the top of the post with four (4)
1/4-20 x 3/8 inch SHCS as shown.

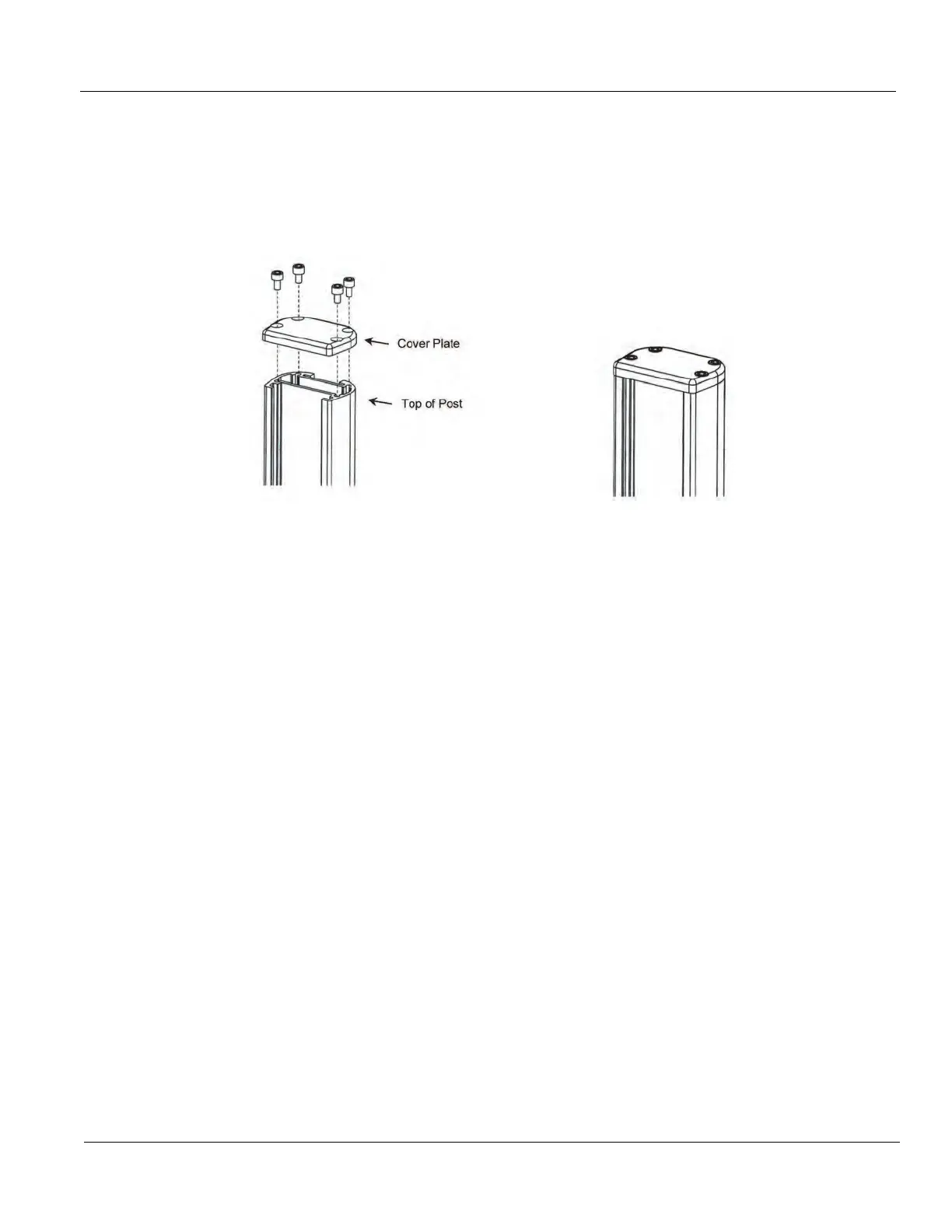

Figure 8-77 Cover Plate Installation
