GE LOGIQ E9

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 306 Section 8-12 - V Nav Roll Stand and/or On-Board Stand Installation and/or Replacement
8-12-2 Assembling or replacing the Roll Stand (cont’d)

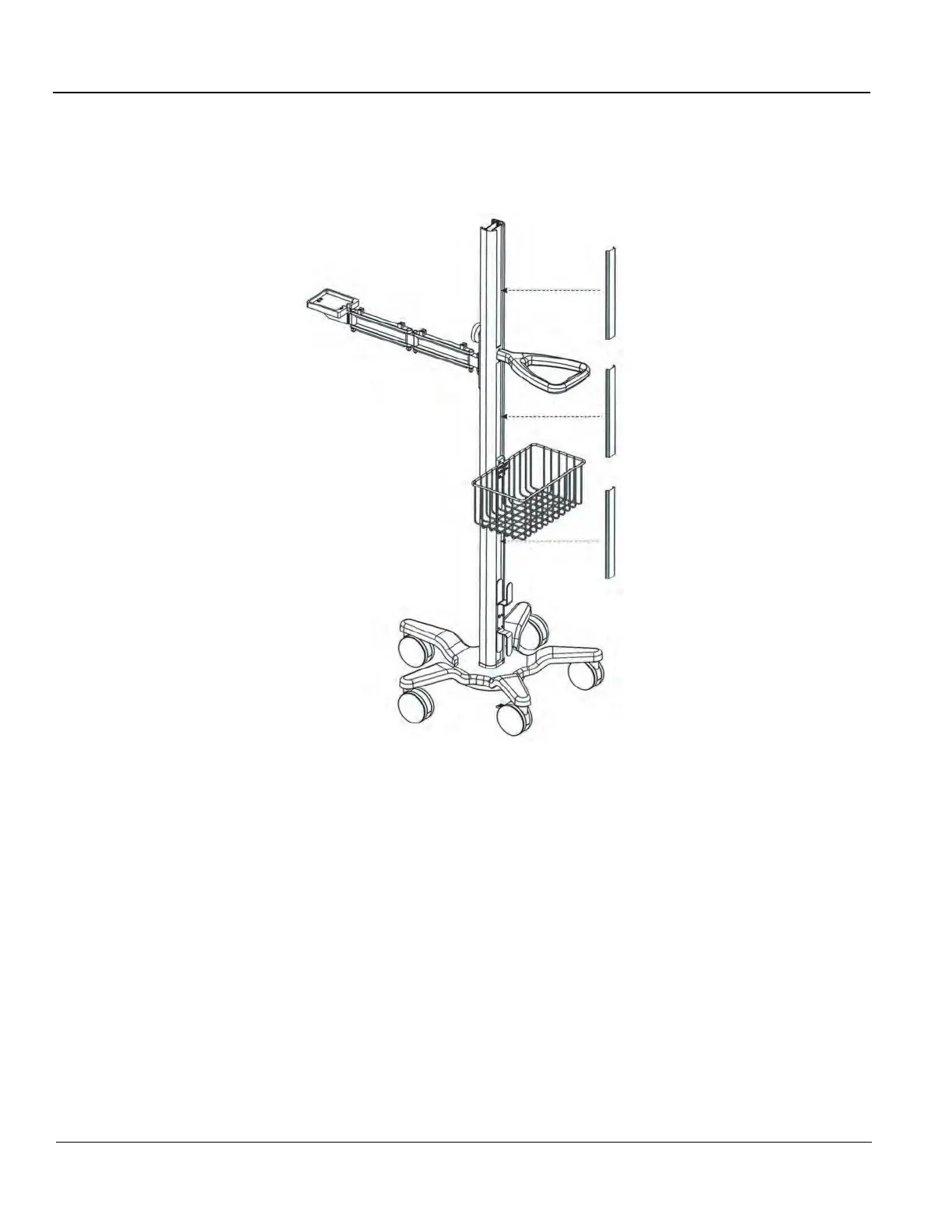

10.)Snap the three Rear Track Covers into place in locations shown.
Figure 8-78 Rear Track Covers Installation
