Chapter 8 Replacement procedures 8 - 313
7.

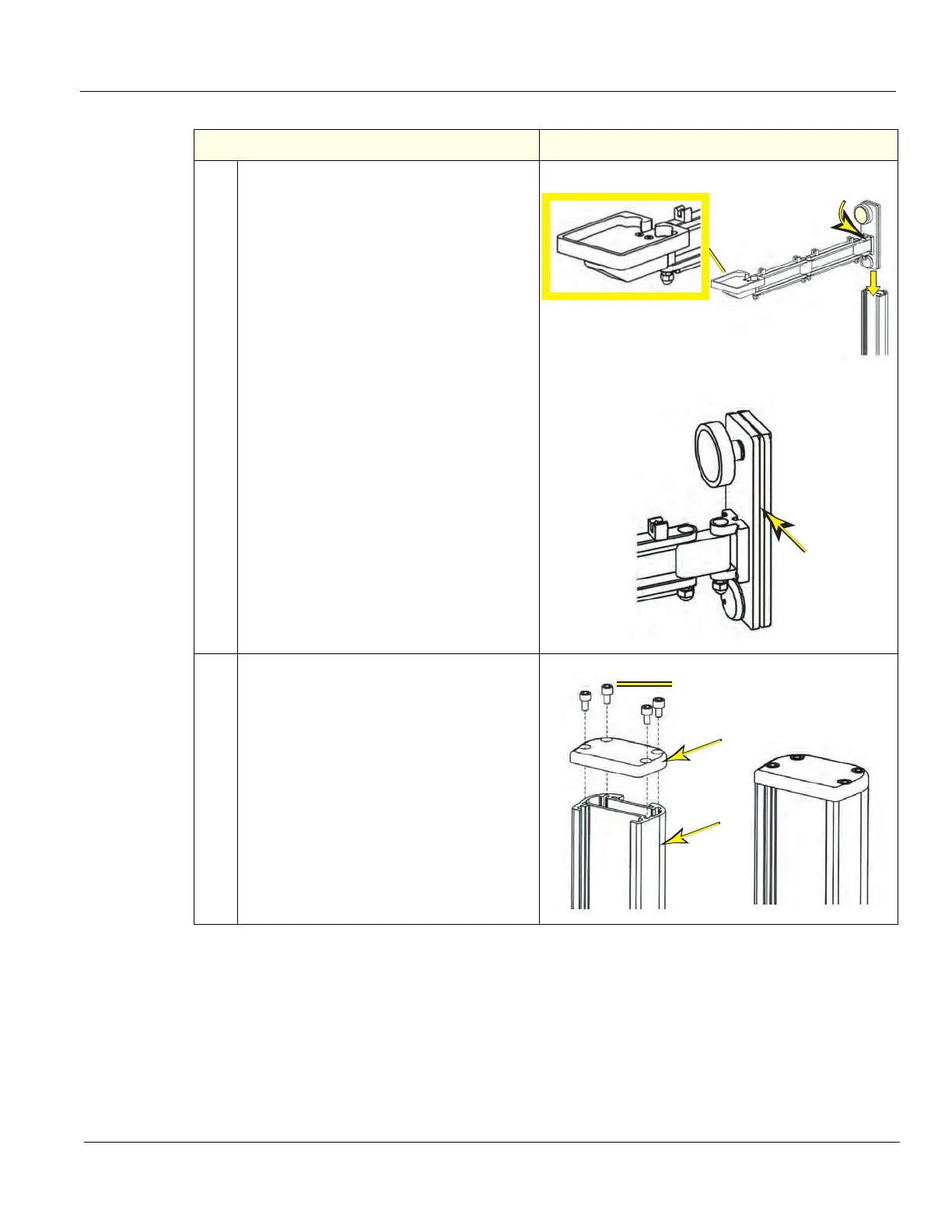

Loosen the knob slightly, guide the arm into
the channel and move it to the mounting
position.
NOTE: Make sure the Transformer Support
Platform is up, as shown. The channel fits
between the front and rear slide plates.
Tighten the knob to lock the arm into
position.
Loosening Knob
Channel Location
8.
Fasten the Cover Plate (2) to the top of the
post (1) with the four SHCS (3) as shown.
Repeat step for the bottom Cover Plate, if
not previously installed.
Table 8-193 Option Installation to LOGIQ E9
Steps
Corresponding Graphic
1
2
3
}
