Chapter 9 Renewal Parts 9 - 17
Section 9-8
Top Console parts
NOTE: Sub-FRUs for the Operator Panel have been created to provide additional sub-assemblies in
the event the entire Operator Panel does not require to be replaced. Refer to the Operator Panel
FRUS and for sub-FRU servicing options, see: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36.

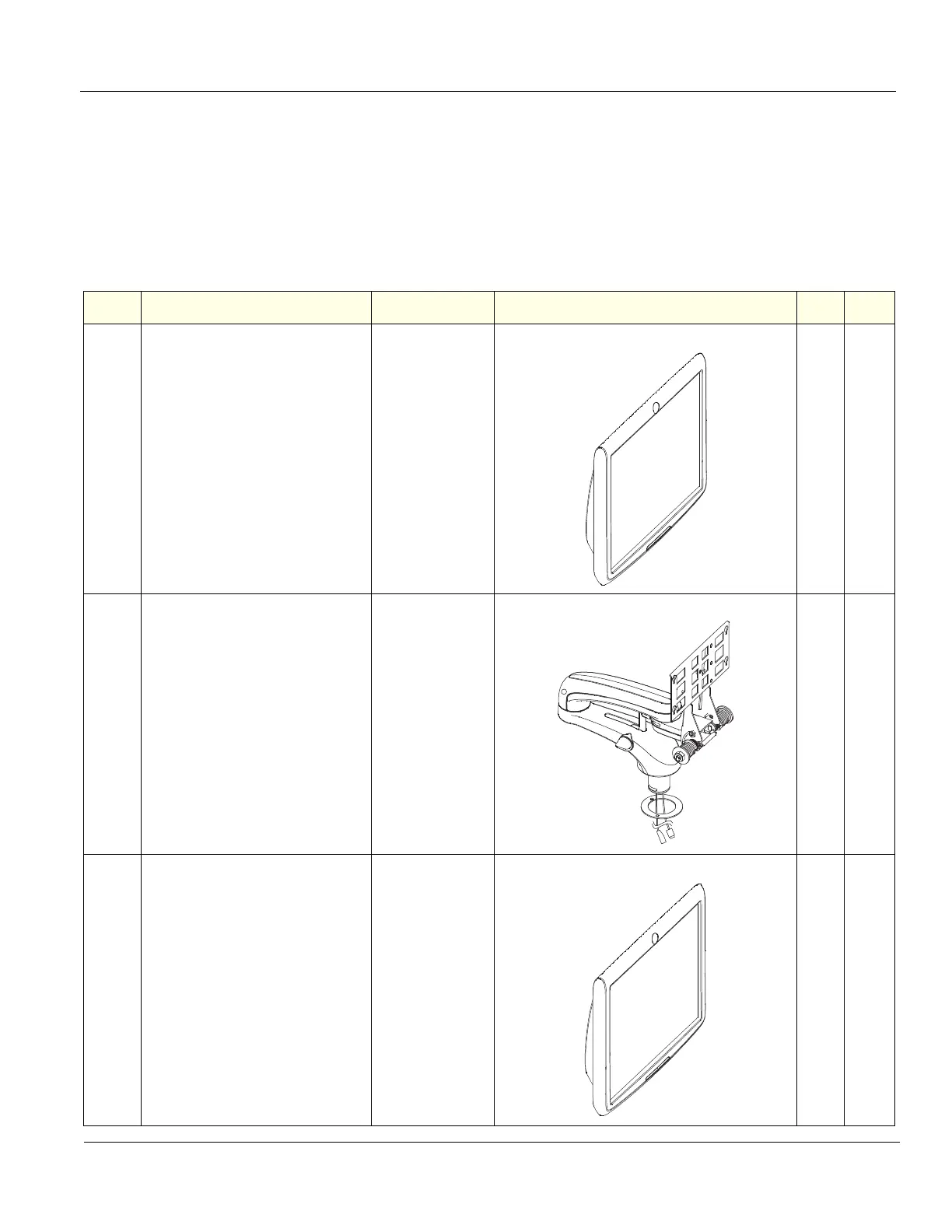

Table 9-11 Top Console parts 1 of 18
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
19” LCD Monitor
5205000-6 and earlier consoles
5167953 1Y
2.
LCD Arm with Cable
5205000-6 and earlier consoles
5183750 1Y
3.
19” LCD Monitor V2
5205000-7 and later consoles
LOGIQ E9 R4 or Upgraded
5392293-21 1Y
