GE LOGIQ E9

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

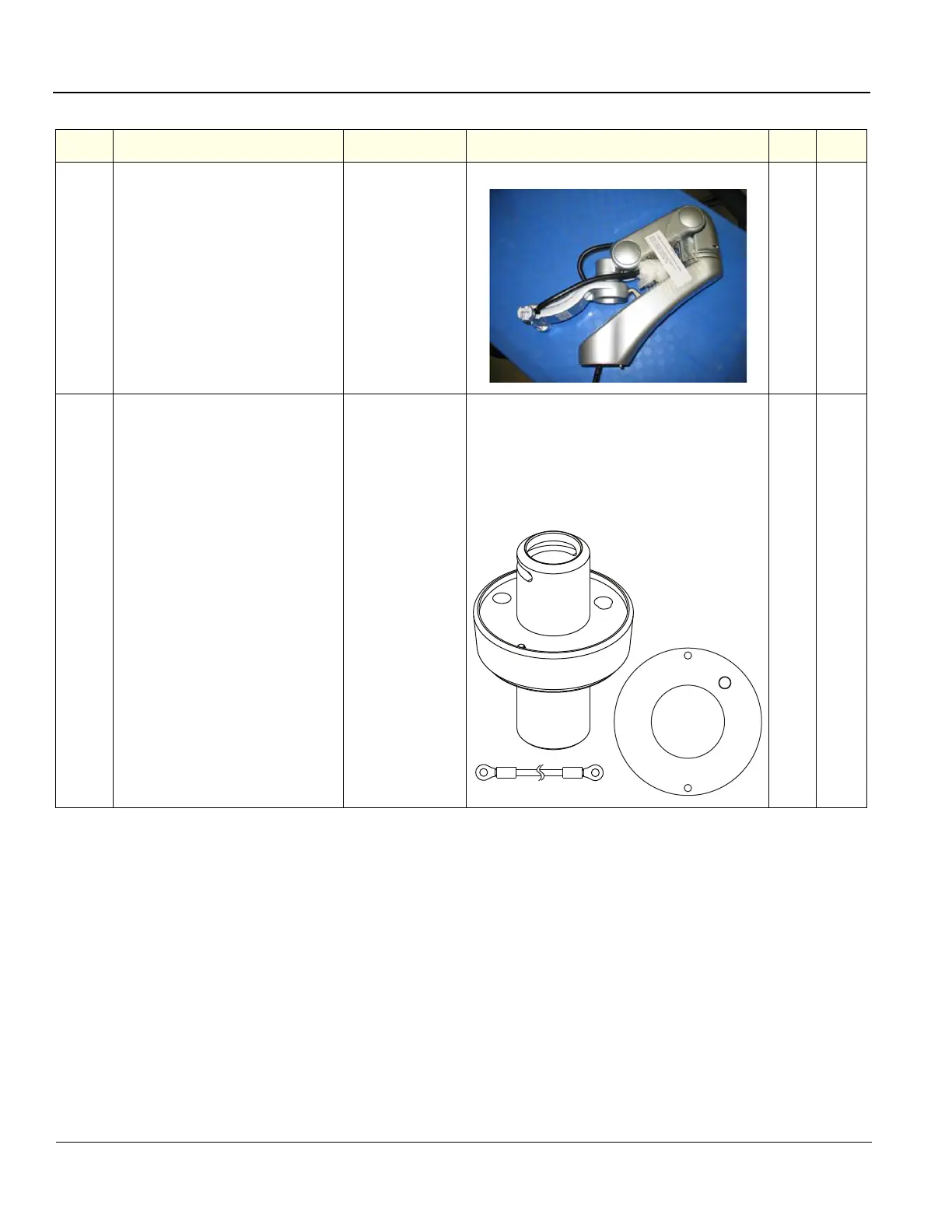

9 - 18 Section 9-8 - Top Console parts
4.
LCD Arm with Cable
LOGIQ E9 R4 and later consoles
5415182-20 1Y
5.
LOGIQ E9 LCD Arm
Adapter Spare Kit
5455428
Used on 5415182-20 Arm
1. LCD Arm Adapter - LOGIQ E9,
2. LCD Arm Neck Base Plate
3. Ground Lead - LOGIQ E9 LCD Arm Adapter
Hex Socket Head Cap Screw, M5-0.8, X50mm Long
External Toothed Lock Washer
Pan Head Machine Screw M4-0.7 X6mm Long
(hardware not shown)
1Y
Table 9-11 Top Console parts 2 of 18 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1
3
2
