IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 19

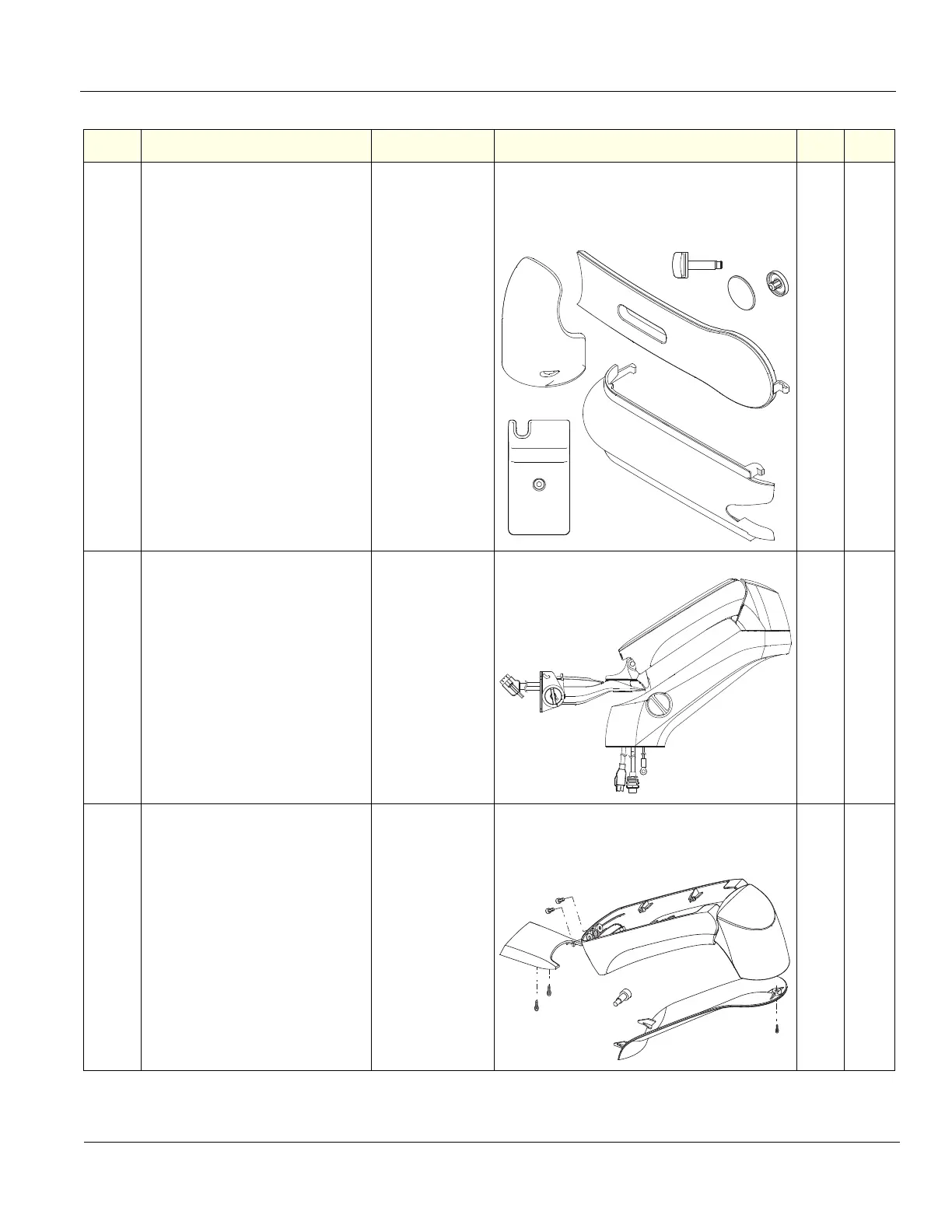

6.
LCD Arm Plastic Covers
5205000-7 consoles
5408089
Contains:
1. knob for lock (x1), 2. second Arm Cap (x4).
3. third Arm Cap (x1), 4. first Arm Cover (x1)
5. second Arm Cover (x1), 6. second Axis Cover (x1)
7. third Arm Cover (x1)
1Y
7.
Ultrasound Global LCD Arm -
LOGIQ E9 which has Adapter
5205000-8 and later consoles
5957000-110 1Y
8.
LCD Arm Plastic Covers
5205000-8 and later consoles
5957000-1
Contains:
1. Pan Arm Down Cover, 2. Lift Arm Cover - Right,
3. Lift Arm Cover - Left, 4. Joint Cover
5. Extension Arm Cover, 6. Rotation Limit Screw
1Y
Table 9-11 Top Console parts 3 of 18 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1
2
3
4
5
6
7
5423549....
1
3
2
4
5
6
