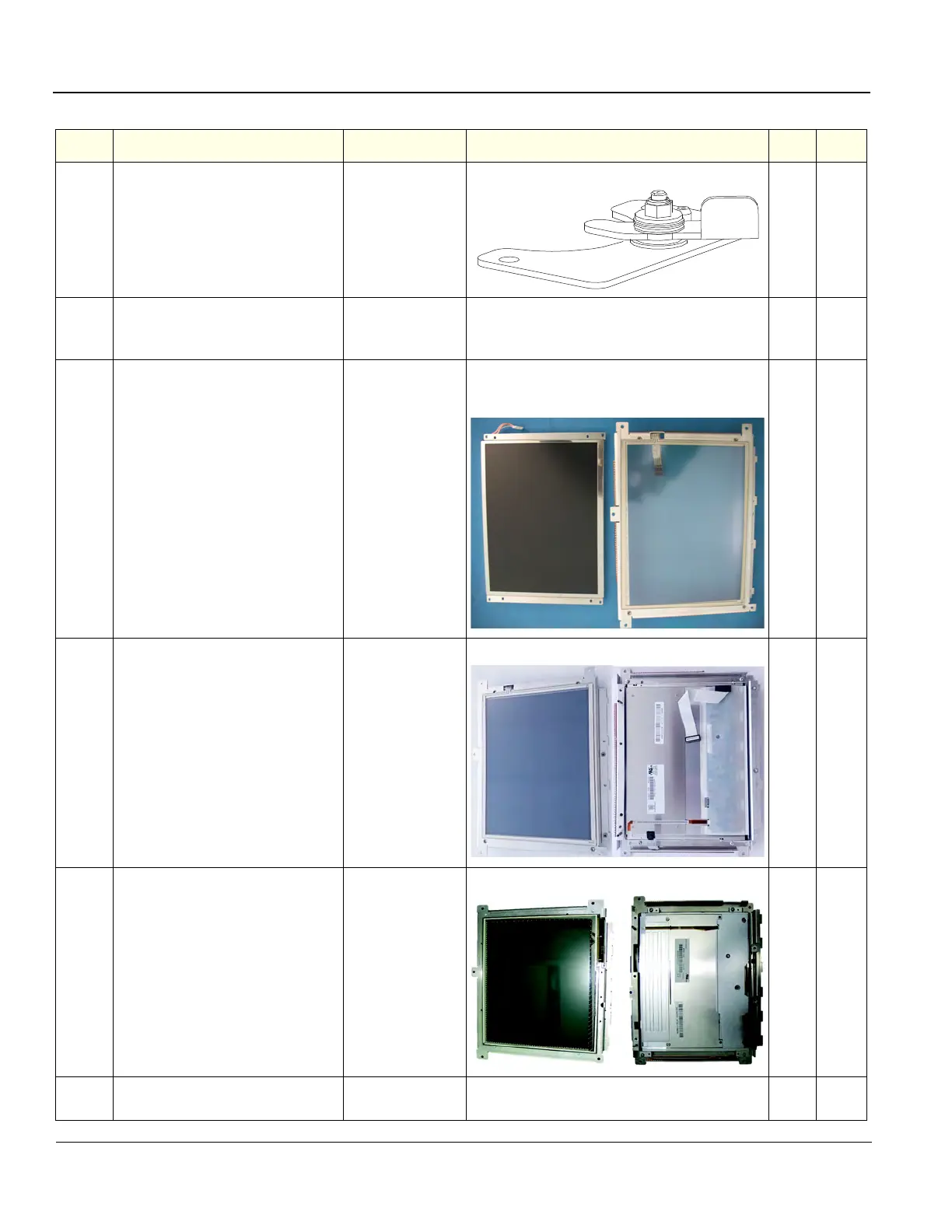

9 - 20 Section 9-8 - Top Console parts
9.
LCD Mount Lock Assembly GA200302 1Y
10.
Frame with LCD and TouchScreen
GA200439
OBSOLETE
Replaced by 5207000-33
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36
1Y
11.
Frame with LCD and TouchScreen 5207000-39
Replaces GA200439.
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36
1y
12.
Frame with LED Backlight LCD and
Touchscreen - Spare Part
5207000-65
See: Table 9-13
"Operator Panel
Compatible
Configurations" on
page 9-36
Front Rear
1y
13.
R5 LOGIQ E9 Upper Operator Panel
Frame and LCD Assembly
5497858-20
See: Table 9-13
"Operator Panel
Compatible
Configurations" on
page 9-36
Front Rear
1Y
14.
Operator Panel Assembly, Upper
5207000-3
OBSOLETE
Replaced by 5207000-33 1 Y
Table 9-11 Top Console parts 4 of 18 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
