IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 21
15.
Operator Panel Assembly, Upper
5207000-13
OBSOLETE
Replaced by 5207000-33
Included GA200717 Aux. USB Connector board and
GA200718 Main Controller board.
1Y
16.
Operator Panel Assembly, Upper
5207000-23
OBSOLETE
Replaced by 5207000-33
5207000-23 replaced 5207000-3, 5207000-12 and
5207000-17.
Included GA200717 Aux. USB Connector board and
GA200718 Main Controller board. Capacitors
changed to address false USB overcurrent trip.
1Y
17.
Operator Panel Assembly, Upper 5207000-33
Replaced by 5207000-43
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36
.
1Y
18.
Operator Panel Assembly, Upper 5207000-43
Replaced by 5207000-53
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36
.
1Y
19.
High Voltage Inverter Board with Cable
(Upper Operator Panel)
5207000-6
Replaces GA200442 on 5207000-33 Op Panel -
Upper or later
See: Table 9-14 "Upper Op Panel FRUs Compatible
Configurations" on page 9-37
1Y
20.
LOGIQ E9 OP Panel Upper - SMC
HUB and ERG Inverter
5207000-53
Replaces 5207000-43
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36
.
1Y
21.
LOGIQ E9 R5 Upper Operator Panel 5209000-1
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36
.
1Y

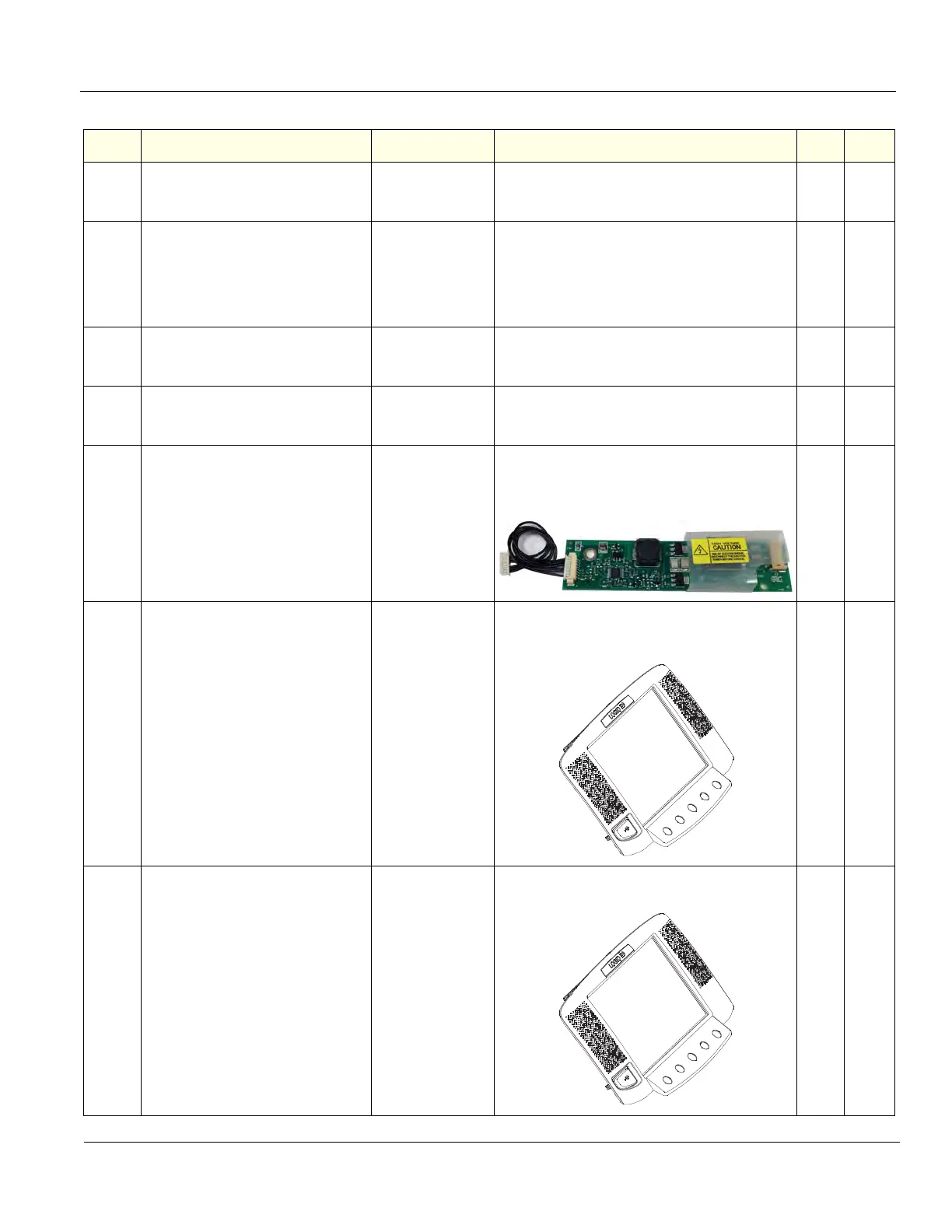

Table 9-11 Top Console parts 5 of 18 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
