Chapter 9 Renewal Parts 9 - 23
29.

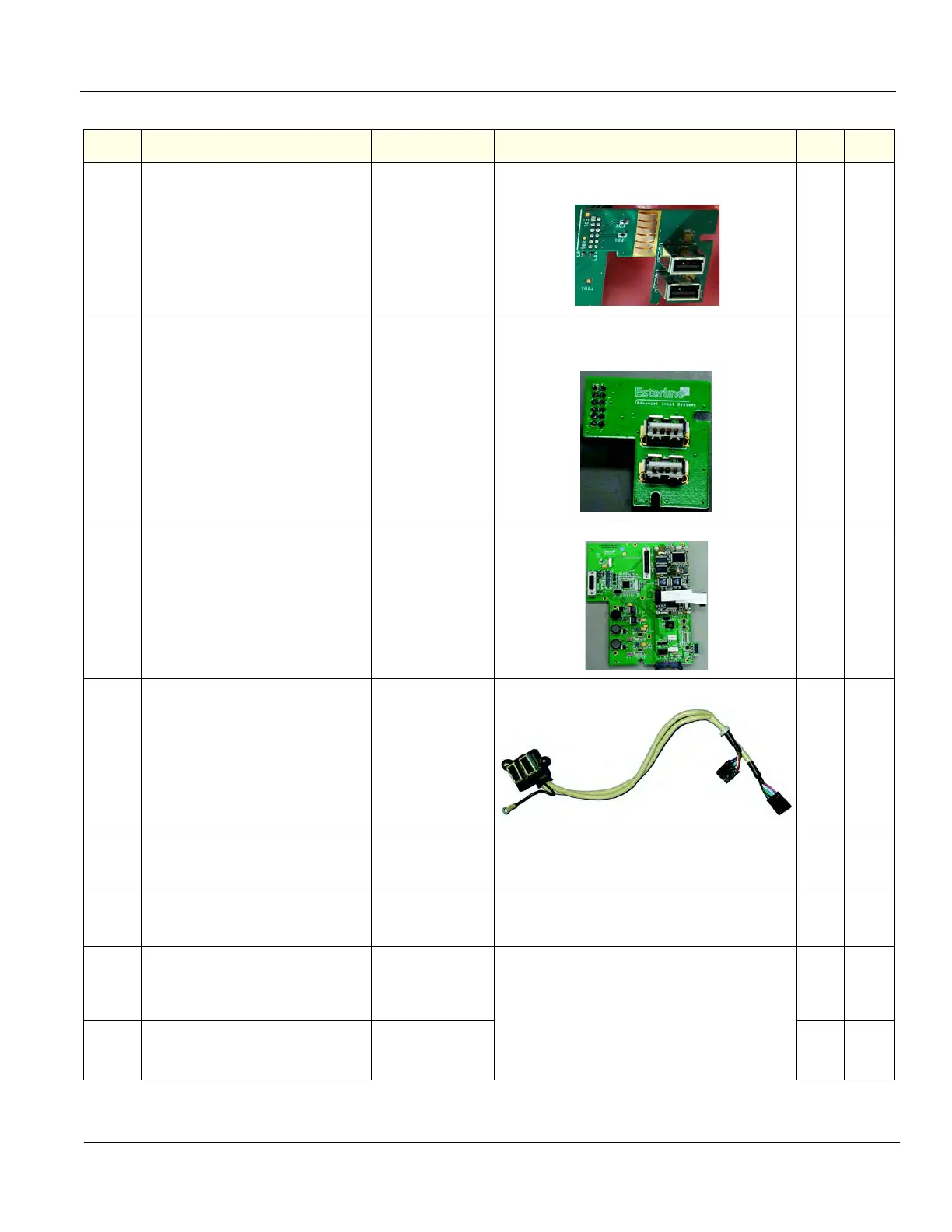

USB Connector Board
(Upper Operator Panel)
5207000-41
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36.
1Y
30.
USB Connector Board
with longer pins
(Upper Operator Panel)
GA200717
Use with GA200717 for connection improvement.
GA200717 can be used with GA200448,
but will not improve connection.
1Y
31.
Main Ctrl. Board w. USB
Video Bd. and Cable
(Upper Operator Panel)
GA200448 1Y
32.
R5 LE9 Upper Operator Panel
Customer USB Port Cable Assembly
5497858-30 1Y
33. Main Ctrl. Board w. USB
Video Bd. and Cable
(Upper Operator Panel)
GA200718
Use only with USB Connector Board GA200717.
(GA200441 will not work)
Replaced by 5207000-30
1Y
34. Main Ctrl. Board w. USB
Video Bd. and Cable
(Upper Operator Panel)
5207000-30
OBSOLETE
Has USB over current fix.
(Replaces GA200718)
1Y
35. Main Ctrl. Board with USB
Video
Board and Cable
(Upper Operator Panel)
5207000-40
Replaces 5207000-30
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36.
1Y
36. Main Ctrl. Board with USB
Video Board and Cable
(Upper Operator Panel)
5207000-50 1Y
Table 9-11 Top Console parts 7 of 18 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
