IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
9 - 24 Section 9-8 - Top Console parts
37.
Main Ctrl. Board with USB
Video Board and Cable
(Upper Operator Panel)
5207000-40
Replaces 5207000-50
Also includes 5207000-41 USB Auxiliary Board
Replaced by 5207000-60
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36.
1Y
38.
Main Board with SMC HUB - Video
Board with zero ohm R - Video Cable -
USB Aux Board
5207000-60
Replaces 5207000-50
1Y
39. R5 LE9 Upper Operator Panel
Main Control Board
(include USB Cables
to user USB Ports)
5497858-10 1Y
40.
Frame UI Upper Assembly GA200392 1Y
41.
Operator Panel Assembly, Lower
5207000-2
OBSOLETE
Replaced by 5207000-12 1 Y
42. Operator Panel Assembly, Lower with
Improved Trackball
5207000-12
OBSOLETE
Replaced by 5207000-32 1 Y
43.
Operator Panel Assembly, Lower
Without Trackball
5207000-32
OBSOLETE
Remove existing trackball from removed lower panel
and install into the new assembly.
(Second opinion required.) To become obsolete. If
unavailable, order 5207000-42
1Y
44. Operator Panel Assembly, Lower
Without Trackball
5207000-42 Obsolete replaced by 5207000-52 1 Y
45.
Operator Panel Assembly, Lower
Without Trackball
5207000-52
Similar to 5207000-42 except includes
VALOX Bezel
Replaced by 5207000-62
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36.
1Y
46. Operator Panel Assembly, Lower
Without Trackball
5207000-62
See: Table 9-13 "Operator Panel Compatible
Configurations" on page 9-36.
1Y

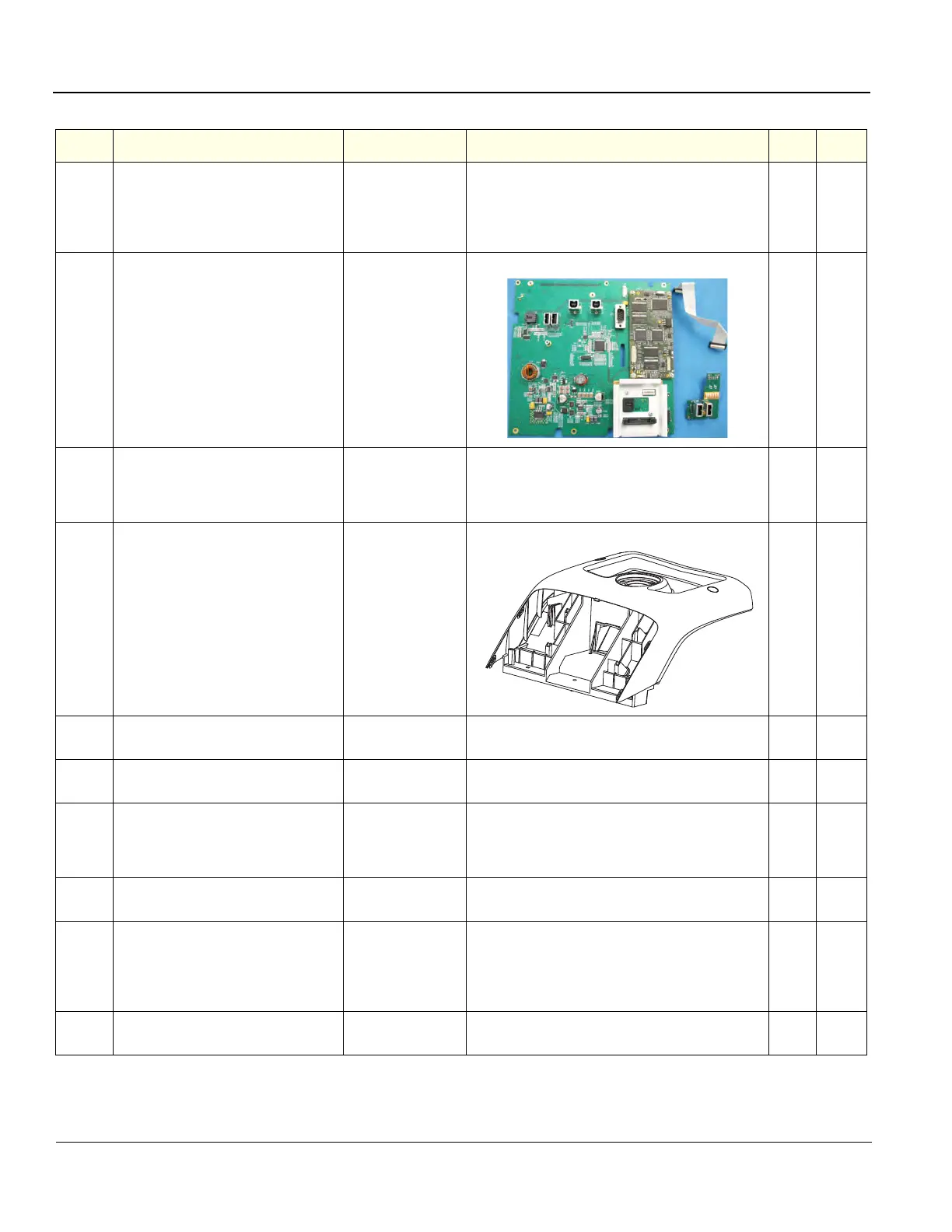

Table 9-11 Top Console parts 8 of 18 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
