IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

Chapter 9 Renewal Parts 9 - 27

62.

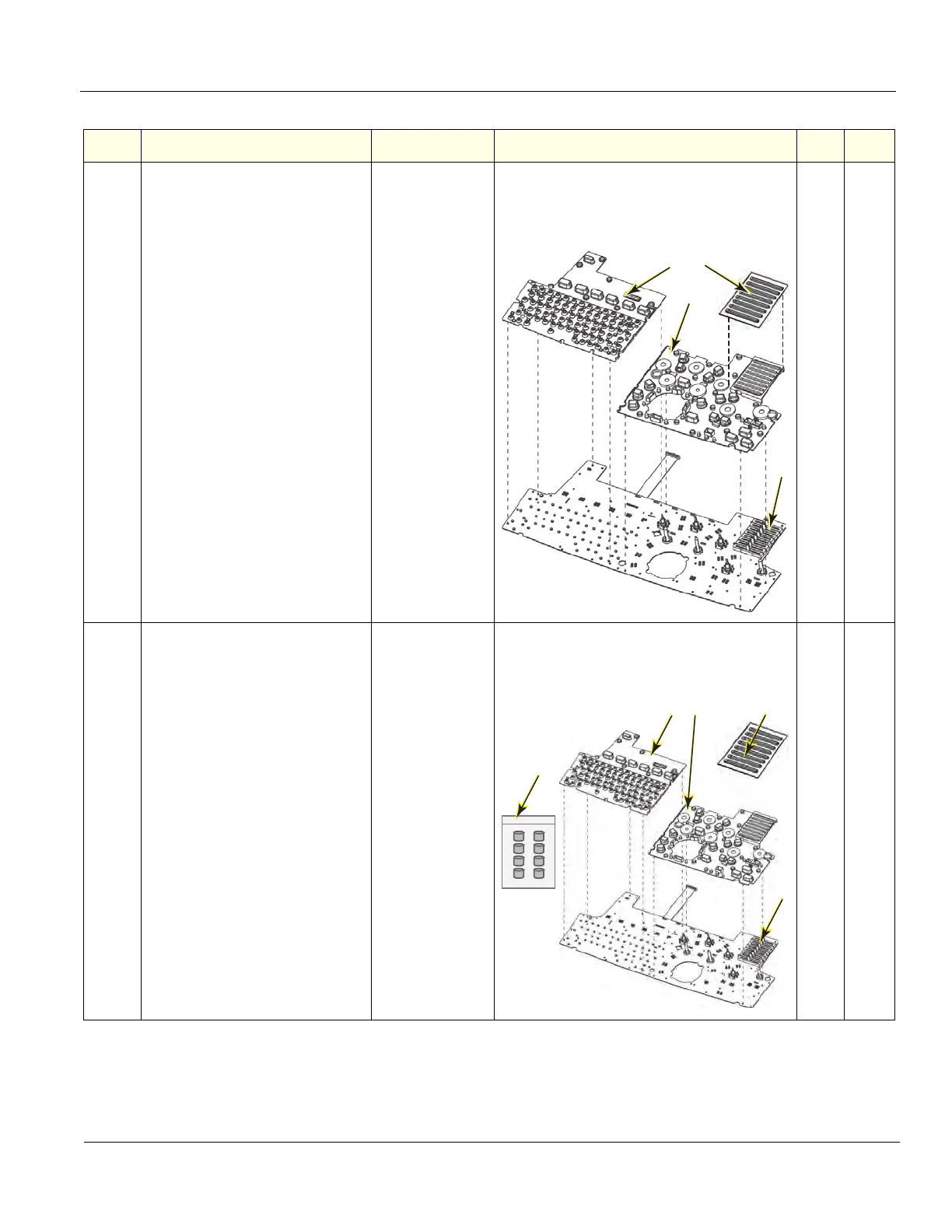

Lower Operator Panel Main-board

(improved)

5207000-28

Includes 1 - Left Elastomer,

2 - 5207000-55 - TGC Slide Pots Dust Gasket,

3 - Right Elastomer, and

4 - Switch PCB (version with reduced LED number)

Replaced by 520700-38

63.

LE9 Lower Circuit Board for

OP Panel - Bourns Slide Pots - spare

part only

5207000-38

See: Table 9-13

"Operator Panel

Compatible

Configurations" on

page 9-36.

Includes 1. Left Elastomer,

2. Right Elastomer, 3. Slide Pot Gasket,

4. Switch, PCB and

5. BOURNS compatible Slide Pot knobs (x8)

Table 9-11 Top Console parts 11 of 18 (Continued)
