IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

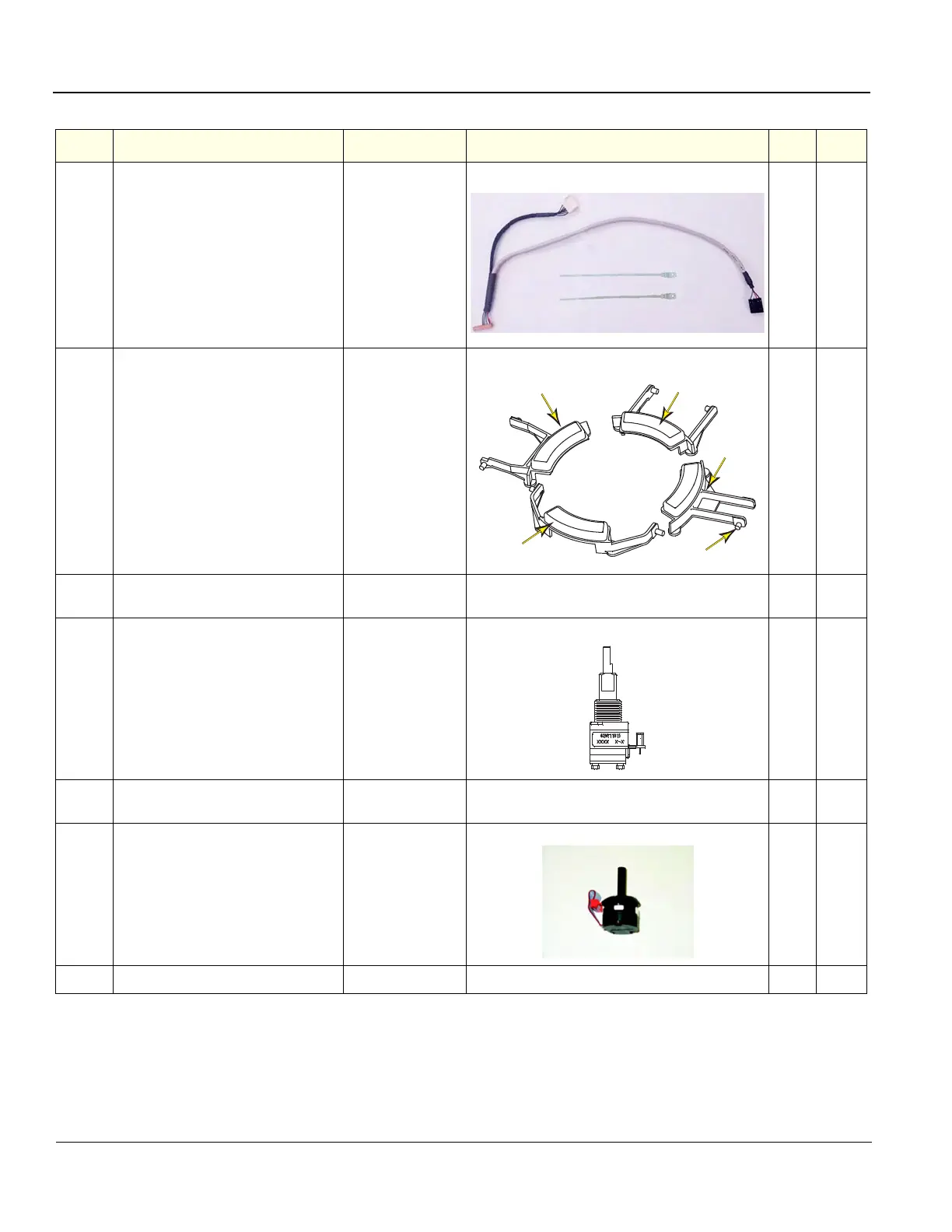

9 - 26 Section 9-8 - Top Console parts
55.
Removable Trackball Interface
Cable and Straps
5207000-84
56.
LOGIQ E9 Trackball Keys
A - Trackball Key, Bottom
B - Trackball Key, Left
C - Trackball Key, Top
D - Trackball Key, Right
E - Trackball Key, Pivot Points
5207000-80
57.
Concentric Encoder
2404652-19
OBSOLETE
Replaced by 5207000-85 4 Y
58.
Encoder, Concentric Shaft with 0-ring 5207000-85
for Operator Panel
4Y
59.
Joystick Encoder
5207000-17
OBSOLETE
for Operator Panel 8 Y
60.
Joystick Encoder 5207000-29
Replaces 5207000-17
8Y
61. Lower Operator Panel Main-board 5207000-18 Obsolete replaced by 5207000-28 1 Y
Table 9-11 Top Console parts 10 of 18 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
B
A
C
D
E
