GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
9 - 42 Section 9-10 - Main Console parts
Section 9-10
Main Console parts

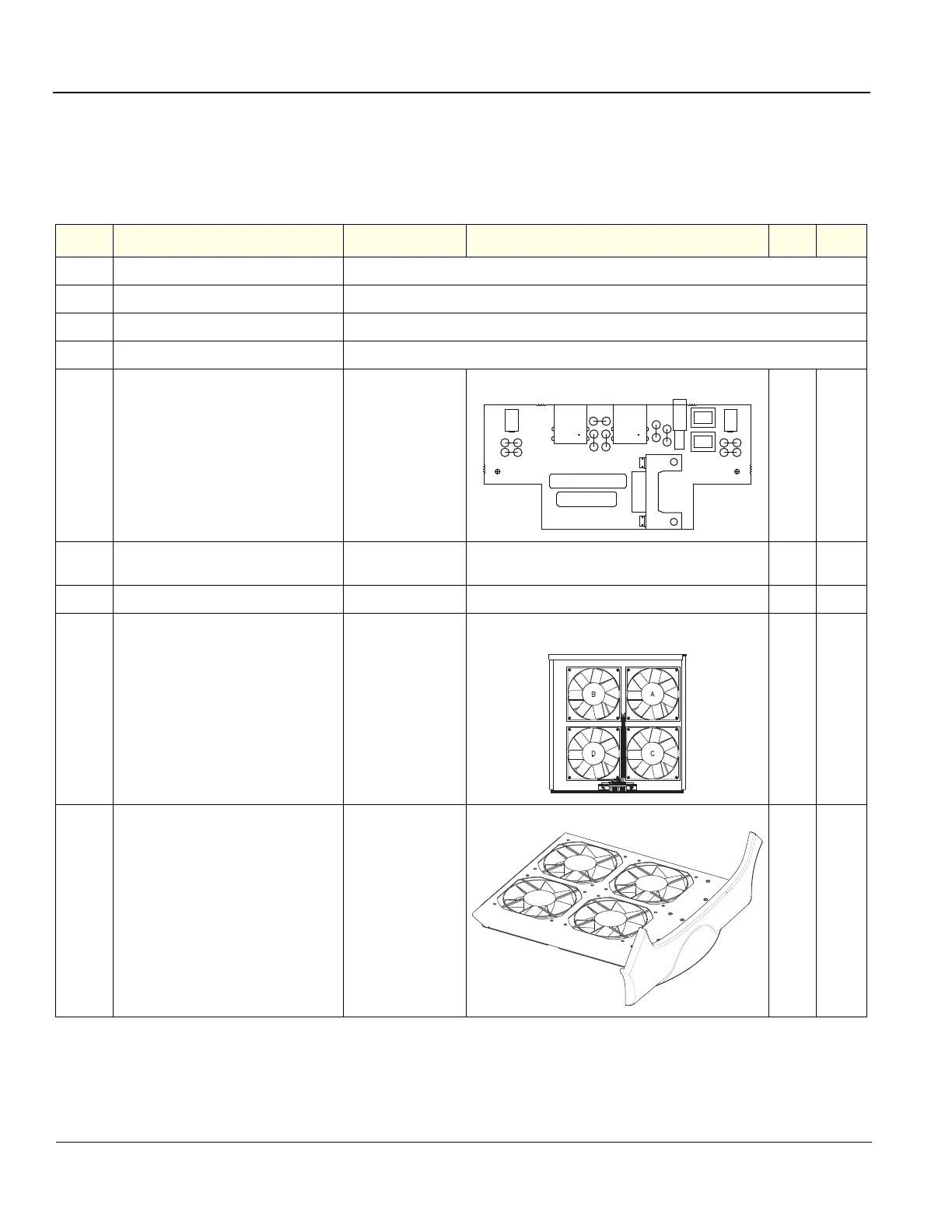

Table 9-17 Main Console parts 1 of 3
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1. Back End Processor Parts See: Section 9-13 "Back End Processor (BEP) parts" on page 9-64.
2. Front End Processor Parts See: Section 9-12 "Card Rack parts" on page 9-48.
3. Casters See: Section 9-11 "Casters (Wheels) parts" on page 9-46.
4. Covers See: Section 9-7 "Covers and Bumpers" on page 9-9.
5.
Bulkhead Board Assembly GA200290 1Y
6. Bulkhead Board Assembly
RoHs compliant
5482676 1Y
7. Fan Tray Assembly - Card Rack 5141940 Replaced by 5141940. 1 Y
8.
Fan Tray Assembly - Card Rack 5394406
Replaced 5141940
1Y
9.
Fan Tray and Filter Assembly
Removable Fan Tray
5394406-2 1Y
Consession :
1
8
P2
BAR-CODE
L2 L1
L9
L3
L6
L7
P8
P7
1
2
P5
1
2
P6
L8
1
2
P1
1
69
5
P4
L4
L5
MODULE NAME S/N :
P/N: NNxxxxxx-xx
8
1
P2

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
