GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
9 - 64 Section 9-13 - Back End Processor (BEP) parts
Section 9-13
Back End Processor (BEP) parts
There are two main families of BEPs used on the LOGIQ E9; BEP5.x supported in R3.x and earlier and
BEP6.x supported in R4 and later. See: Table 9-27 "Back End Processor parts for R3.x and earlier" on
page 9-64 and Table 9-28 "Back End Processor parts for R4.x and later" on page 9-68.
For Back End Boards compatible configurations, see 9-13-1 "Back End Boards Compatible
Configurations" on page 9-71.

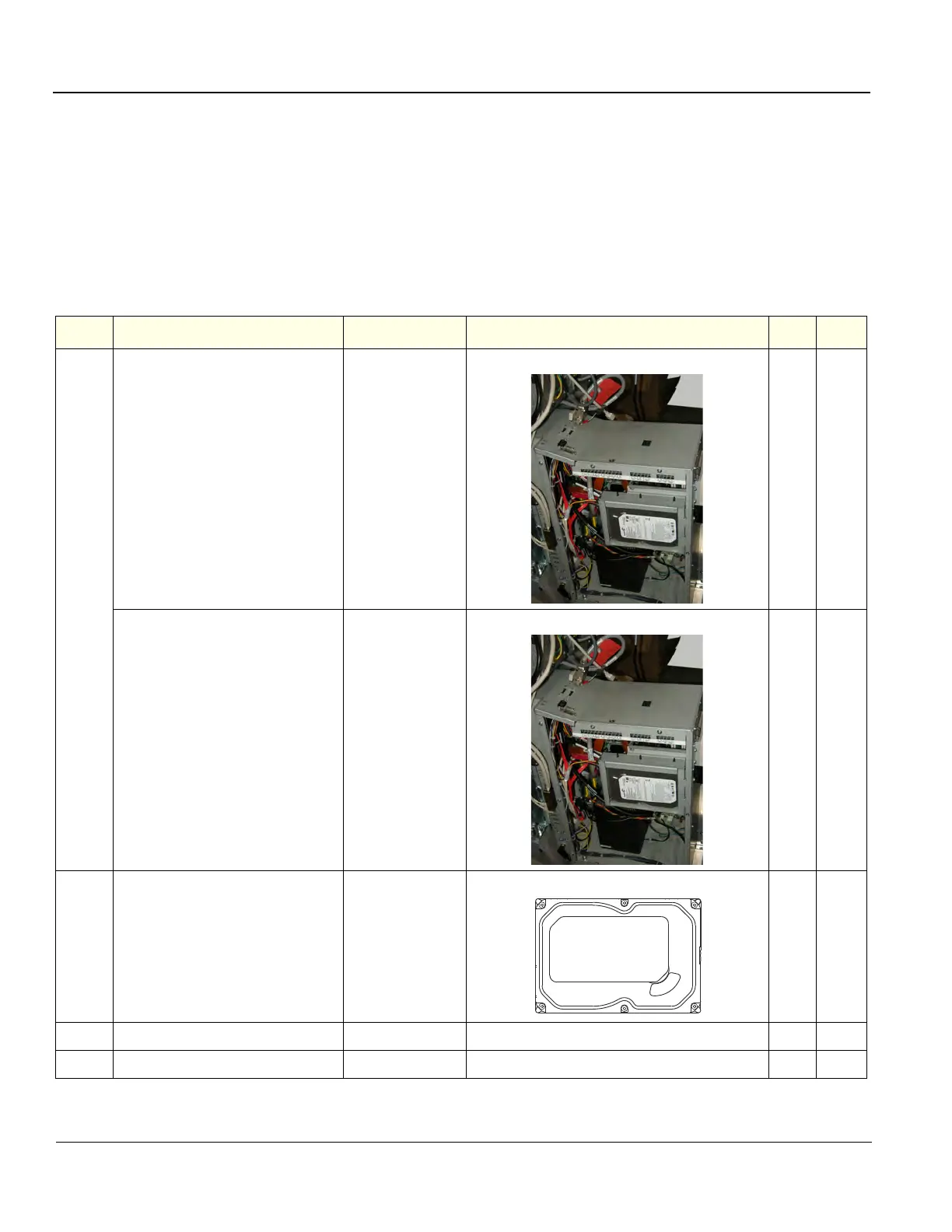

Table 9-27 Back End Processor parts for R3.x and earlier 1 of 4
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
BEP with Extended Power Shutdown
R2.x.x and earlier
5145000-2 1Y
BEP with Extended Power Shutdown -
MRX
5145000-3 1Y
2.
HDD (Hard Disk Drive)
ST250DM0000 250GB
5215286-3
Replaces by 5215286-2
1Y
3. Hard Drive 5215286-2 Replaced by 5215286-3 1 Y
4. BEP PS 5393800-2 Replaced by 5393800-3 1 Y
