GE LOGIQ E9

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 79
9-15-2 Digital Video Disc (DVD) Drive
NOTE: When ordering the DVD Assembly replacement, YOU MUST VERIFY what software the
LOGIQ E9 is running and if the DVR Option is present BEFORE deciding what part number is
appropriate.

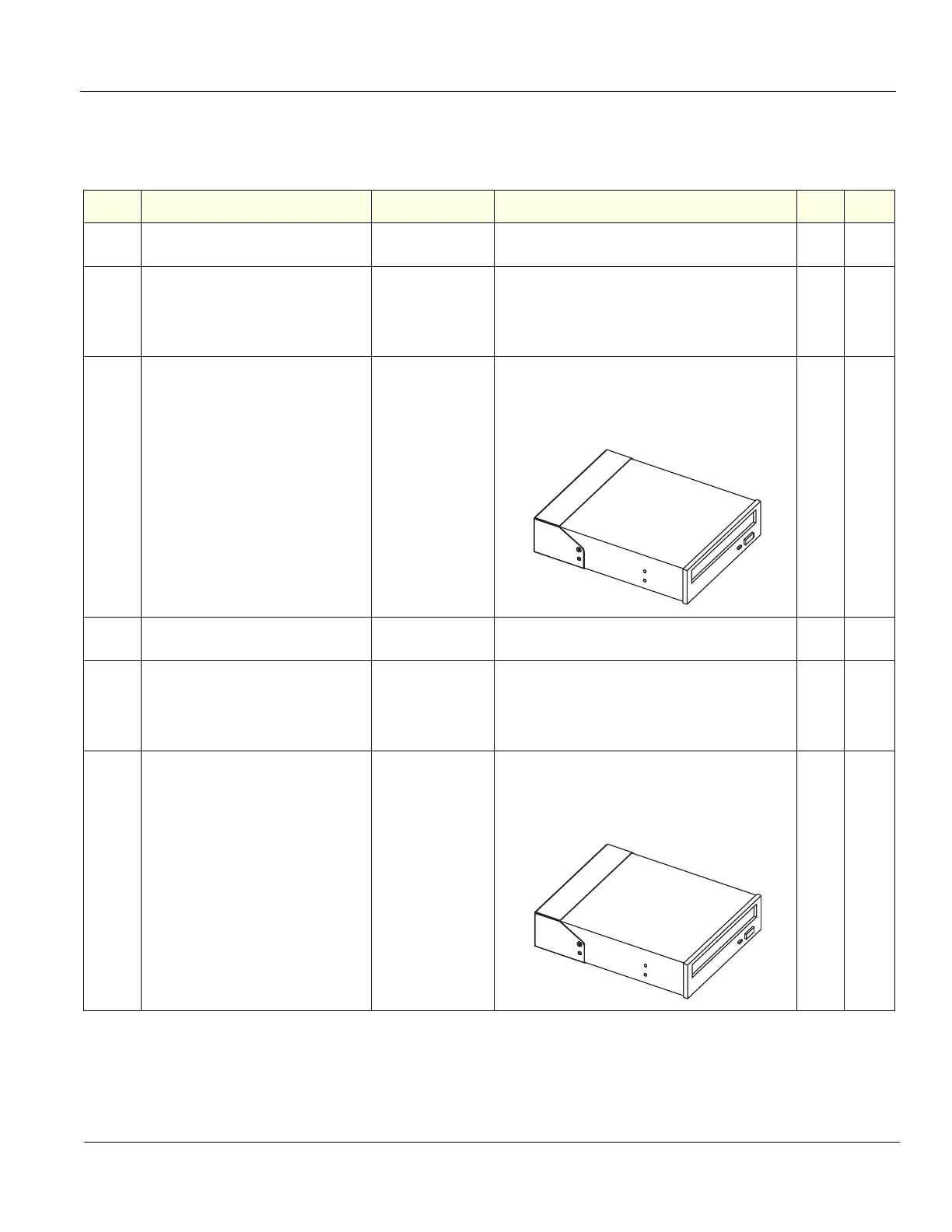

Table 9-32 Digital Video Disc (DVD) parts
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1. DVD-CDRW Drive Assembly
5205000-5 and earlier consoles
5305921
Replaced by 5305921-3 or 5305921-5
Power and SATA separate cables
1Y
2.
DVD Assembly, LOGIQ E9 - DVR
Compatible
5305921-3
Replaces 5305921
Power and SATA separate cables
See: Table 9-33 "DVD FRUs Description and" on
page 9-80 and Table 9-34 "DVD to DVR
Compatibility" on page 9-80.
1Y
3.
DVD Assembly, LOGIQ E9 - not DVR
Compatible
5305921-5
Replaces 5305921
Power and SATA separate cables
See: Table 9-33 "DVD FRUs Description and" on
page 9-80 and Table 9-34 "DVD to DVR
Compatibility" on page 9-80.
1Y
4.
LE9 DVD Drive ASSEMBLY - R4 5305921-2
Replaced by 5305921-4 or 5305921-6
Power SATA in one cable
1Y
5.
DVD Assembly, LOGIQ E9 R4 - DVR
Compatible
5305921-4
Replaces 5305921-2
Power SATA in one cable
See: Table 9-33 "DVD FRUs Description and" on
page 9-80 and Table 9-34 "DVD to DVR
Compatibility" on page 9-80.
1Y
6.
DVD Assembly, LOGIQ E9 R4 -
not DVR Compatible
5305921-6
Replaces 5305921-2
Power SATA in one cable
See: Table 9-33 "DVD FRUs Description and" on
page 9-80 and Table 9-34 "DVD to DVR
Compatibility" on page 9-80.
1Y
