IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 87
9-17-2 XYZ Controller cables

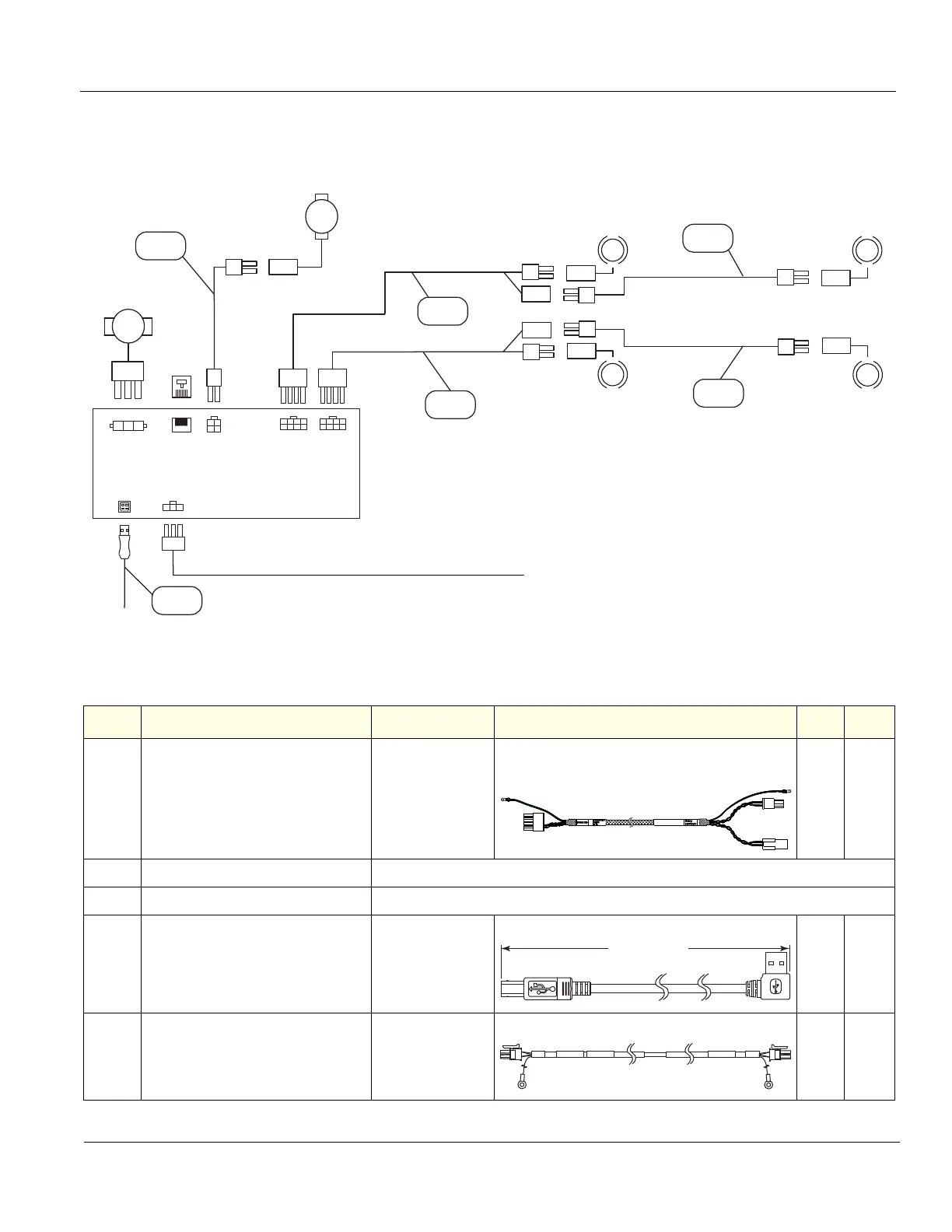

Figure 9-6 XYZ Controller cables
Table 9-38 XYZ Motor/Brake Control cables
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
Frog Brake Control GA200335
Cable B
(XYZ Motor Brake Control > Frog Brakes)
2Y
2. Cable, Power Cable - BEP 48V Cable B, See: Table 9-39 "Main Power Supply Cables" on page 9-89
3. Cable, Power Cable - BEP 48V Cable I, See: Table 9-39 "Main Power Supply Cables" on page 9-89
4.
Cable, BEP to XYZ Motor Controller 5194492-6
Cable L, USB Cable (J25 - XYZ Controller)
1Y
5.
Cable, XY-Lock 5310448
Cable T, XY Lock
1Y
XYZ CONTROLLER
Z MOTOR
48V
L
FROG BRAKES
INNER
LEFT BRAKE
INNER
RIGHT BRAKE
OUTER
RIGHT BRAKE
OUTER
LEFT BRAKE
X-Y
LOCK
MOTOR
B
C
C
B
T
+48 VDC from Main Power Supply
On systems running R2.0.3 or earlier, Option Key was
installed into J25 and these systems have no Cable L.
BEP J25
XYZ MOTOR CONTROL
5194492-6
(620 mm)
MOTOR CTRL 5310448.... XY LOCK
