GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 101
5.
Cable, USB Cable - BW Printer
Used with the Printer Bracket in
Shear Wave Option
5194492-10
Cable Q
(J26 - BW Printer)
1Y
6. Cable, Power Cable - BW Printer 5194493
Cable R
AC Power BW Printer
1Y
7.
Cable, V Nav, Baybird Power 5244550
Cable Y
1Y
8.
Cable - V Nav, USB BEP to BayBird 5194492-3
Cable Z
1Y
9.
Ferrites (used in DVR Option) 5324370 2Y

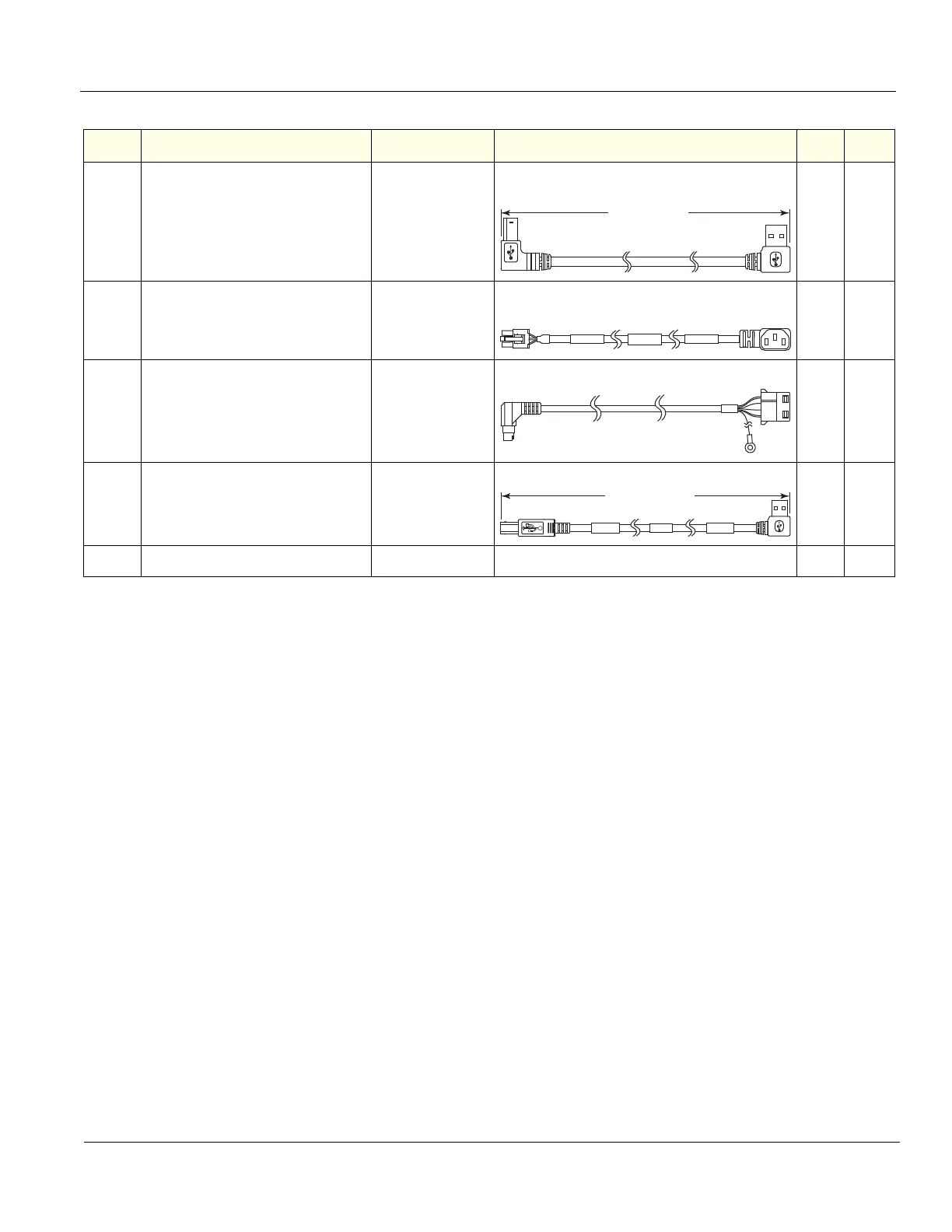

Table 9-45 Peripherals Cables
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
BW PRINTER ON TRAY BEP J28
5194492-10...........
(860 mm)
BW PRINTER
MAIN PWR SUPPLY
AC OUT
BEP J29-J32 BAYBIRD POWER
5244550 REV
BEP J27
BAY BIRD
(1060 mm)

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
