GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
3 - 18 Section 3-6 - Completing the setup
3-6-4 Connections on the I/O Rear Panel
NOTE: Accessory equipment connected to the analog and digital interfaces must be certified according
to the respective IEC standards (e.g. IEC60950 for data processing equipment and IEC60601-
1 for medical equipment). Furthermore, all complete configurations shall comply with the valid
version of the system standard IEC60601-1-1. Everybody who connects additional equipment
to the signal input part or signal output part of LOGIQ E9, configures a medical system, and is
therefore responsible that the system complies with the requirements of the valid version of
IEC60601-1-1. If in doubt, consult the technical service department or your local representative
for GE Healthcare.
3-6-4-1 Connect Ethernet
Connect the Ethernet cable to the Ethernet connector (3) on the External I/O (rear side of LOGIQ E9).

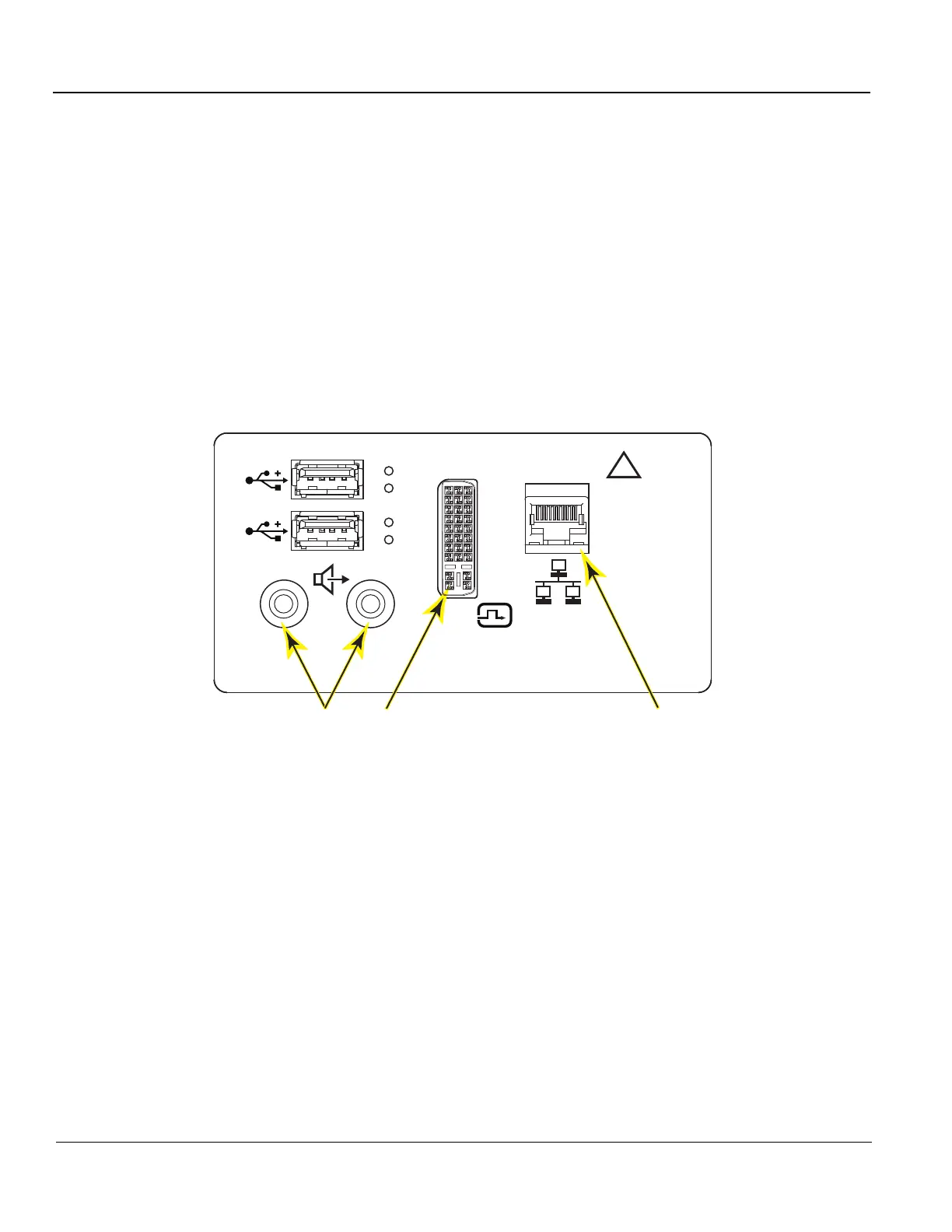

Figure 3-7 Ethernet, Audio (1) and DVI-I (2) connection for External Monitor on
rear side of LOGIQ E9 - R3.x and earlier
!
RL
5180173 revx
132

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
