IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
3 - 20 Section 3-6 - Completing the setup
3-6-5 Connections on the Patient I/O panel
3-6-5-1 Connect ECG
Refer to Chapter 10 in the Basic User Manual for more information.
3-6-6 Connecting Probes
3-6-6-1 Introduction to Connecting Probes
Probes can be connected at any time, whether the unit is on or off.
R3.x and earlier LOGIQ E9s have two types of probe ports: one non-DLP probe port and three DLP
probe ports (Figure 3-10). R4.x and later LOGIQ E9s have one type of probe ports: four DLP probe ports
(Figure 3-9).
The non-DLP probe port is compatible with the S1-5, S4-10, 6Tc (TEE probe), and 3CRF probe
connectors.
The three DLP probe ports are specific to the LOGIQ E9 probe connectors.
R4.x and later LOGIQ E9s have one type of probe ports: four DLP probe ports (Figure 3-10).

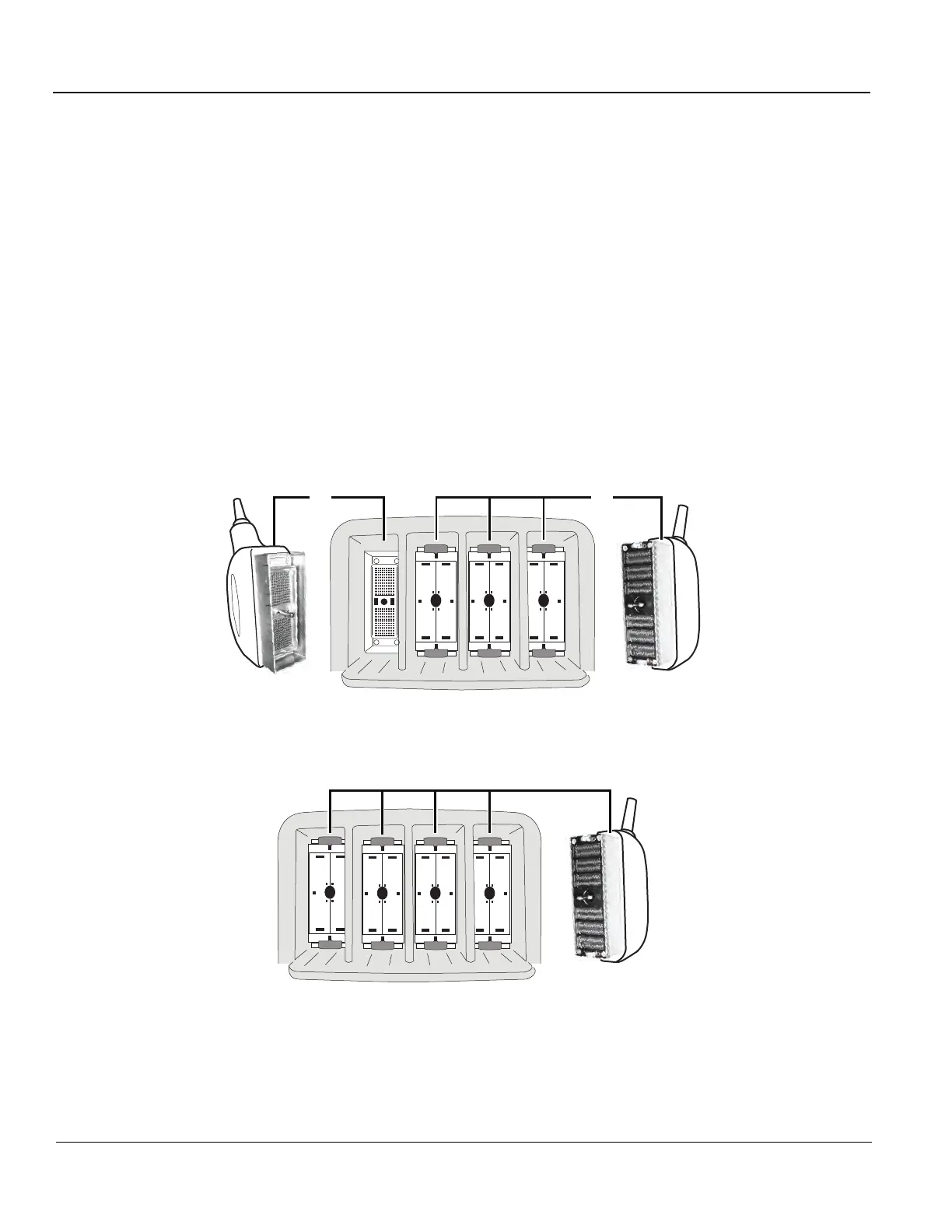

Figure 3-9 Probe connectors - (1) Non-DLP and (2) DLP Probe Port - R3.x and earlier
Figure 3-10 Probe connectors, four DLP Probe Ports - R4.x and Later
1
2
