GE LOGIQ V1 Basic Service Manual

General Procedures and Functional Checks
4-6 LOGIQ V2/LOGIQ V1 – Basic Service Manual
5610739-100 English Rev.10
Connect AC (mains) Power to LOGIQ V2/LOGIQ V1
Lower the handle. Plug the AC adapter output connector into the
system DC input port (located on the system’s rear panel) with
the arrow side upward. Plug the AC adapter power cord into a
grounded, protective earth outlet.
After AC/DC is connected correctly to the scanner, the power is
applied to the scanner. When the Power On/Off key is pressed
once, the System starts.

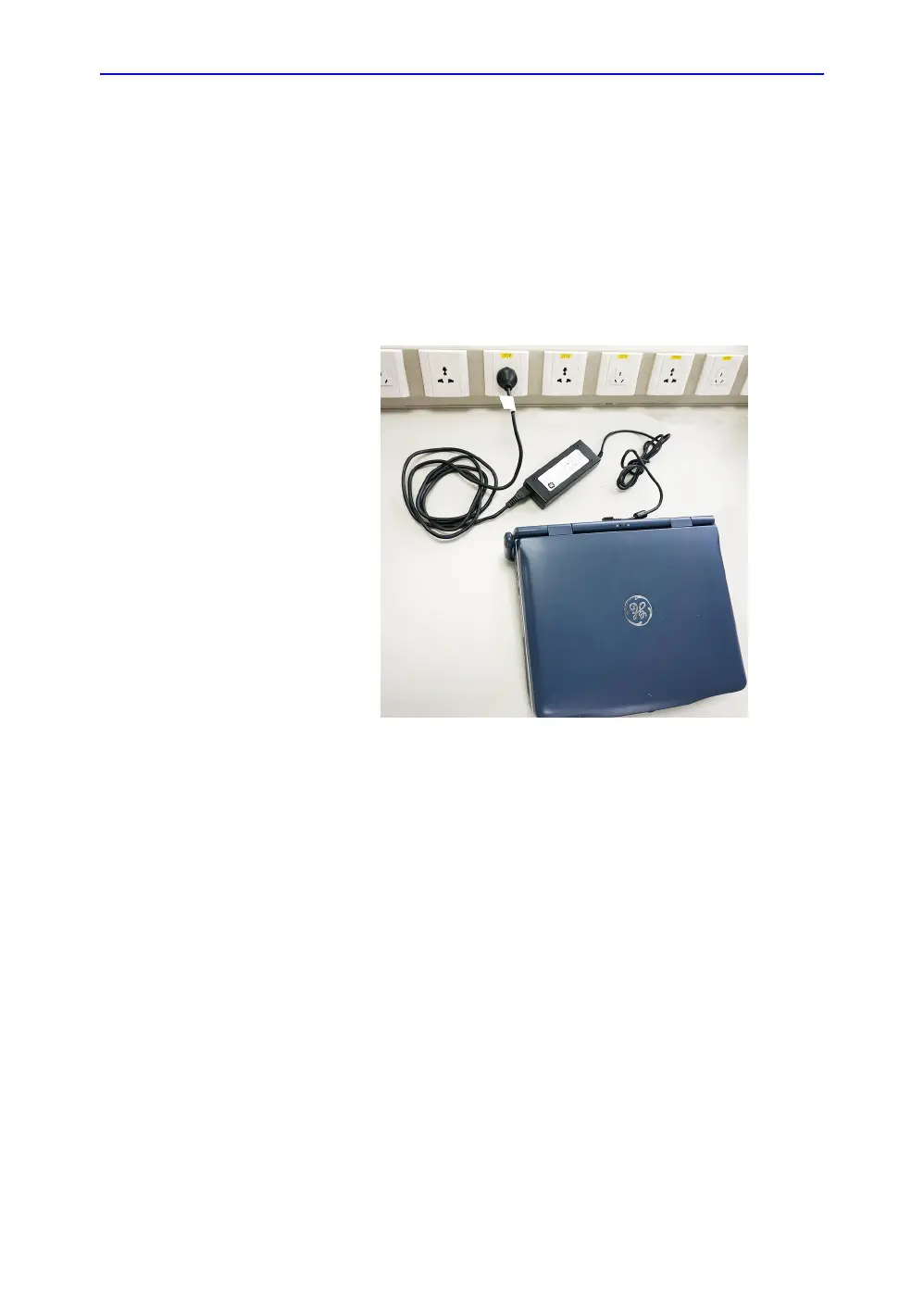

Figure 4-1. Connect AC Adapter

GE LOGIQ V1 Specifications

General

Brand	GE
Model	LOGIQ V1
Category	Medical Equipment
Language	English
