GE LOGIQ V1 Basic Service Manual

Power Diagram
LOGIQ V2/LOGIQ V1 – Basic Service Manual 5-5
5610739-100 English Rev.10
Power Diagram
Overview
The AC Power assy’s main tasks are to isolate and output to the
DC/DC unit which is inside the system console. The input of AC
power pack will be the AC outlet and it’s universal, the range is
AC 100V-240V, 50-60Hz. And no main power switch located on
this power pack.
AC Power
LOGIQ V2/LOGIQ V1 Power supply is an ACDC adapter which
use 100V-240V (50-60Hz) as input and DC 19V (7.9A) as
output.

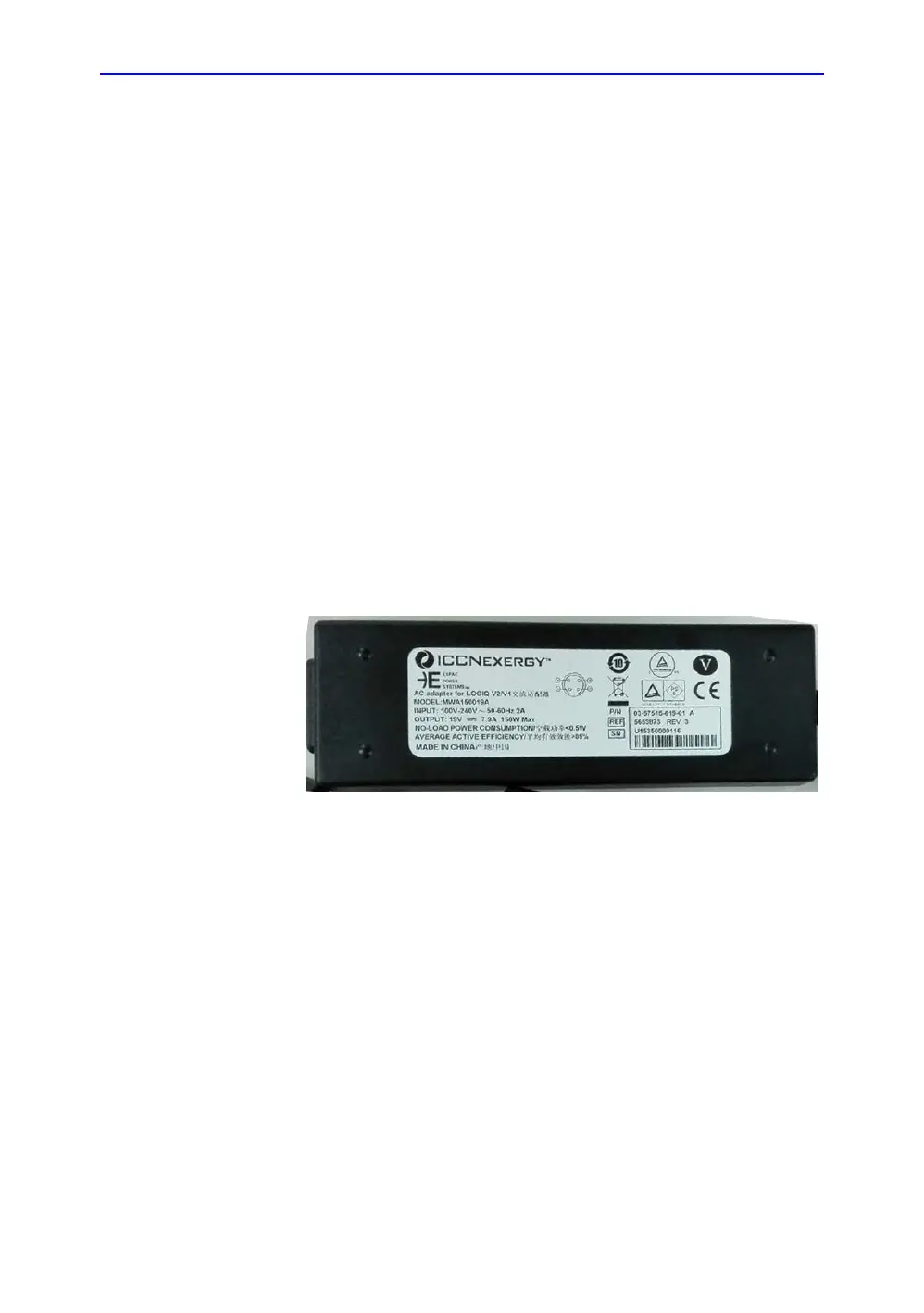

Figure 5-2. ACDC Adapter
