Network Configuration

Wire-LAN Network

1. Connect system with network.

2. Enter Utility-> Connectivity-> TCP/IP, in IP settings

window, check Enable DHCP, and select the proper

network speed in Network Speed.

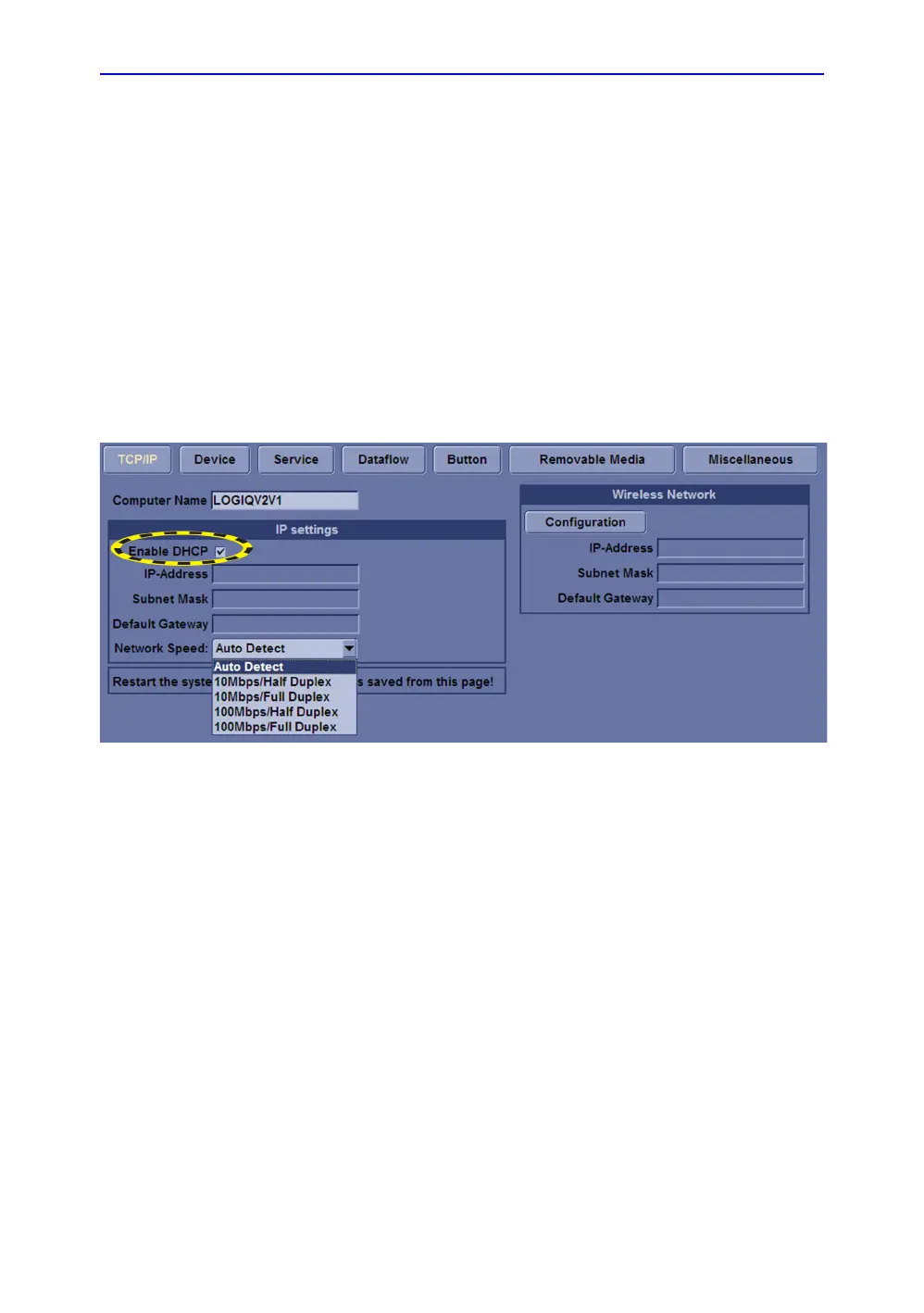

Figure 8-16. Enable DHCP
