GE LOGIQ V1 Basic Service Manual

Network Configuration
LOGIQ V2/LOGIQ V1 – Basic Service Manual 8-27
5610739-100 English Rev.10
Wire-LAN Network (continued)
NOTE: If the user wants to set up static IP address, uncheck
Enable DHCP option, input static address in IP-address,
Subnet Mask and Default Gateway box. In Network
Speed box, choose the proper speed available.

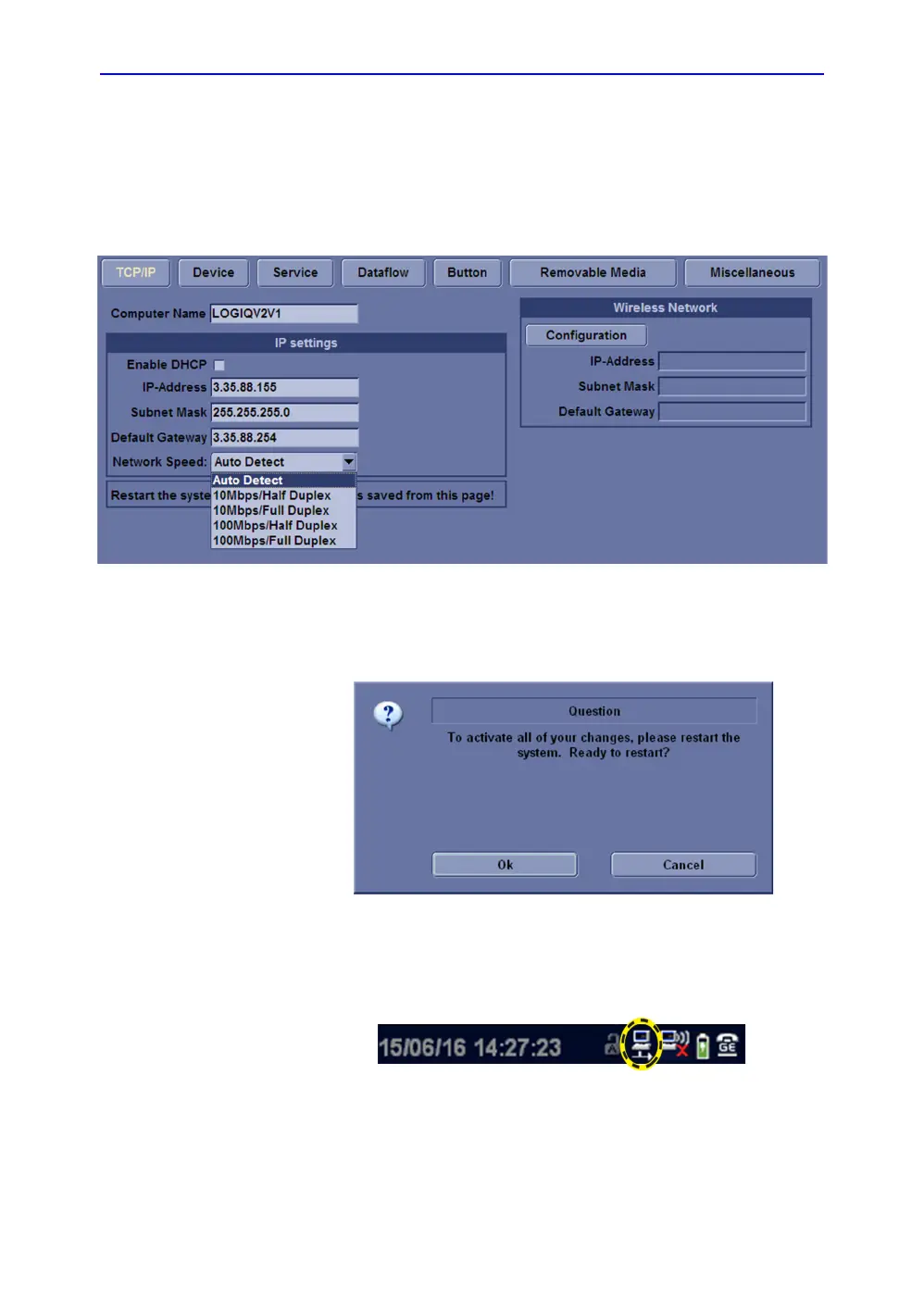

Figure 8-17. Input Static IP
3. Select Save, and a popup window displays. Select OK to
restart the system and activate the changes.
Figure 8-18. System Restart inquiry dialog
4. The network icon at the bottom of the the screen displays as
connected.
Figure 8-19. Network Icon
