Disassembly/Re-assembly

LOGIQ V2/LOGIQ V1 – Basic Service Manual 7-9

5610739-100 English Rev.10

2-Probe Holder (5727508) (continued)

Removal Procedure

Mounting Procedure

1. Install the new parts in the reverse order of removal.

Table 7-2: Removal Procedure for 2-Probe Holder

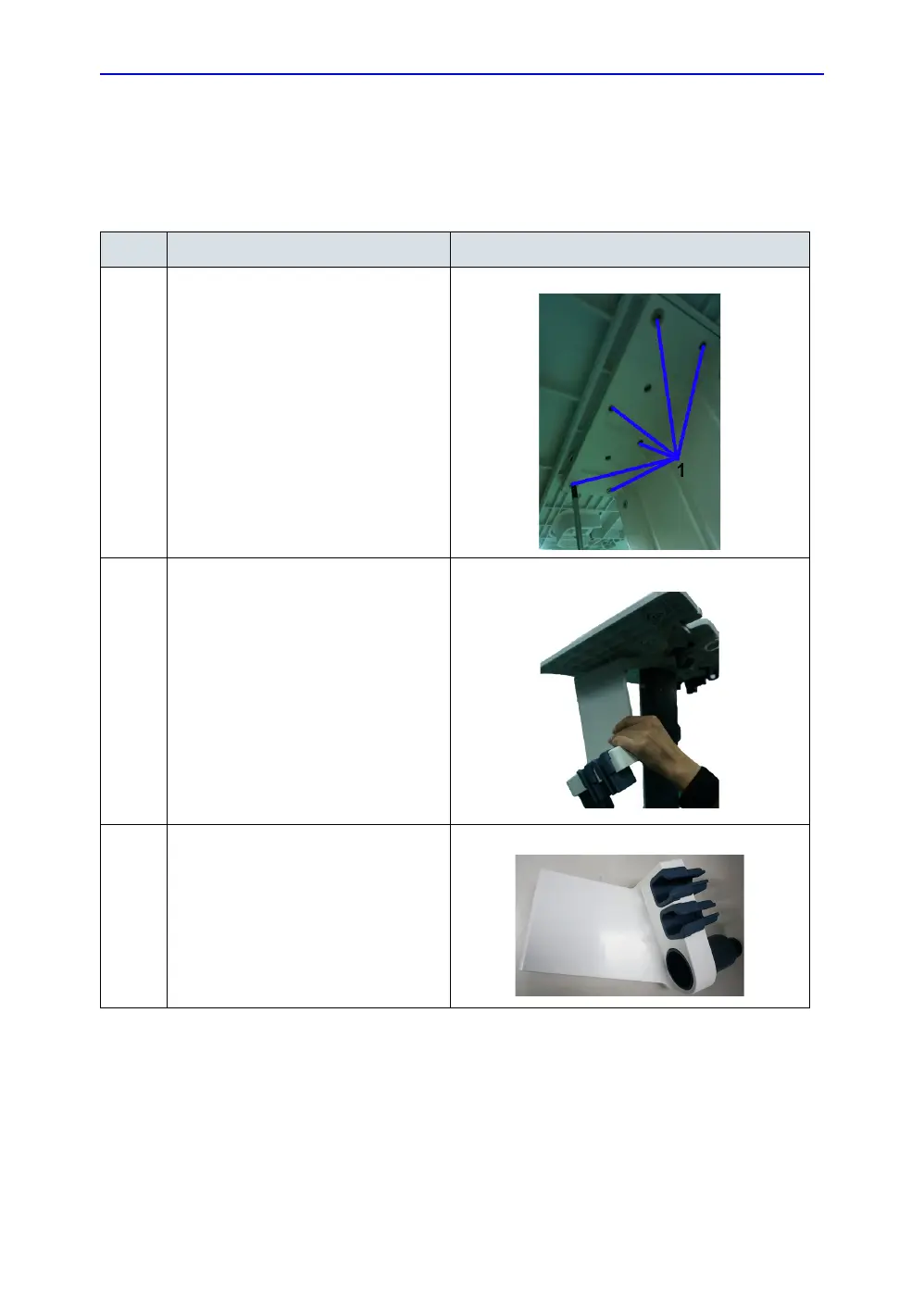

No. Steps Corresponding Graphic

1. Unscrew the 6 screws under the top

table.

2. Remove the probe holder from the top

of table.

2-Probe Holder (5727508)
