MDS 05-3438A01, Rev. F MDS 4790/9790 Series I/O Guide 11
4.1 Unpacking and Inspection

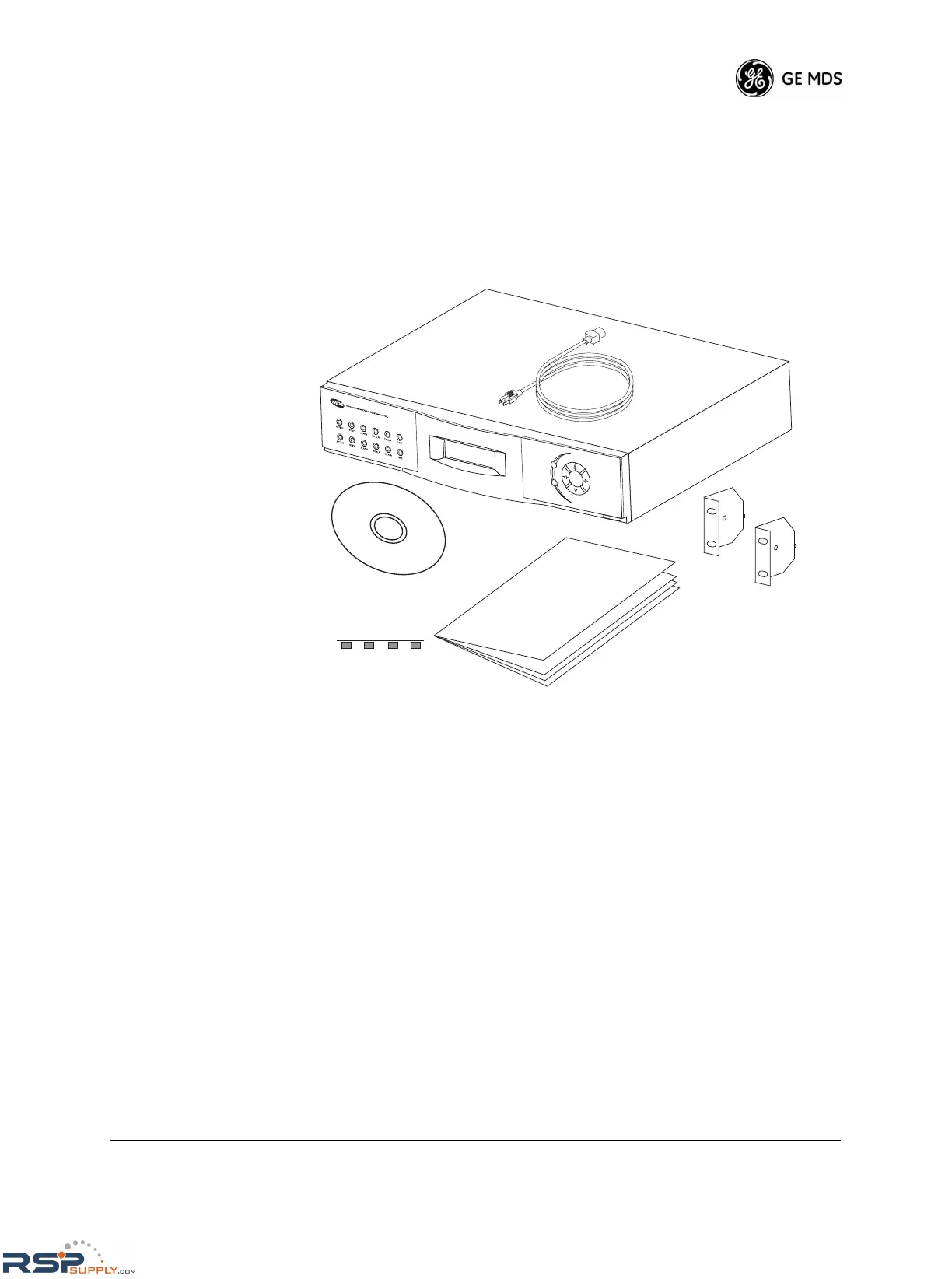

Figure 6 shows a typical radio shipment. Check the contents against the
packing list secured to the outside of the shipping box. Accessories and
spare parts kits, if any, are wrapped separately. Inspect all items for
signs of damage. Save all packing materials in case you need to ship the
radio in the future.
Invisible place holder
Figure 6. Typical Shipment Contents
4.2 Mounting the Radio
Install the radio in a relatively clean, dust-free environment that allows
easy access to the rear panel connectors as well as the front panel con-
trols and indicators. Air must pass freely over the heatsink on the rear
panel.
Figure 7 on Page 12 shows the mounting dimensions of the radio. Most
commonly, the radio is installed in a 2U/3.5 inch (88.90 mm)
rack-mount configuration, but you can also install it in a simple tabletop
arrangement if desired.
PC DIAGNOSTICS & CONTROL
CD-ROM (OPTIONAL)
RACK-MOUNT BRACKETS (2
