CHAPTER 6: ACCESS CONSIDERATIONS ACCESS CONSIDERATIONS
MULTILINK ML3000 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL 6–13

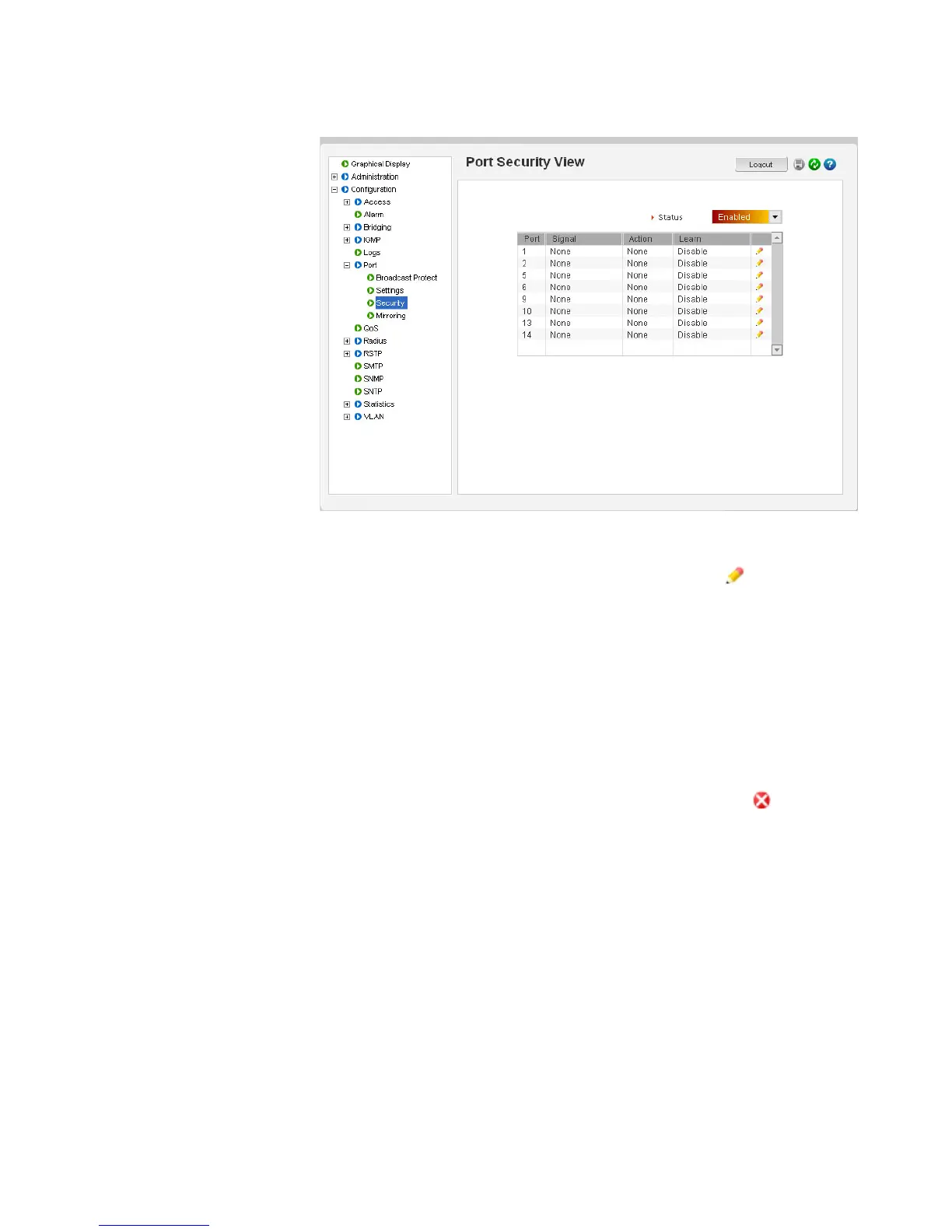

Note that the screen also provides an overview of each port on the switch. Each port can
be individually configured for the proper port security action.
Each individual port can be configured by clicking on the edit icon ( ). Once the edit
screen is shown, the following actions can be taken for each port:
1. The port can be specified to create a log entry or send a trap, do both or do
nothing. This is done through the Signal Status drop down menu.
2. The port can be specified to drop the connection, disable the port or do
nothing. This is indicated by the Action Status drop down menu.
3. The port can be put in the learn mode or the learning can be disabled. This is
indicated by the Learn Status drop down menu.
Additionally, MAC addresses can be added or deleted from the table of allowed MAC
addresses.
To delete a MAC address, click on the delete icon ( ).
To add a MAC address, click on the Add button and fill in the MAC
address in the MAC address window.
