10–18 MULTILINK ML3000 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL
VLAN CHAPTER 10: VLAN
The next step is to define the VLANs needed. To do that,

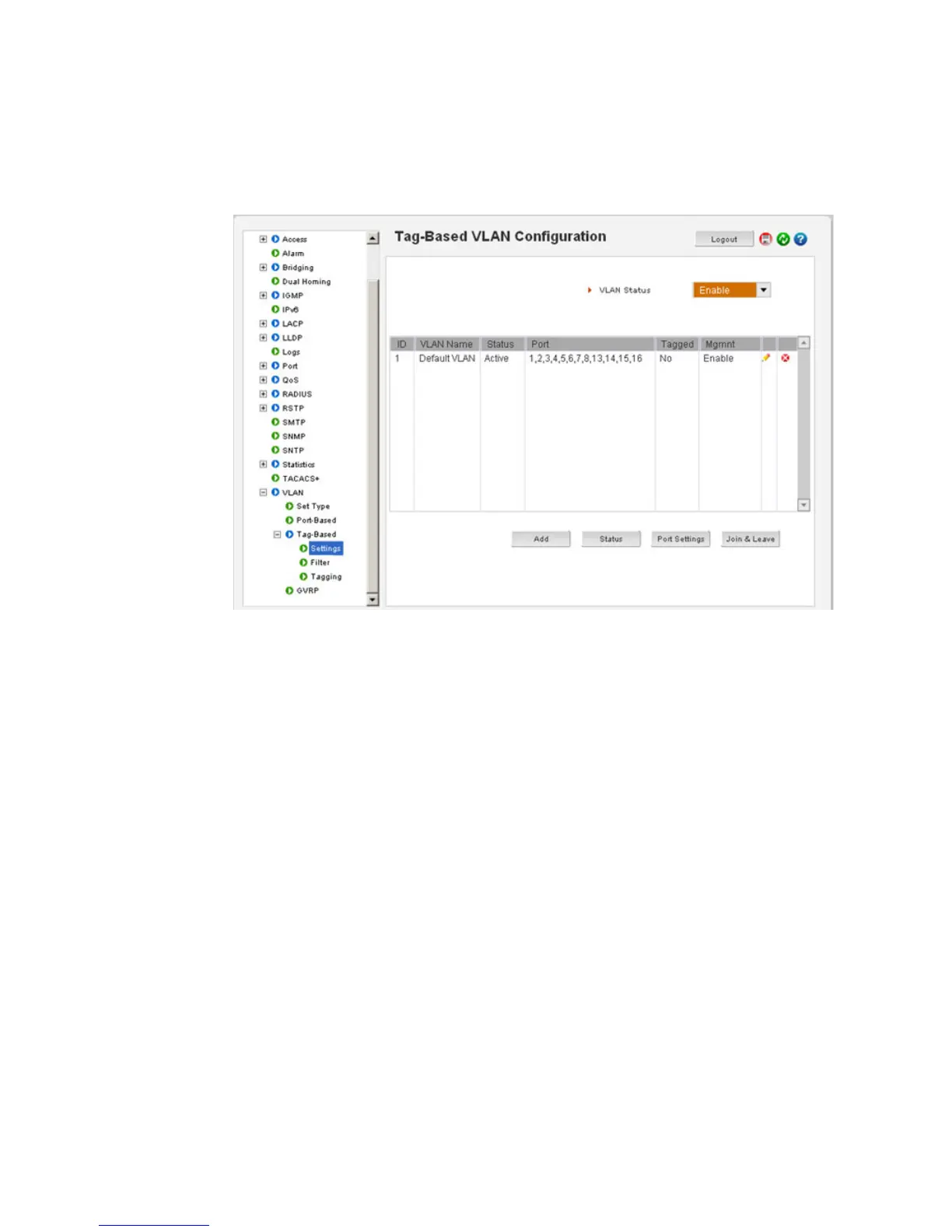

Click On Configuration >vlan >tag-based >Settings Menu.
Click on the Add button.
.
Now add the necessary VLANs.
In the example below, add the VLANs in the following manner
•VLAN 1, All ports - default VLAN
• VLAN 10, Engineering VLAN - ports 13, 14
• VLAN 20, Support VLAN - ports 13, 14, 15 (note that port 13
belongs to VLAN 10, 20)
To Next Page
