Installation 2-11
January 2006

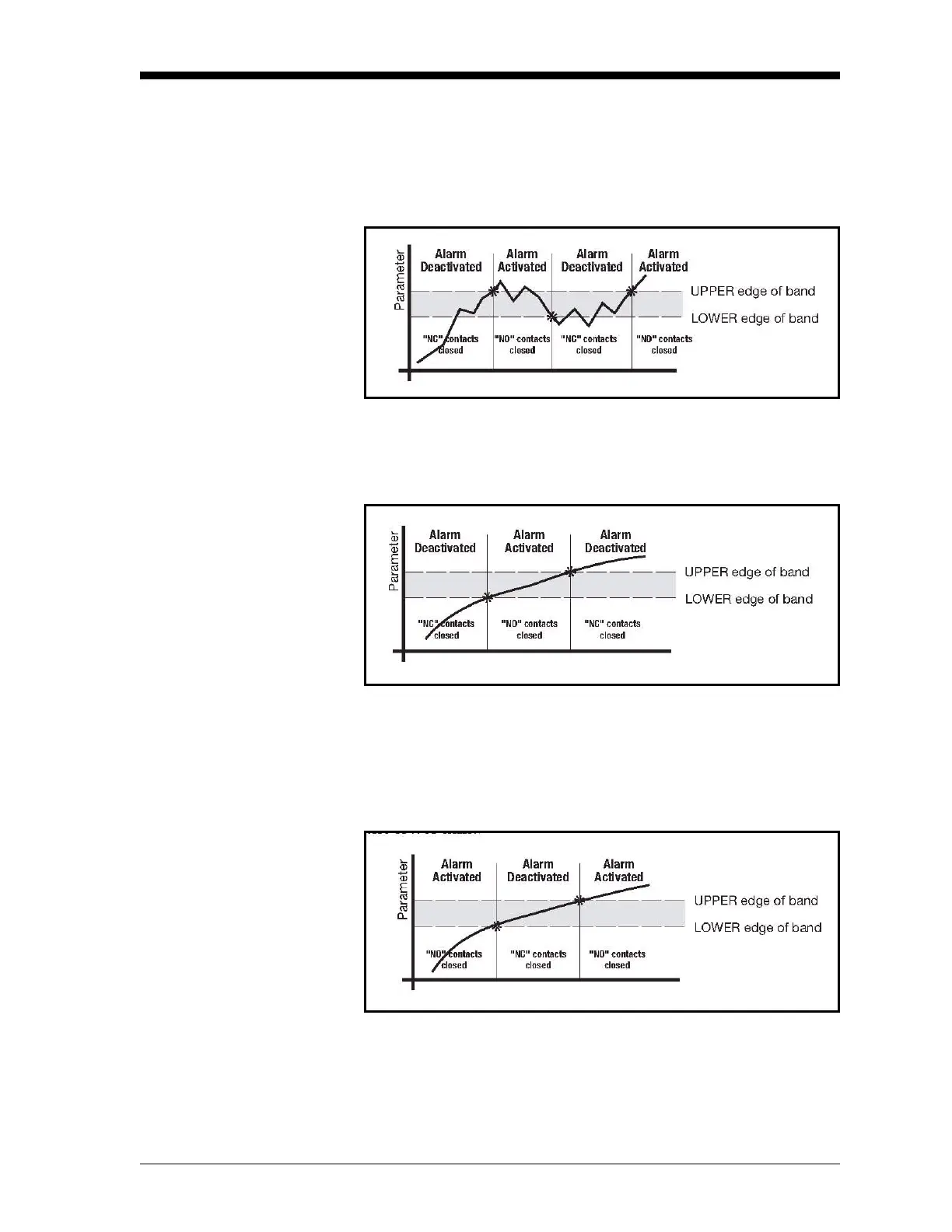

Set Point Alarm For the Set Point alarm type, the alarm band provides hysteresis to
prevent frequent operation of the alarm relay when the parameter is
near the specified value. The relay is activated when the parameter
exceeds the upper limit, and deactivated when the parameter goes
below the lower limit.
Figure 2-12: Set Point Alarm
Inner Band Alarm For the Inner Band alarm type, the alarm relay activates whenever
the parameter value is between the lower and upper limits.
Figure 2-13: Inner Band Alarm
Outer Band Alarm For the Outer Band alarm, the alarm relay activates whenever the
parameter value is greater than the upper limit or less than the lower
limit.
Figure 2-14: Outer Band Alarm
