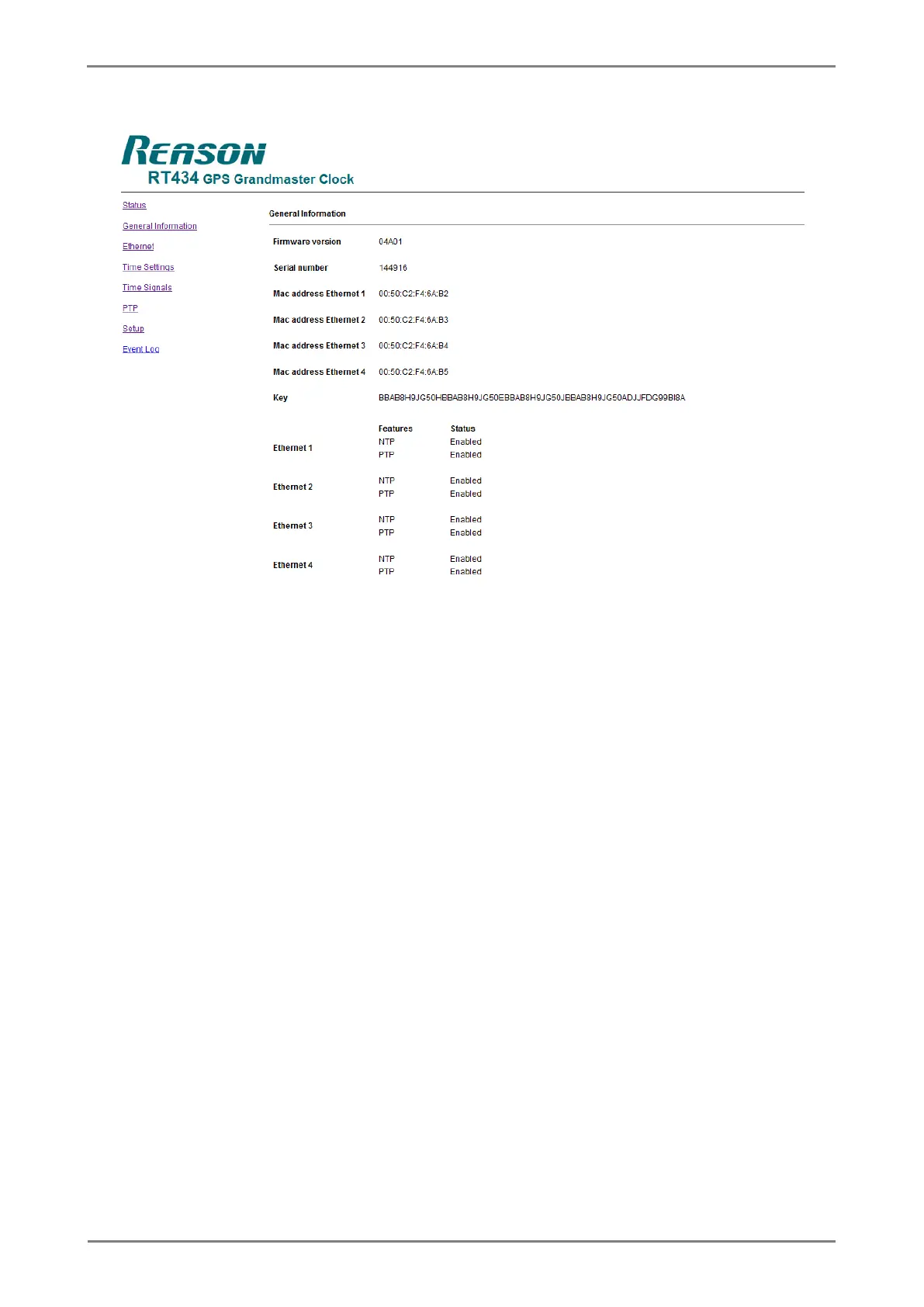

Figure 40: Section to visualize general information of the system
The system information is presented as follows:
 Firmware Version: presents the current firmware version of the unit.
 Serial Number: presents the serial number of the unit.
 MAC Address ETHERNET 1/4: presents the MAC address of each ETHERNEt port.
 Key: presents the unit key according to the enabled features (NTP and/or PTP); besides the key, it is
shown the current features configuration of each ETHERNET port.
5.2.3 Events input
The section EVENT of the Web Interface, shown in Figure 41, allows monitoring the timestamp of received
pulses from event input of RT430. The timestamp frequency that is registered in log files is according to the
pulse frequency received through the event input.
This input can be used to check the PTP signal quality when RT430 is used as slave, i.e., receiver of PTP
signal from external sources connected to the network. The electrical output of the source should be
configured to send pulses in time frequency and in each pulse received by the unit, an event will be
registered in a log file, containing the timestamp of the pulse. The accuracy of event input is in the magnitude
of ns.
