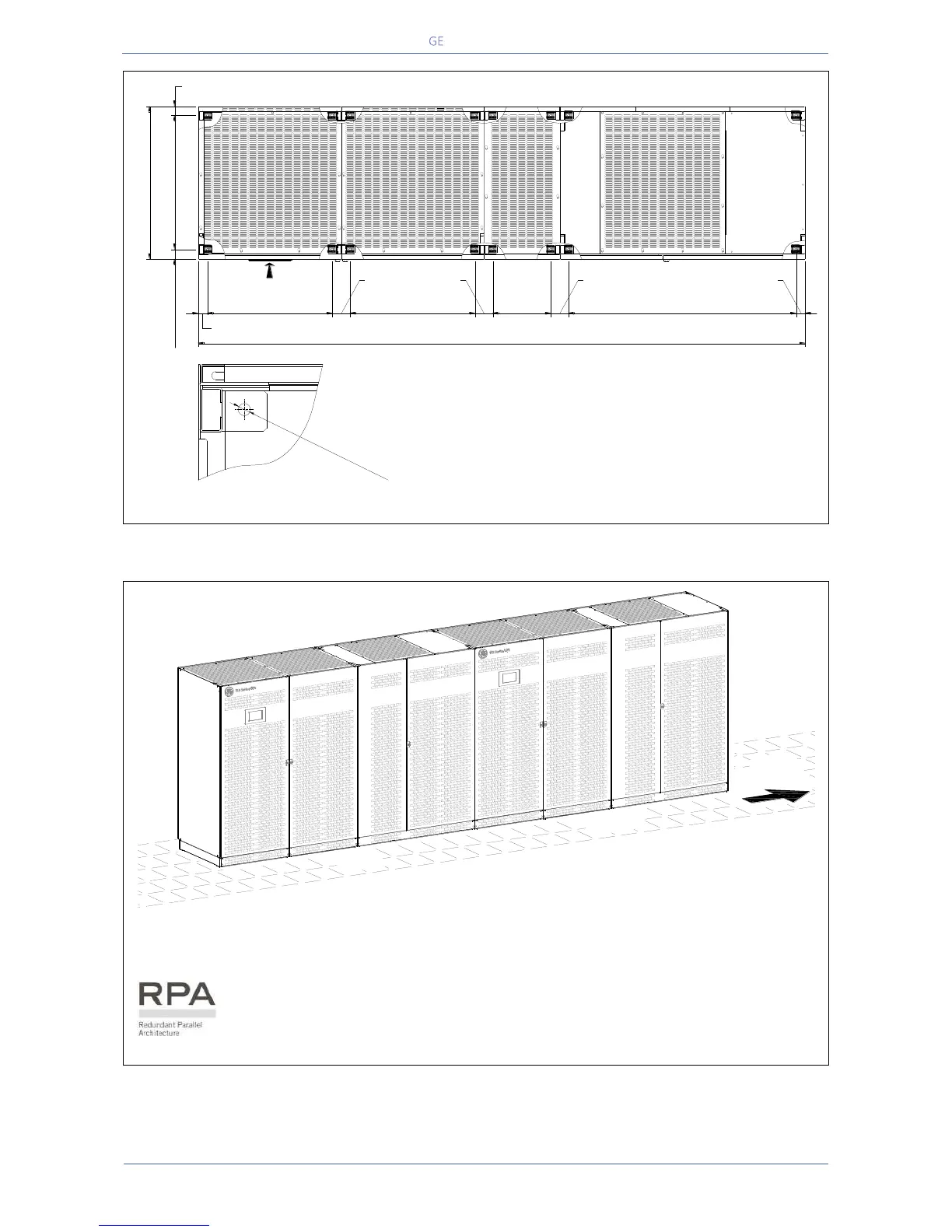

Fig. 5.4.1-10 TLE Series 800 – UPS cabinet floor fixing points
Fig. 5.4.1-11 TLE Series 600 & 800 – RPA Parallel System disposition
In case of Parallel System, try to place the UPS modules in sequence of their numbers
(marked on the packing).
If the units are positioned “side by side”, the side panels must be mounted on all
units.
TLES_800_S1_UPS view top_01GB
FRONTAL SIDE
Power Section cabinet In/Out Section cabinet
750 mm / 29.53 "
60 mm / 2.37 "
865 mm / 34.06 "
54 mm / 2.13 "
700 mm / 27.56 "
700 mm / 27.56 "
60 mm / 2.36 "
1275 mm / 50.19 "
3420 mm / 134.65 "
325 mm
12.80 "
100 mm / 3.94 " 100 mm / 3.94 " 60 mm / 2.36 "
Ø 13.5mm / 0.53 "
TLES_600_S1_RPA disposition_GE_01GB
UPS 1
UPS 2
UPS
3 - 4 - 5 - 6
