GE TLE series 600 - Bus Bars Interconnection

Critical Power
Modifications reserved
Page 40/146
GE_UPS_OPM_TLE_SCE_M60_M80_1GB_V020.docx
User Manual TLE Series 600 & 800 CE S1
5.7.2 Bus bars interconnection
WARNING !
All the bus bars interconnection must be performed by QUALIFIED SERVICE
PERSONNEL only.
TLE Series 600 - Bus bars interconnection

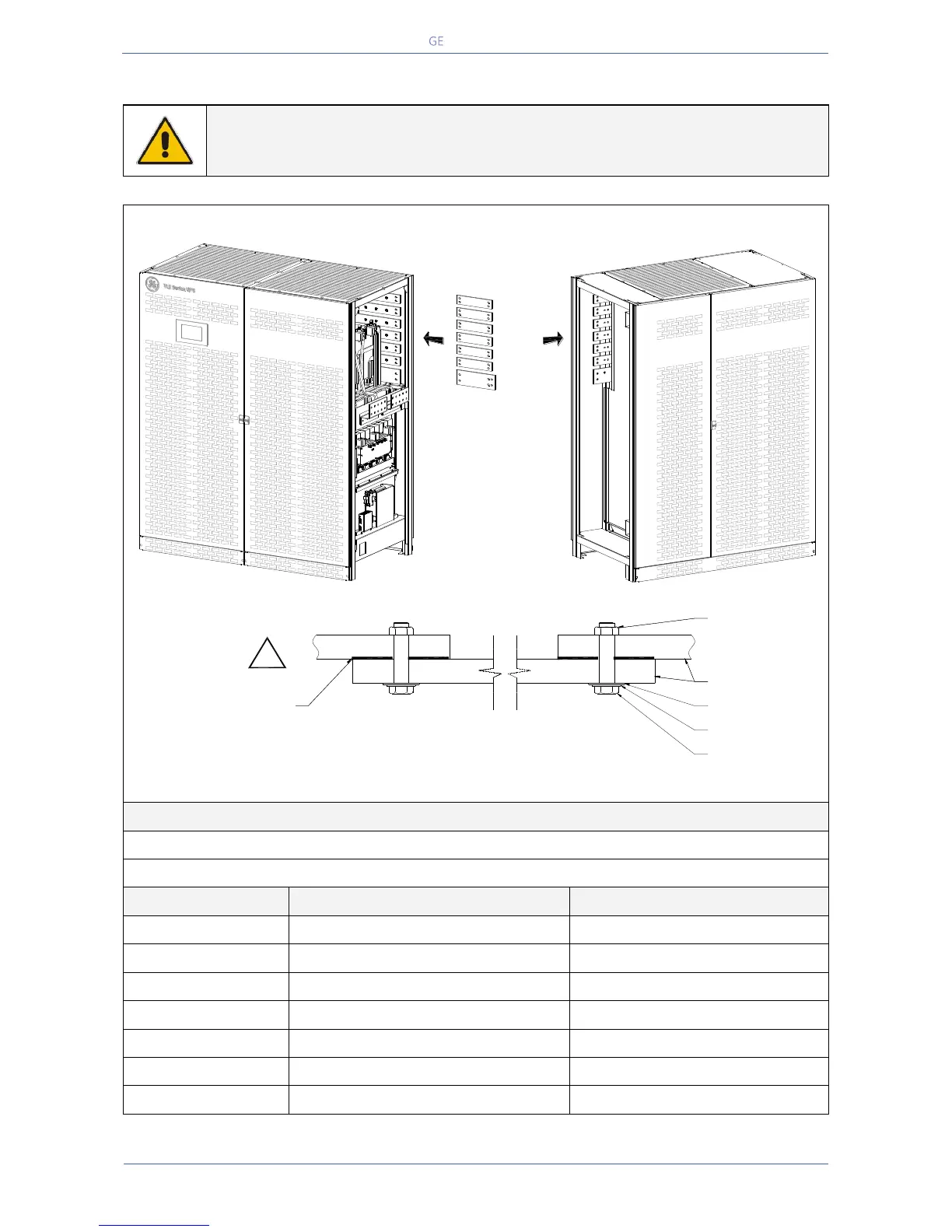

Fig. 5.7.2-1 TLE Series 600 – Bus bars interconnection
Torque Specifications
BOLT Size (mm): M10
BOLT Torque (N-m): 40
Connection
Description of connection
Bus bars interconnection
L1 Inverter
Interconnection L1 Inverter
1 Bus bar 60/10 x 270 mm
L2 Inverter
Interconnection L2 Inverter
1 Bus bar 60/10 x 270 mm
L3 Inverter
Interconnection L3 Inverter
1 Bus bar 60/10 x 270 mm
L1 Rectifier
Interconnection L1 Rectifier
1 Bus bar 60/10 x 270 mm
L2 Rectifier
Interconnection L1 Rectifier
1 Bus bar 60/10 x 270 mm
L3 Rectifier
Interconnection L1 Rectifier
1 Bus bar 60/10 x 270 mm
N - Neutral
Interconnection N - Neutral
1 Bus bar 100/10 x 270 mm
Bus bars interconnection
L1 Inverter
L2 Inverter
L3 Inverter
L1 Rectifier
N - Neutral
L2 Rectifier
L3 Rectifier
TLES_600_S1_UPS connection cabinets_GE_02GB
Power Section cabinet
In/Out Section cabinet
Detail showing bus bars interconnection
M10 Pre Fixed Nut
M10 Flat Washer
M10 Spring Washer
M10x35 Bolt
Bus Bar
Use the dedicated conductor
termination compound.
Example: PENETROX E
manufactured by BURNDY
!
