5.7 INTER CABINET CONNECTIONS
5.7.1 Cabinets positioning and interconnection
NOTE !
The “Power Section cabinet” and “In/Out Section cabinet” must be installed on
leveled floor.
TLE Series 600 - Cabinets positioning and interconnection

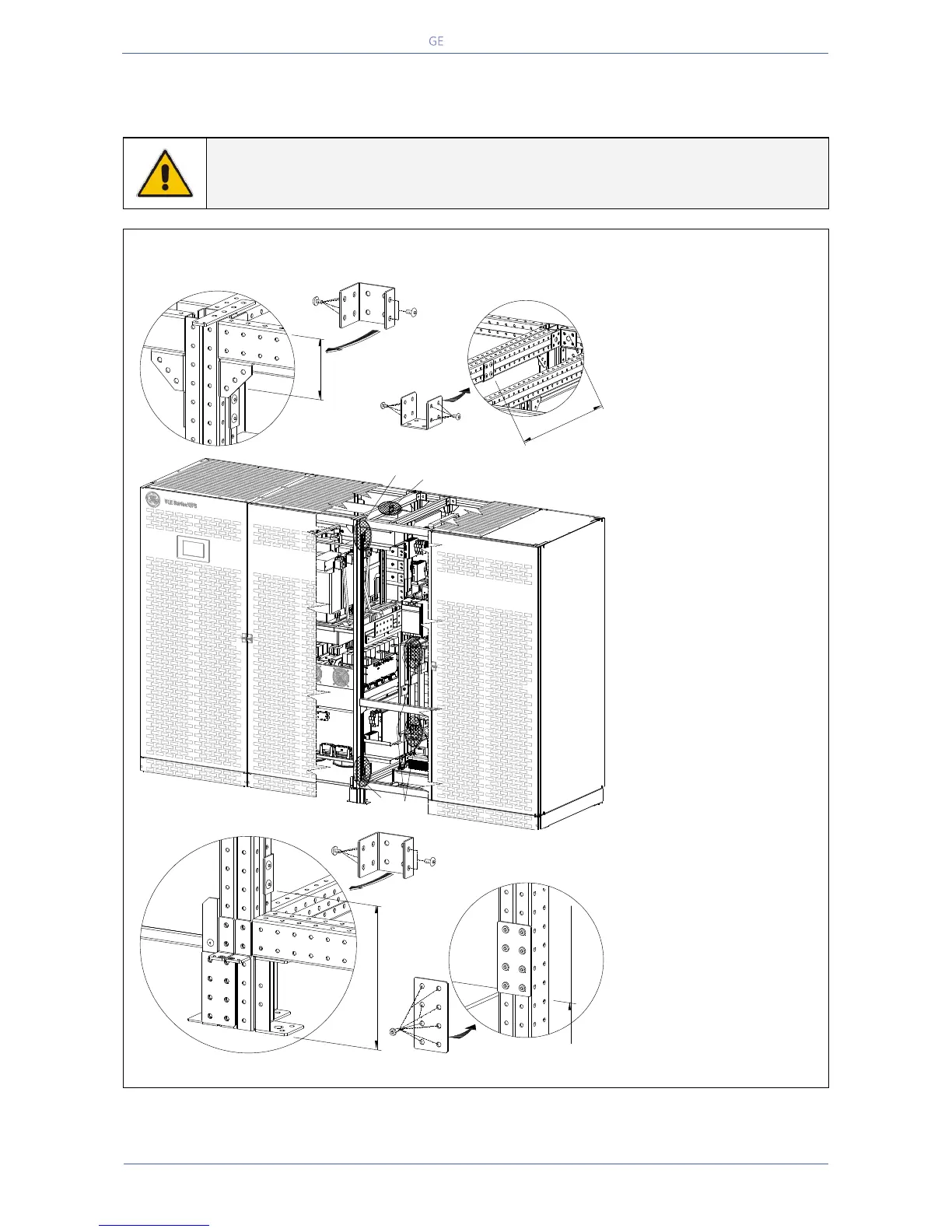

Fig. 5.7.1-1 TLE Series 600 – Cabinets positioning and interconnection
TLE Series 600, in
standard version, is
delivered split into two
cabinets, “Power Section
cabinet” and “In/Out
Section cabinet”.
Align them together with
the “Power Section
cabinet” on the left side
(cabinet with Control
Panel).
See Fig. 5.7.1-1.
Pay attention, that no
loose cables are trapped
when pushing the
cabinets together.
Once finally positioned,
the two cabinets have to
be connected together
with power and control
wiring.
Refer to Section 5.7.2 and
5.7.3.
8 Bolt M6x12
Fixing type 2
Fixing type 3a
6 Bolt M6x12
Fixing type 1 (2 pc.)
8 Bolt M6x12
from base
6 Bolt M6x12
Fixing type 3b
In/Out Section cabinet
Power Section cabinet
TLES_600_S1_UPS connection cabinets_GE_01GB
3a
2
3b
1
14.77"
375 mm
3.94"
100 mm
9.97"
253 mm
35.55"
903 mm
6.89"
175 mm
