User Manual TLE Series 600 & 800 CE S1
7.1.1 Description of the selection keys

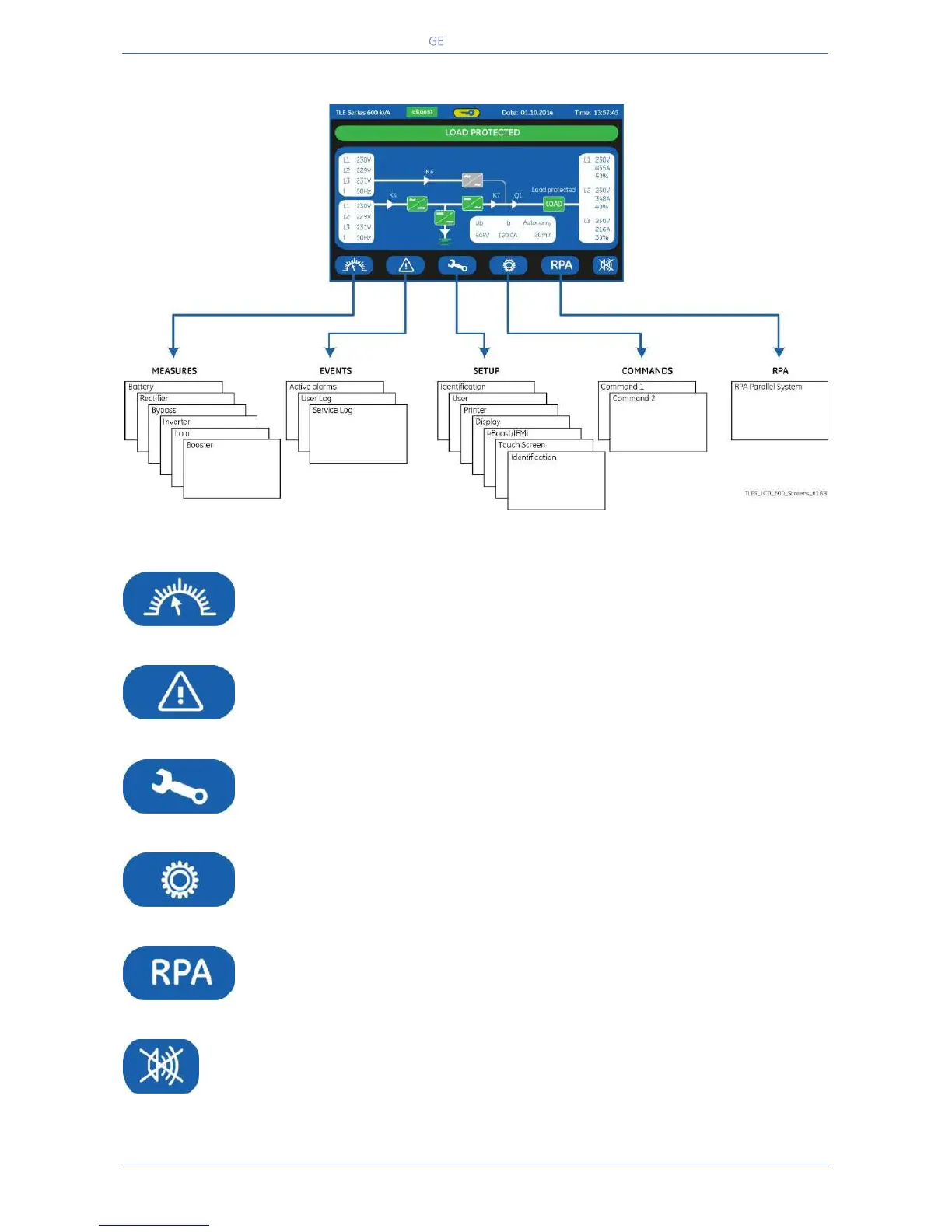

Fig. 7.1.1-1 LCD screen
MEASURES
Shows electric parameters values and statistics of use.
See Section 7.2.
EVENTS
Shows in chronological order, all the events occurred (alarms,
messages, commands, handling, etc.).
See Section 7.3.
SETUP
Allows the user to customize some UPS functions to specific
requirements and to view UPS identification data.
See Section 7.4.
COMMANDS
Allows the user to execute UPS operation commands.
See Section 7.5.
RPA
Parallel
System
Shows the status of operation of the RPA Parallel System.
See Section 7.6.
MUTE
Key to reset general alarm and buzzer.
