5.6 UNPACKING
Move the equipment in it’s original packing, carton box or wooden case, until the place of installation
and remove the packing and the transport sockets only just before installing the UPS.
Be aware of the heavy weight of the UPS, pay attention when moving the UPS cabinet.
White colour = without any anomaly
Red colour = anomaly evidence

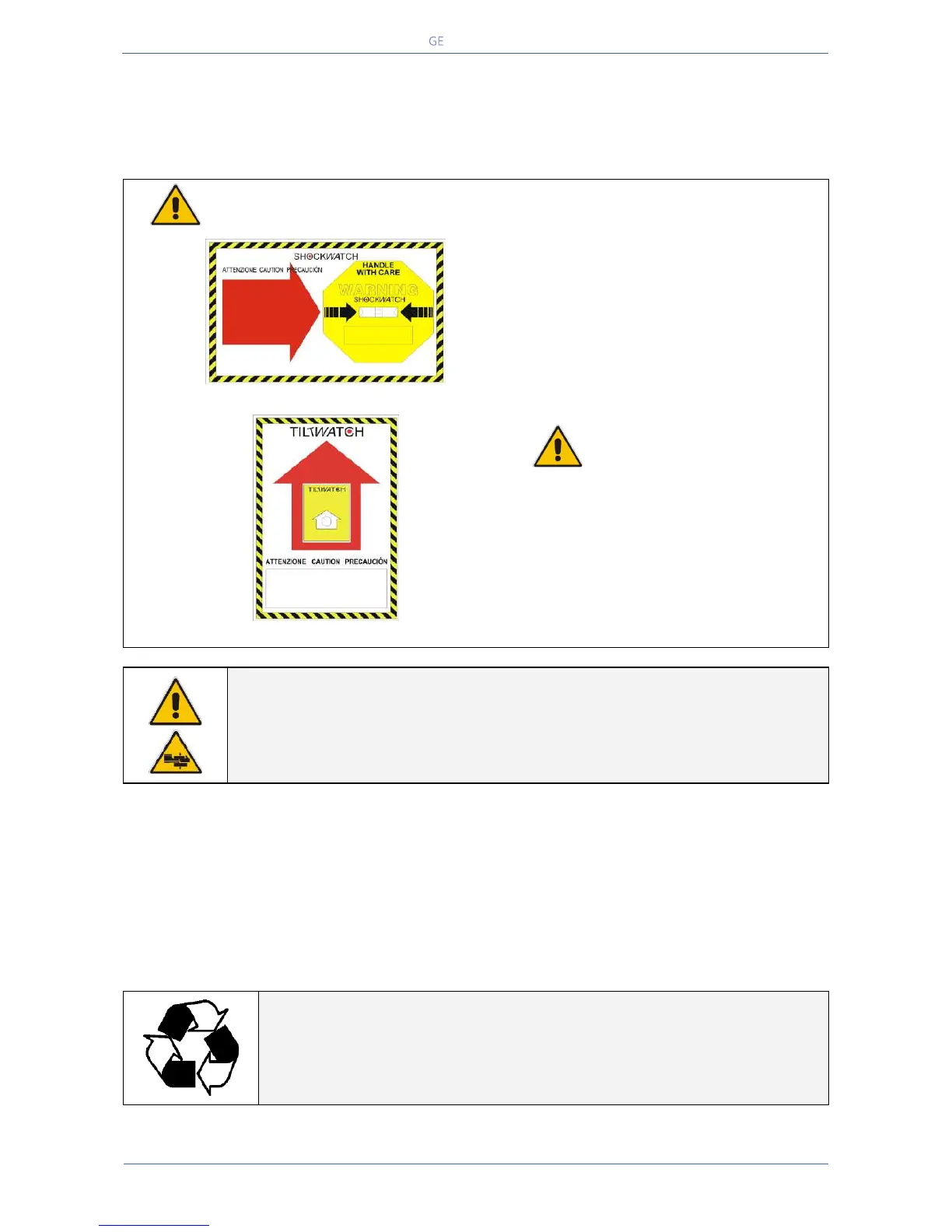

The package of the TLE Series 600 & 800
is equipped with ShockWatch (indicator
for shock), and TiltWatch (indicator for
overthrow) on the outside.
These devices indicate an eventual shock
or overthrow during transport.
Whenever these devices show a
possible anomaly, the UPS shall not be
commissioned before consulting a
“Service Centre”.
Fig. 5.6-1 ShockWatch device
Fig. 5.6-2 TiltWatch device
NOTE !
Be aware of the heavy weight of the UPS, pay attention when moving the UPS
cabinet.
Take care not to damage the UPS when moving by forklift.
Included in the delivery you can find the following parts:
An accessories bag.
Air inlet grids, which must be mounted on the bottom of the cabinet UPS with the screws included.
Bus bars interconnection “Power Section cabinet” and “In/Out Module cabinet”.
Junctions metal parts to connect “Power Section cabinet” and “In/Out Module cabinet”.
XD1 (46P) & XD2 (32P) control cables interconnection.
Control Bus cables for inter-connecting the UPS modules (only for the RPA system).
The documentation includes the “User Manual” and the “UPS Safety Rules”.
PACKING MATERIAL RECYCLING
GE’s Critical Power, in compliance with environment protection, use only
environmentally friendly material.
UPS packing materials must be recycled in compliance with all applicable
regulations.
