5.8.3 Installation requirements

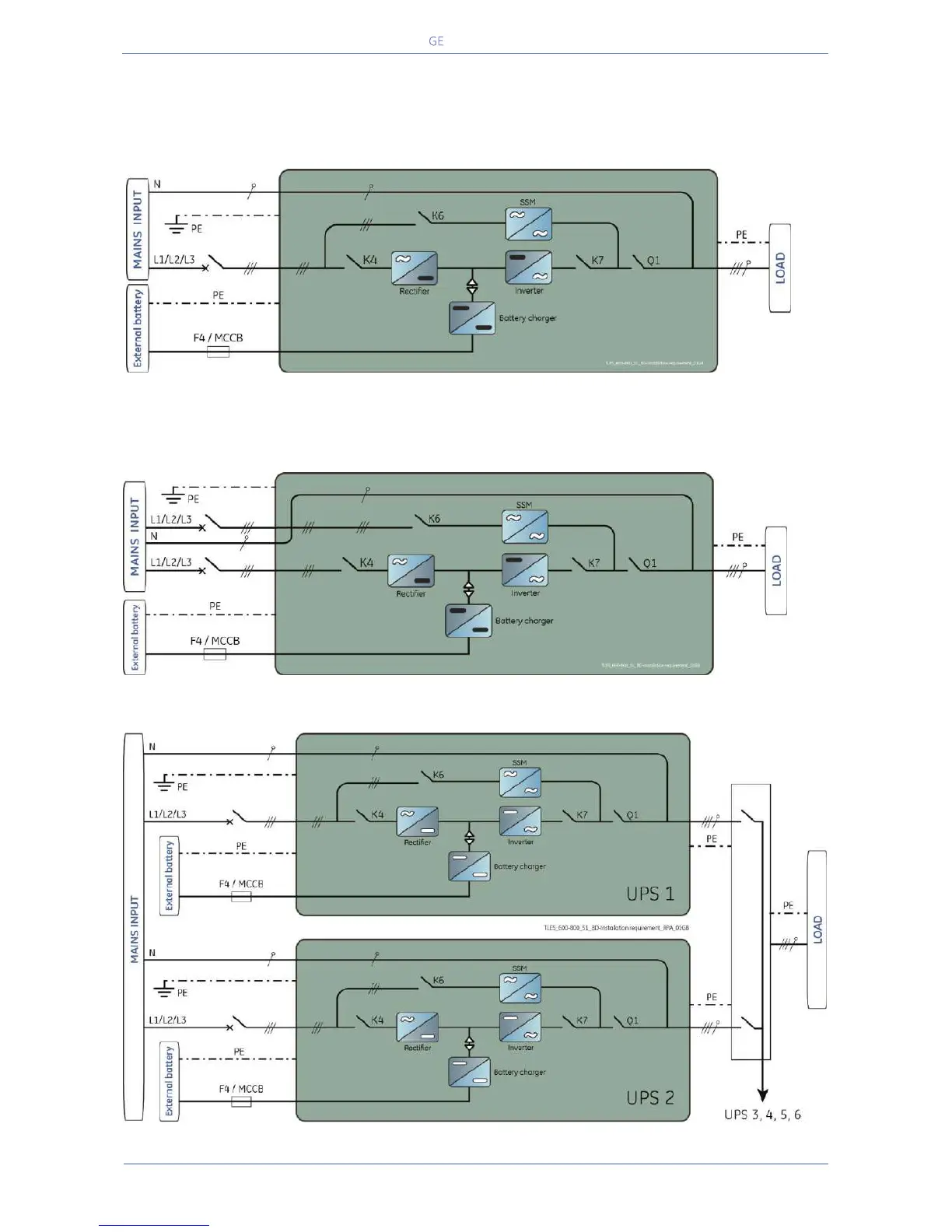

Typical examples for the connection of the TLE Series 600 & 800.
Single UPS with Common Mains Input for Rectifier & Bypass
Single UPS with Separate Mains Input for Rectifier & Bypass
(Connect a single input Neutral to Bypass Mains (inside the UPS, common Neutral for Bypass and
Rectifier).
UPS Parallel System with Common Mains Input Rectifier & Bypass
