TLE Series 800 - Cabinets positioning and interconnection

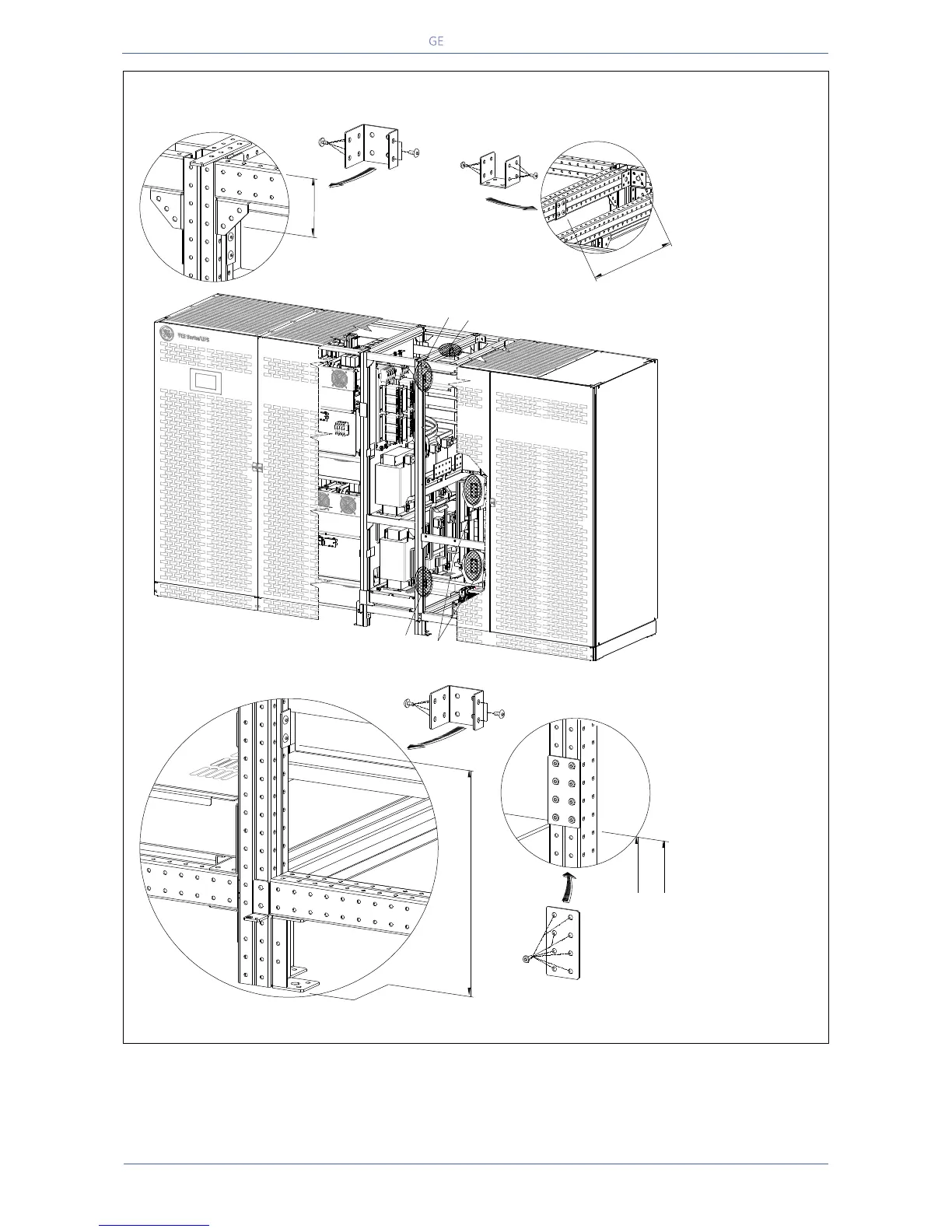

Fig. 5.7.1-2 TLE Series 800 – Cabinets positioning and interconnection
TLE Series 800, in
standard version,
is delivered split
into two cabinets,
“Power Section
cabinet” and
“In/Out Section
cabinet”.
Align them
together with the
“Power Section
cabinet” on the left
side (cabinet with
Control Panel).
See Fig. 5.7.1-2.
Pay attention, that
no loose cables
are trapped when
pushing the
cabinets together.
Once finally
positioned, the
two cabinets have
to be connected
together with
power and control
wiring.
Refer to Section
5.7.2 and 5.7.3.
8 boltsM6x12
Fixing type 2
375 mm
14.77"
Fixing type 3a
6 boltsM6x12
100 mm
3.94"
Fixing type 1 (2 pz.)
253 mm
9.97"
777 mm
30.60"
8 bolts M6x12
from base
6 bolts M6x12
Fixing type 3b
325 mm
12.80"
TLES_800_S1_UPS connection cabinets_GE_01GB
Power Section cabinet
In/Out Section cabinet
3b
1
2
3a
