NOTE !
To meet standards concerning electromagnetic compliance, the connection
between the UPS and external Battery must be done by using a shielded cable or
suitable shielded (steel) conduit!
This UPS is only designed to operate in a wye-configured electrical system with a
solidly grounded neutral.
If the UPS is equipped with an input bypass transformer, the secondary of the
transformer must be wye-configured with neutral solidly grounded.
Installation notices in case of power connection with Separate Mains Input

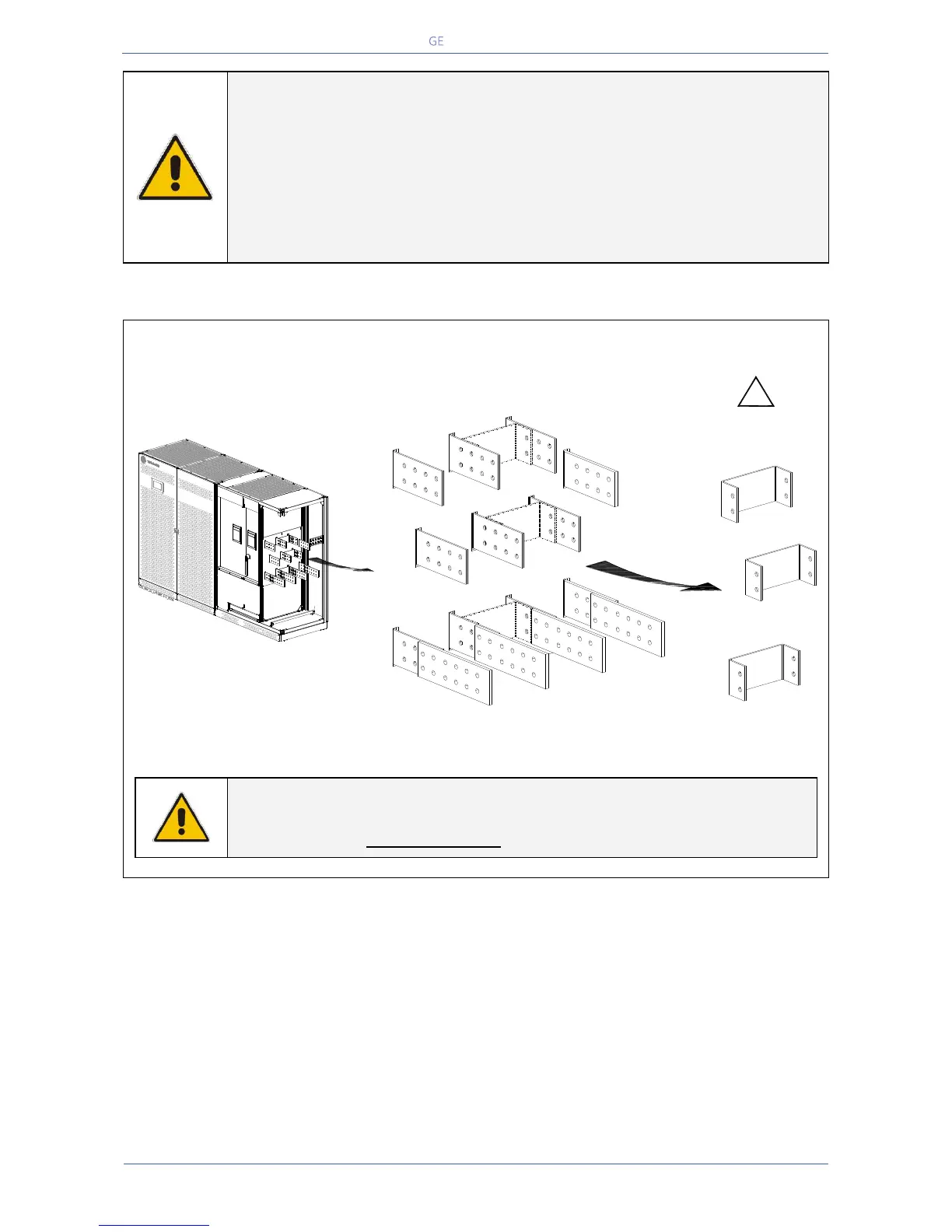

Fig. 5.9.2-2 TLE Series 600 - Interconnection links BR1, BR2 and BR3
NOTE !
For separate Bypass and Rectifier input configuration, the interconnection links
BR1, BR2 and BR3 MUST BE REMOVED (see Fig. 5.9.2-2).
INTERCONNECTIONS LINKS
BR1, BR2 and BR3
MUST BE REMOVED
!
1
Rectifier
Mains
BR3
2
Bypass
Mains
BR2
BR1
Load
L3
Load
L2
Load
L1
BR3
BR2
BR1
L2-2
L3-2
N
Mains Neutral
Load Neutral
N
Mains Neutral
Load Neutral
L2-1
L3-1
L1-2
L1-1
Q1
A
