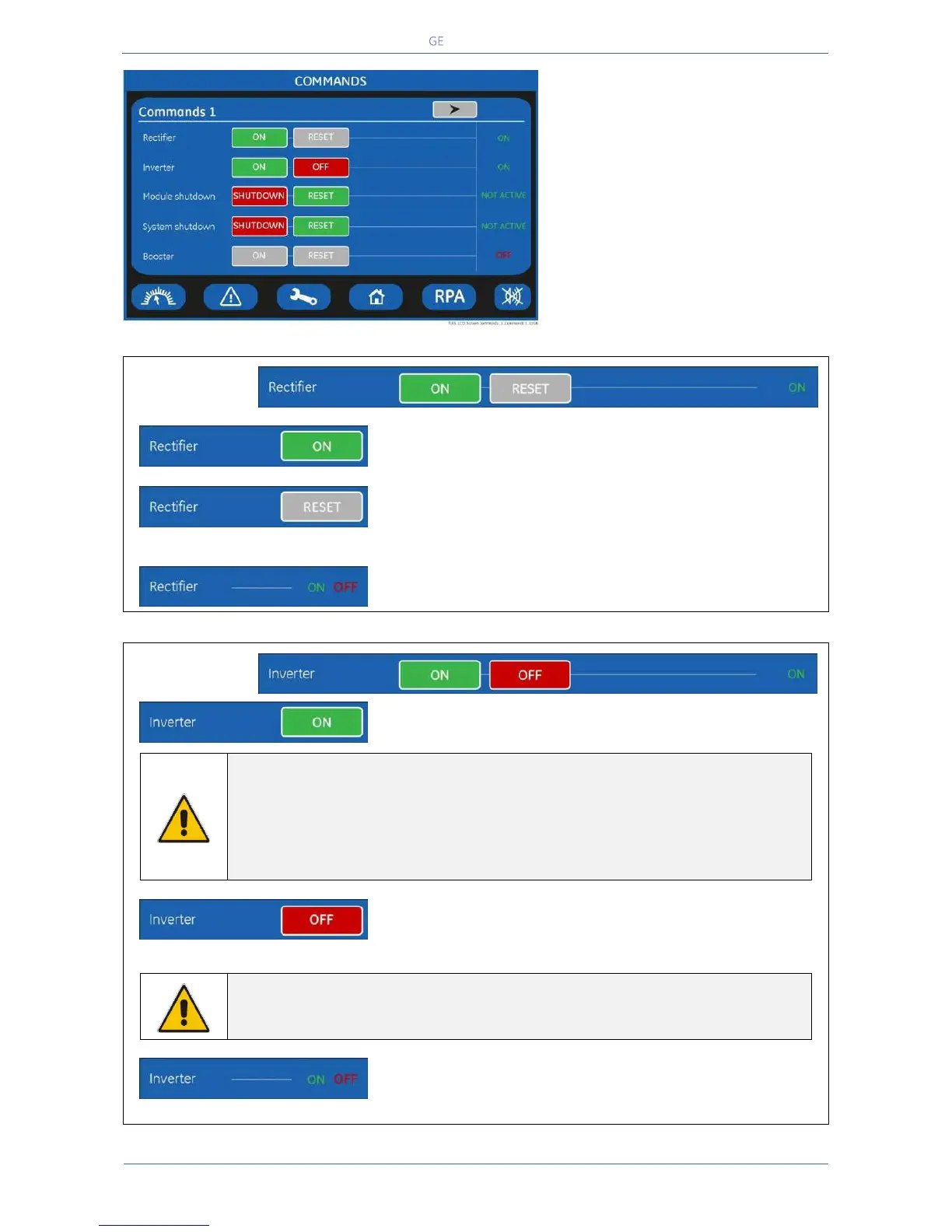

COMMANDS 1 SCREEN
Allows the user to execute UPS
operation commands.
Rectifier
Rectifier ON
Rectifier switching ON command.
Rectifier RESET
Rectifier restore command.
Reserved for the Service Centre.
Led Rectifier status
Indicates the Rectifier’s status: ON = lit OFF = turned Off
Inverter
Inverter ON
Inverter switching ON command.
NOTE !
When eBoost™ Operation Mode or IEMi Operation Mode is enabled, control of
Inverter status and selection of the feed path is done autonomously by the
UPS control logic.
Therefore, Inverter ON / Inverter OFF commands are disabled when eBoost™
Operation Mode or IEMi Operation Mode is enabled.
Inverter OFF
Inverter switching OFF command.
This command is also used as EPO (Emergency Power Off) reset after the contact closing.
NOTE !
Inverter OFF command is disabled when eBoost™ Operation Mode or IEMi
Operation Mode is enabled.
Led inverter status
It indicates the Inverter status:
ON / OFF / Pre-charge / Pre-charge completed / Soft-start
