Handling and assembly
Axle assembly
2018-9015-001
09-2016
39 / 192

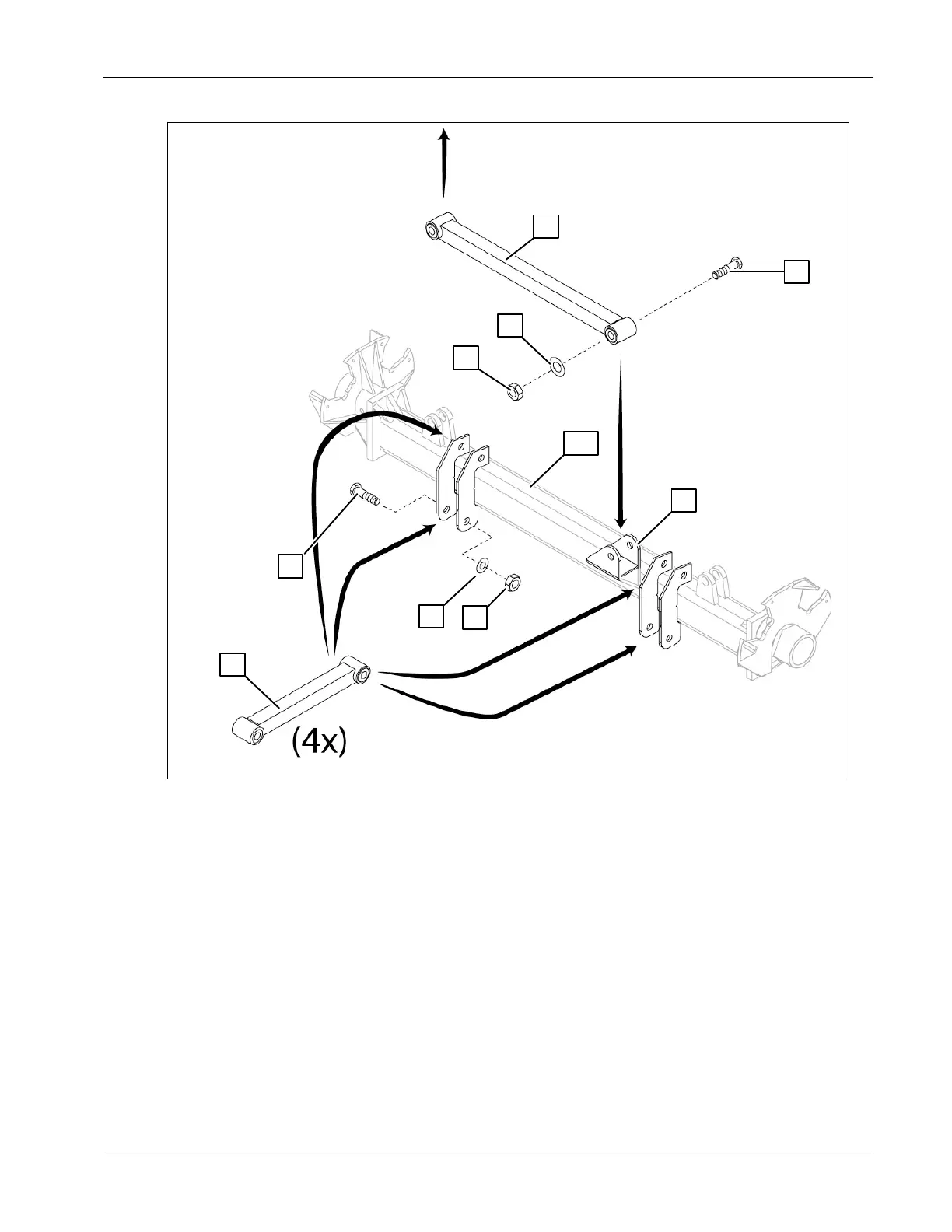

5.5.2 Arms assembly
2
5
8
9
1
3
4
6
7
10
● Install four arms (1) on the axle using bolts (2), washers (3) and nuts (4).
Torque to 350 ft-lb [475 NM];
● Slide the axle (10) under the spreader using a floor jack. Make sure the four
arms are positioned toward the front of the spreader;
● Install the transverse arm (5) in the bracket (6) using bolt (7), washer (8) and
nut (9). Make sure the offset side of the arm is oriented toward the front of
the spreader;
