Handling and assembly
Air braking system assembly (optional)
2018-9015-001
09-2016
50 / 192

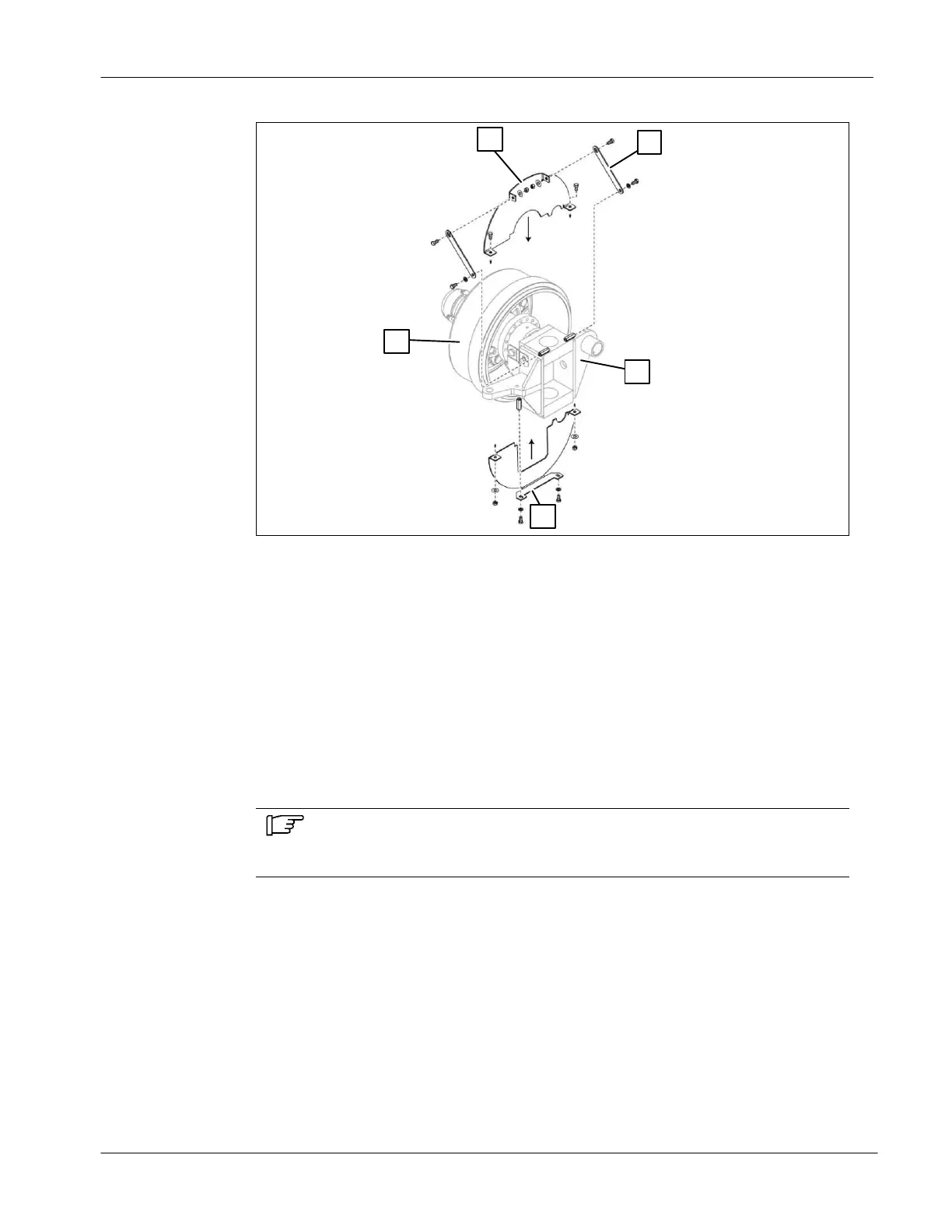

5.7.4 Dust shield assembly
3
2
4
5
1
● Assemble the upper and the lower dust shields (1, 2) behind the drum (3)
using bolts, flat washers and locknuts;
● Fix the lower dust shield (2) on the steering knuckle (4) using bolts and lock
washers;
● Fix the links (5) on the steering knuckle (4) using bolts and lock washers;
● Fix the links (5) on the upper dust shield (1) using bolts, flat washers and
locknuts;
● Repeat these steps for each wheel.
5.7.5 Air braking system calibration
Note!
Calibrate the air braking system by following the instructions in section
Maintenance - Air braking system.
