Handling and assembly
Air braking system assembly (optional)
2018-9015-001
09-2016
49 / 192
5.7.3 Drum assembly
Note!
Make sure the air pressure in the emergency line (red hose) is
maintained during the installation of the drum. The air pressure will
keep brake linings close to the drum, which makes installation easier.
3
1
2

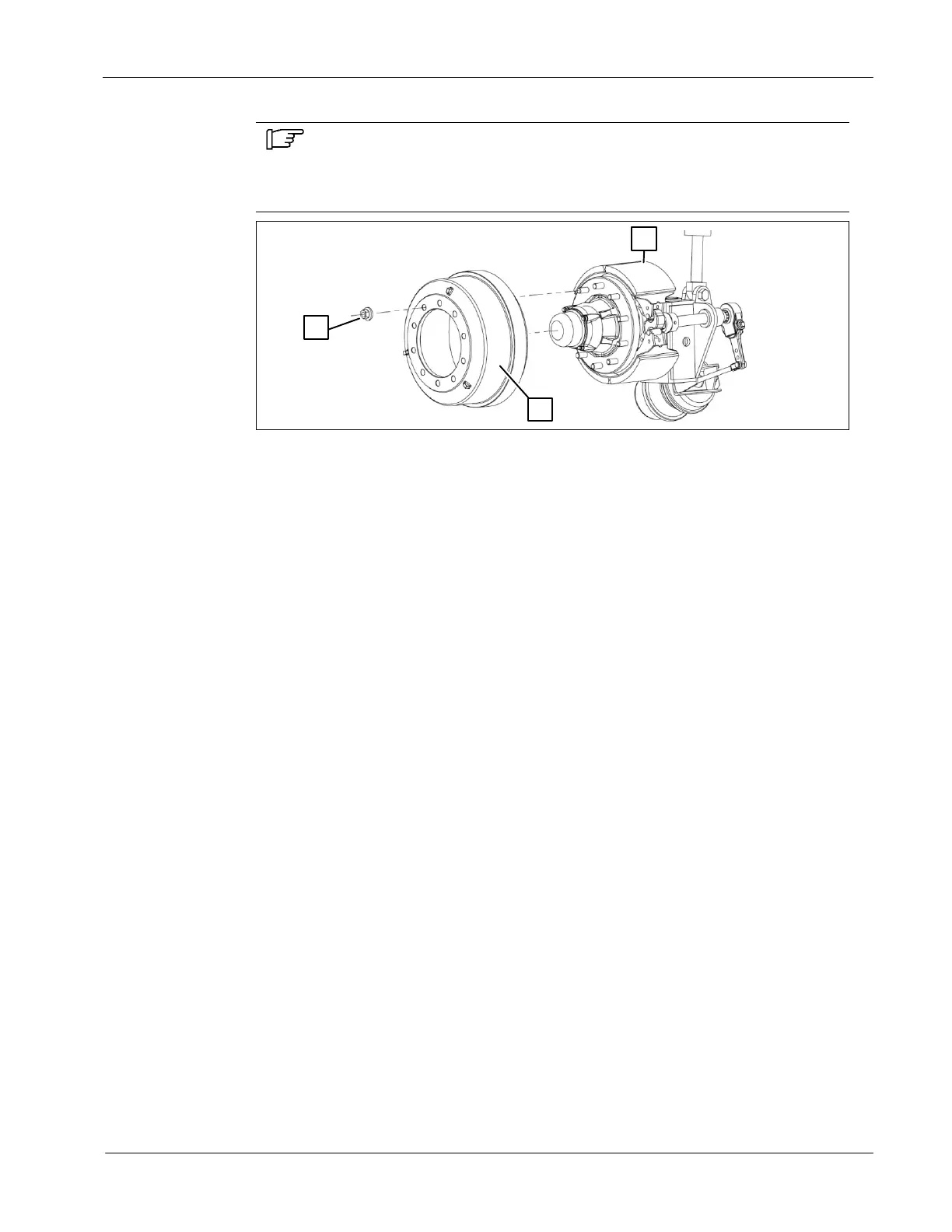

● Lift the drum (1) and install it over the brake lining (2);
● Screw three nuts (3) on the hub to secure the drum (1) temporarily;
● Repeat these steps for each drum;
● Release air pressure and unscrew the nuts (3) on each wheel.
