Handling and assembly
Spreading nozzles assembly (optional)
2018-9015-001
09-2016
65 / 192

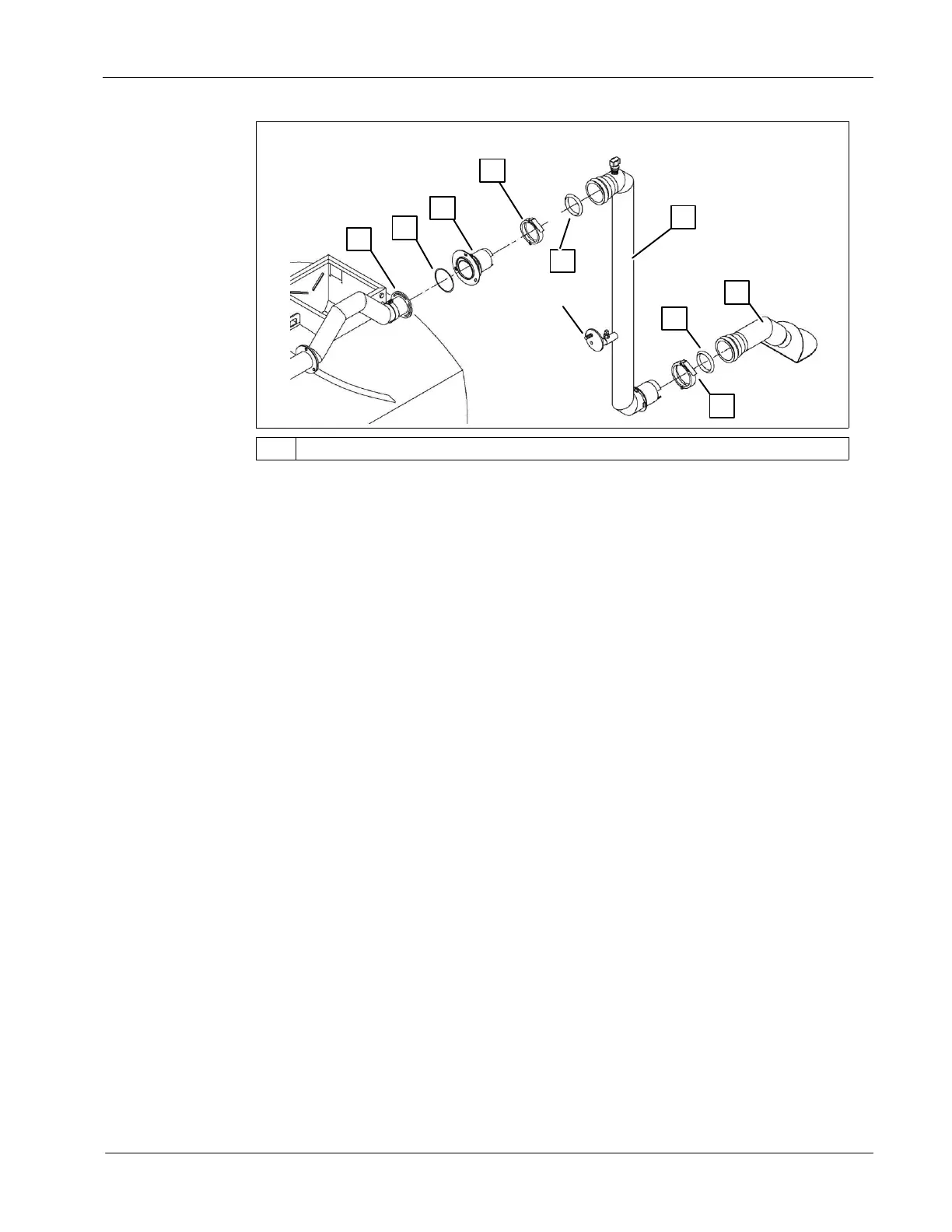

Bottom nozzle assembly
1
2
6
3
4
7
4
8
9
*
*
Bolted to the spreader
● Place the O-ring (1) around the lid of the adapter (2);
● Place the adapter (2) on the anti-siphon end (3). Bolt the assembly using
provided hardware;
● Insert the seal (4) inside the vertical tube (7);
● Apply grade 2 PRECISION
TM
XL5 MOLY EP2 grease (or equivalent) on the
seal (4);
● Slide the vertical tube (7) over the adapter end (2) until it reaches the welded
ring on the adapter;
● Install a circle lock clamp (6) over the junction of the vertical tube and of the
adapter;
● Insert the seal (4) inside the spreading nozzle (8);
● Apply grade 2 PRECISION
TM
XL5 MOLY EP2 grease (or equivalent) on the
seal (4);
● Slide the spreading nozzle (8) over the vertical tube end (7) until it reaches
the welded ring on the vertical tube;
● Install a circle lock clamp (9) over the junction of the vertical tube and of the
spreading nozzle.
