Handling and assembly
Tool bar assembly (optional)
2018-9015-001
09-2016
70 / 192
1
8
10
9

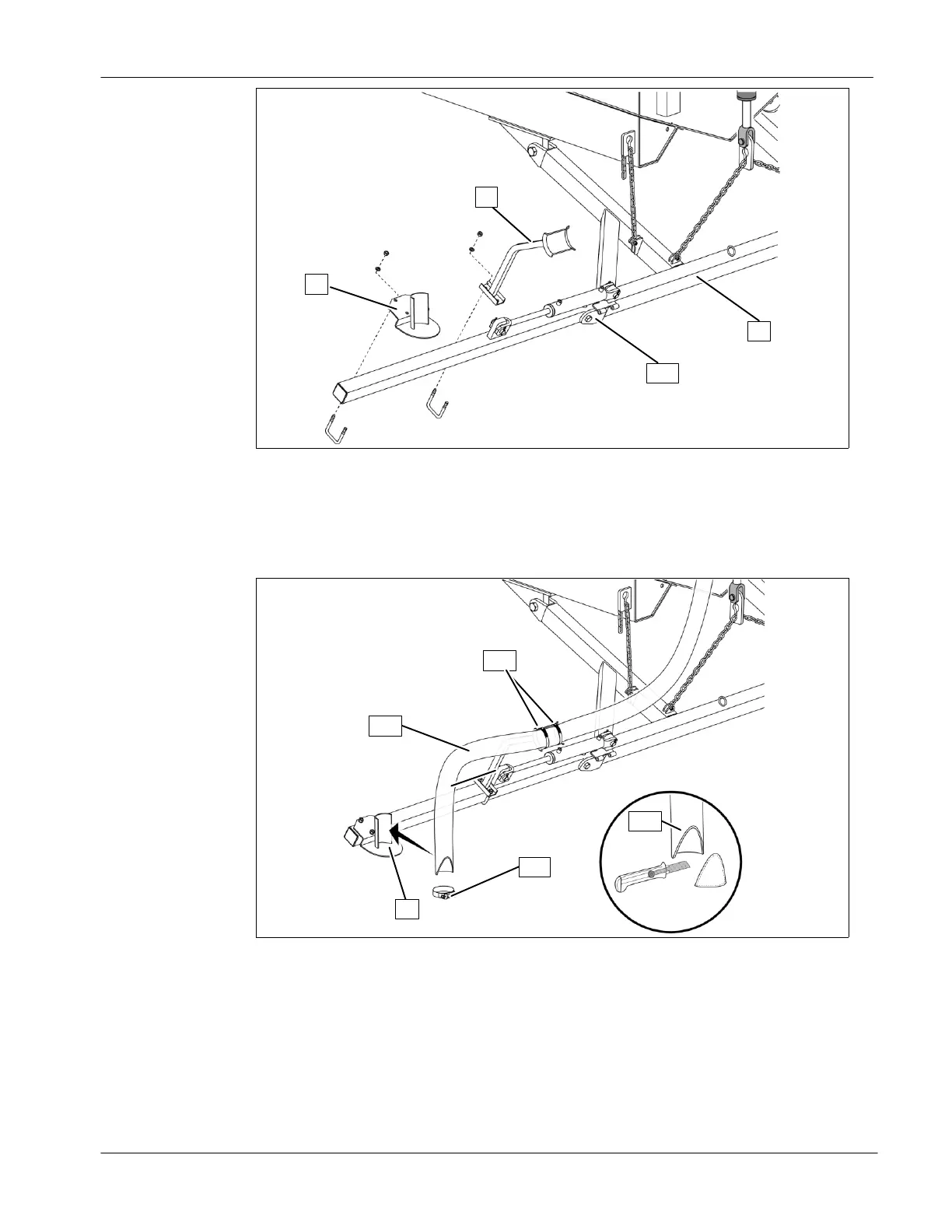

● Install the deflectors (8) on the tool bar (1) using provided hardware;
● Position the hose support (9) halfway between the tool bar end and the
hinge (10) on both sides;
● Fix the hose support (9) on the tool bar using provided hardware;
11
8
13
12
13
● Install a hose (11) from the spreader distributor to the deflector (8);
● Cut the hose (11) at proper length. The hose (11) should not be tight, keep
a loose;
● Cut the hose end as illustrated (12);
● Install the hose end in the deflector (8) and fix it using collars (13);
● Repeat these steps for each deflector;
● Connect hydraulic hoses to the spreader.
