Tool bar assembly (optional)
2018-9015-001
09-2016
71 / 192
5.22.3 Flex drop hoses tool bar
1
2
4
3
5

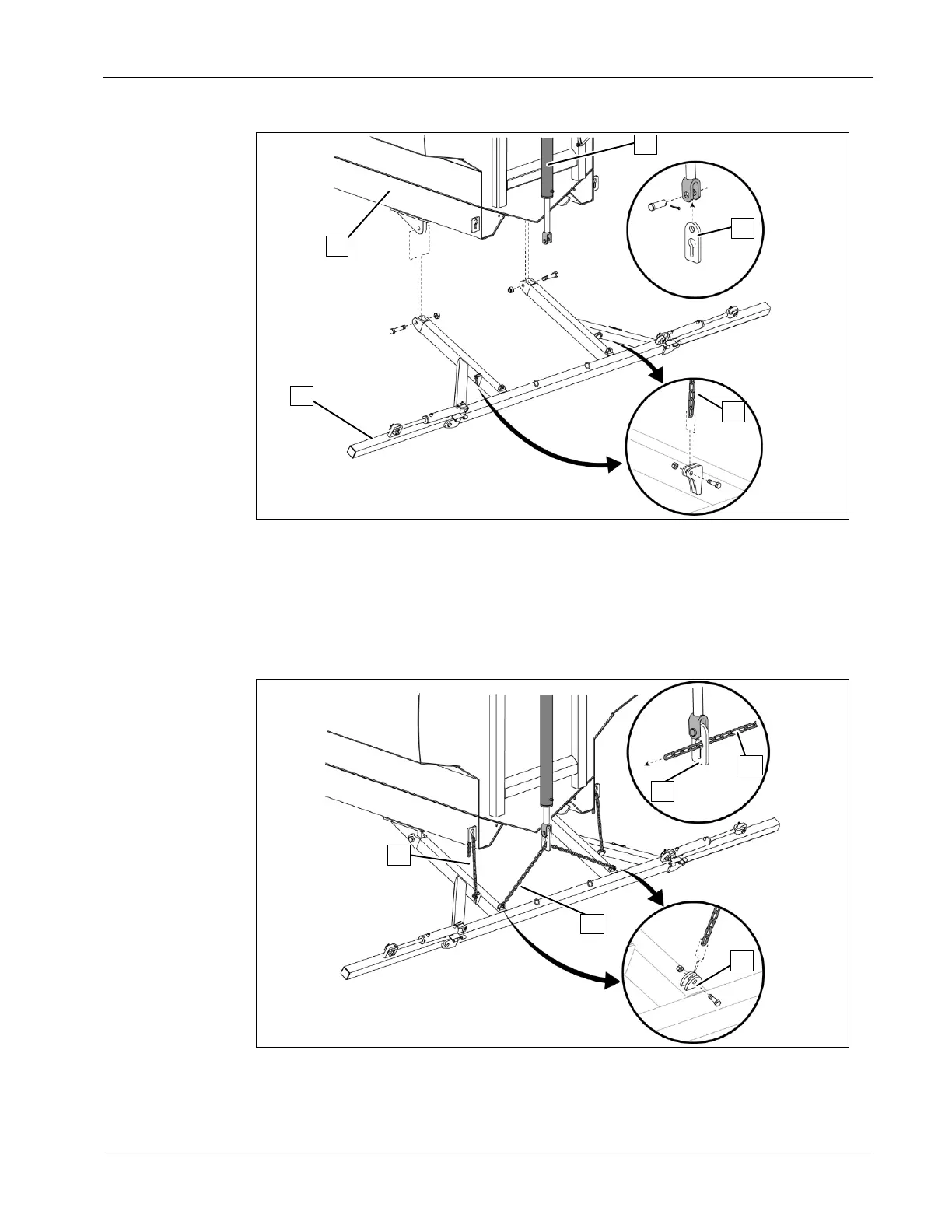

● Bolt the tool bar (1) to the spreader frame (2) using provided hardware;
● Fix the plate (3) to the hydraulic cylinder (4);
● Install safety chains (5);
5
6
7
3
6
● Insert the lifting chains (6) through the plate (3);
● Fix both ends of the lifting chain (6) to the tool bar brackets (7);
