Handling and assembly
Tool bar assembly (optional)
2018-9015-001
09-2016
72 / 192
9
1
8
10
11
11
11

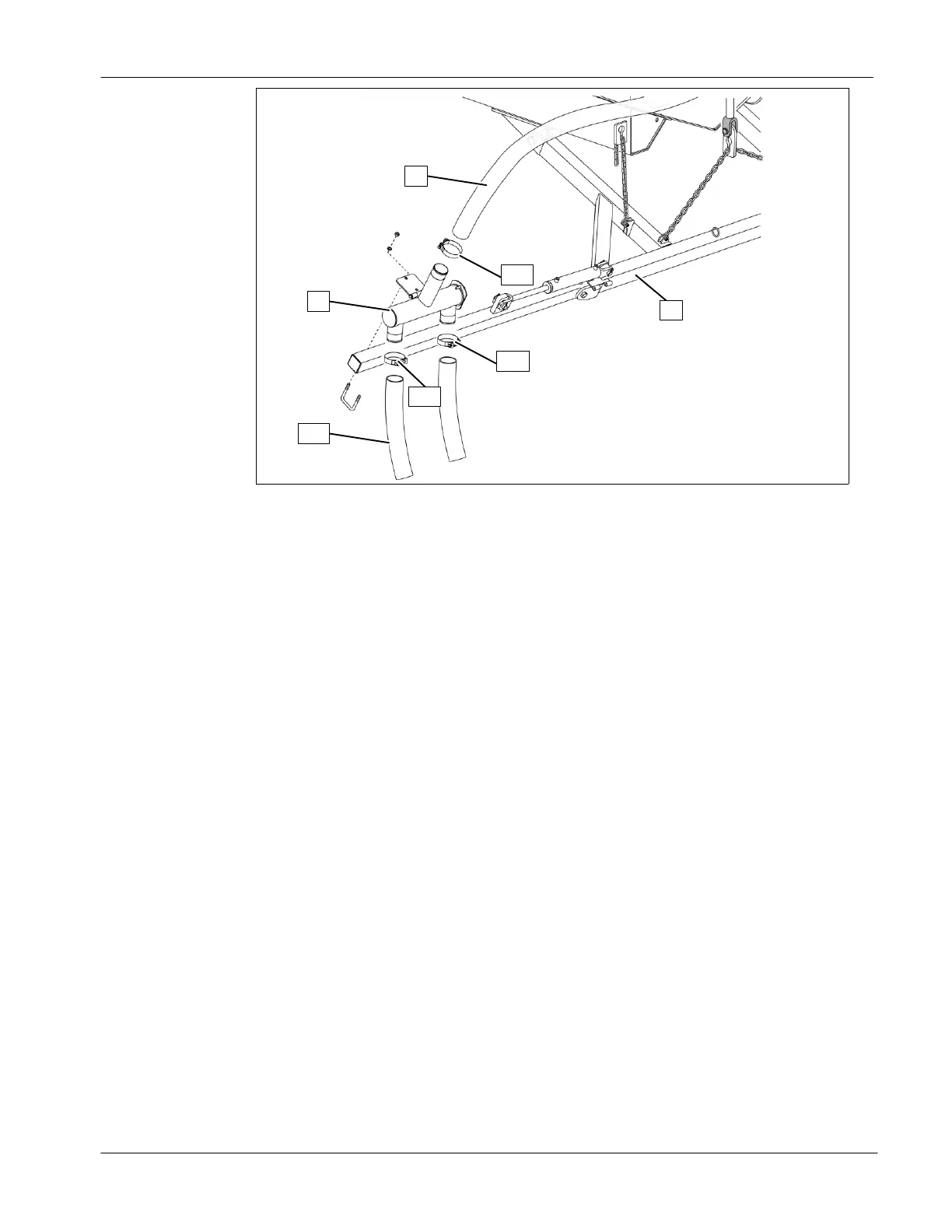

● Install the tools (8) on the tool bar (1) using provided hardware;
● Install a hose (9) from the spreader distributor to the tool (8);
● Cut the hose (9) at proper length. The hose (9) should not be tight, keep a
loose;
● Fix the hose (9) to the tool (8) using a collar (11);
● Cut hose ends (10) at desired length for each tool (8);
● Fix the hose ends (10) to the tool (8) using collars (11);
● Repeat these steps for each tool (8);
● Connect hydraulic hoses to the spreader.
