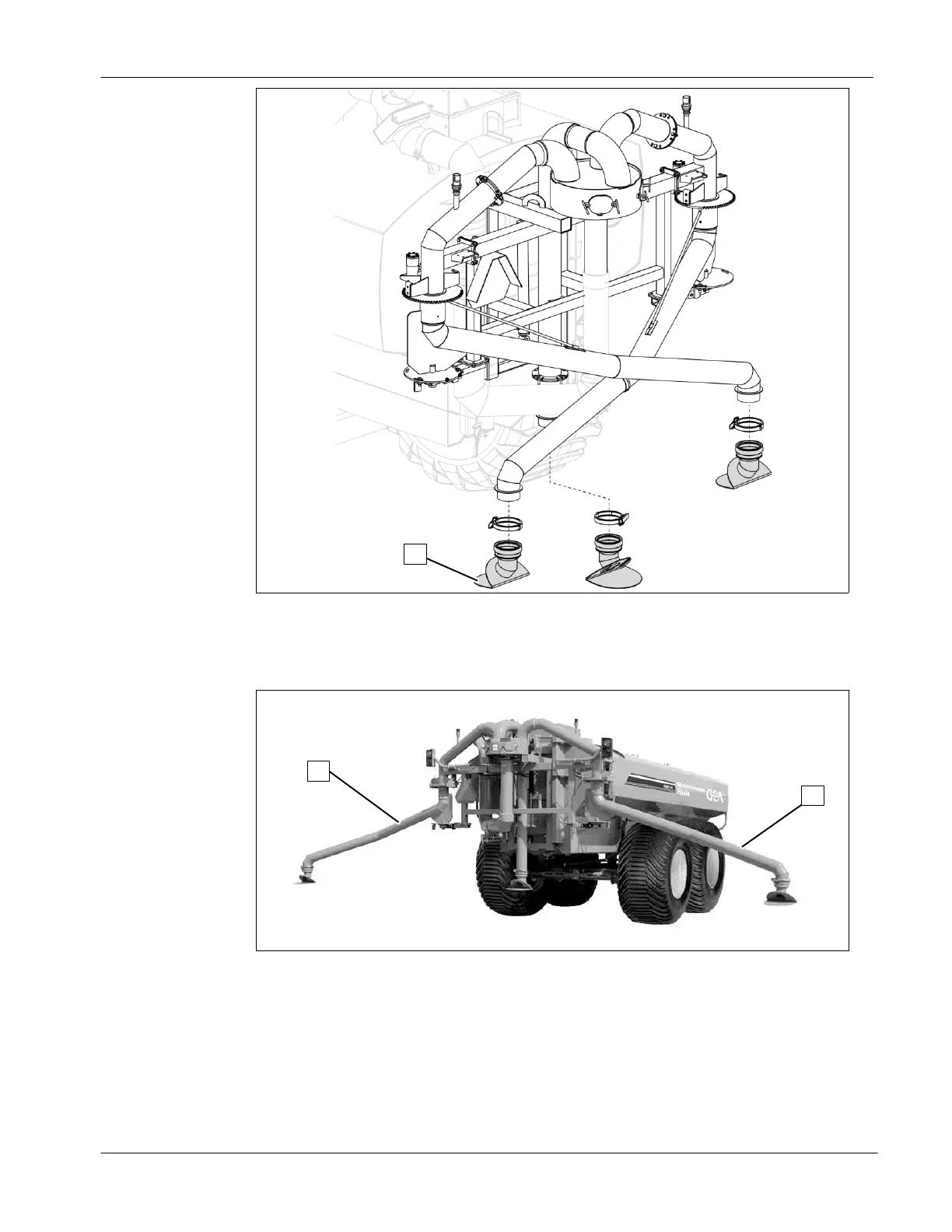

Handling and assembly
Tool bar assembly (optional)
2018-9015-001
09-2016
78 / 192
8
● Install the deflectors (8) as illustrated above using provided hardware;
● Lubricate all greasing points on the tool bar using grade 2 PRECISION
TM
XL5 MOLY EP2 grease (or equivalent);
4
4
● Open each arm (4) manually until the stopper is reached;
● Start hydraulic motors to close the arms (4).
