Handling and assembly
Tool bar assembly (optional)
2018-9015-001
09-2016
77 / 192
4
3
5
6

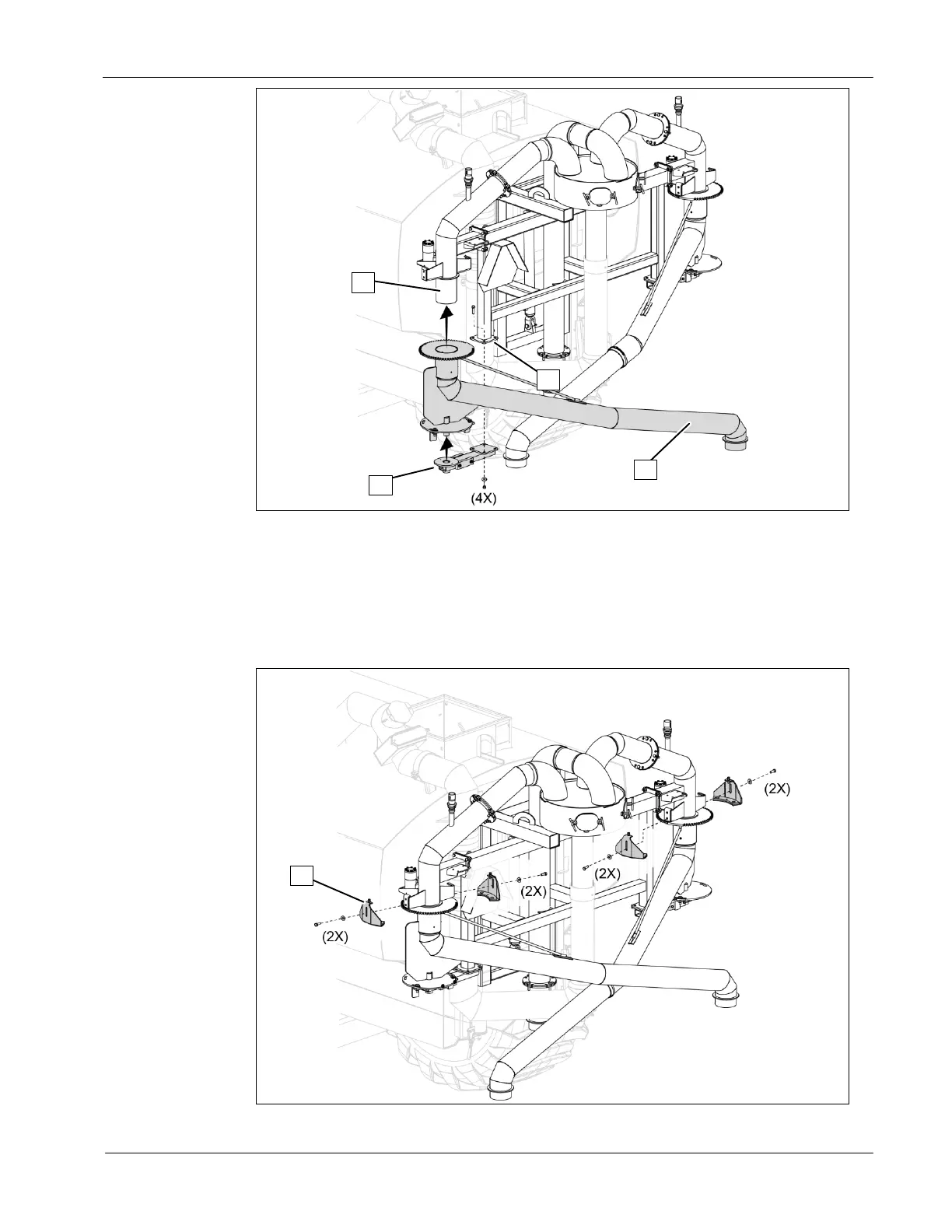

● Apply grade 2 PRECISION
TM
XL5 MOLY EP2 grease (or equivalent) on the
part (5);
● Insert the arm (4) over the part (5);
● Install the pivot support (6) on the arm (4) then fix the pivot support (6) to the
tool bar frame (3);
7
● Install the retaining fixtures (7), on both sides, using provided hardware;
