Handling and assembly
Tool bar assembly (optional)
2018-9015-001
09-2016
76 / 192

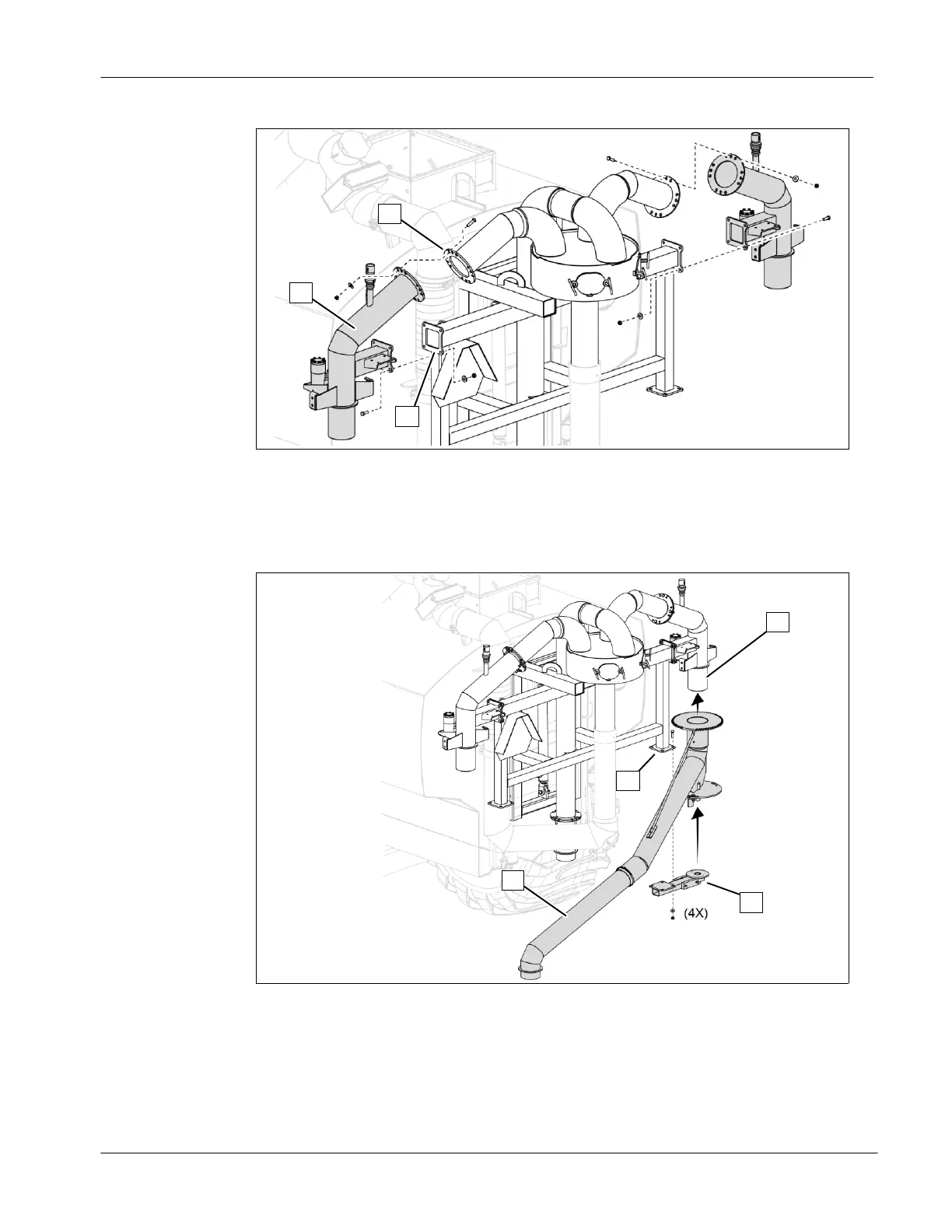

5.22.6 3 deflectors 38 ft tool bar
1
2
3
● Apply silicone on flange (2);
● Fix the part (1) to the flange (2) and to the tool bar frame (3), on both sides,
using provided hardware;
4
5
3
6
● Apply grade 2 PRECISION
TM
XL5 MOLY EP2 grease (or equivalent) on the
part (5);
● Insert the arm (4) over the part (5);
● Install the pivot support (6) on the arm (4) then fix the pivot support (6) to the
tool bar frame (3);
