Handling and assembly
Tool bar assembly (optional)
2018-9015-001
09-2016
75 / 192
5.22.5 Gauge wheel (if applicable)

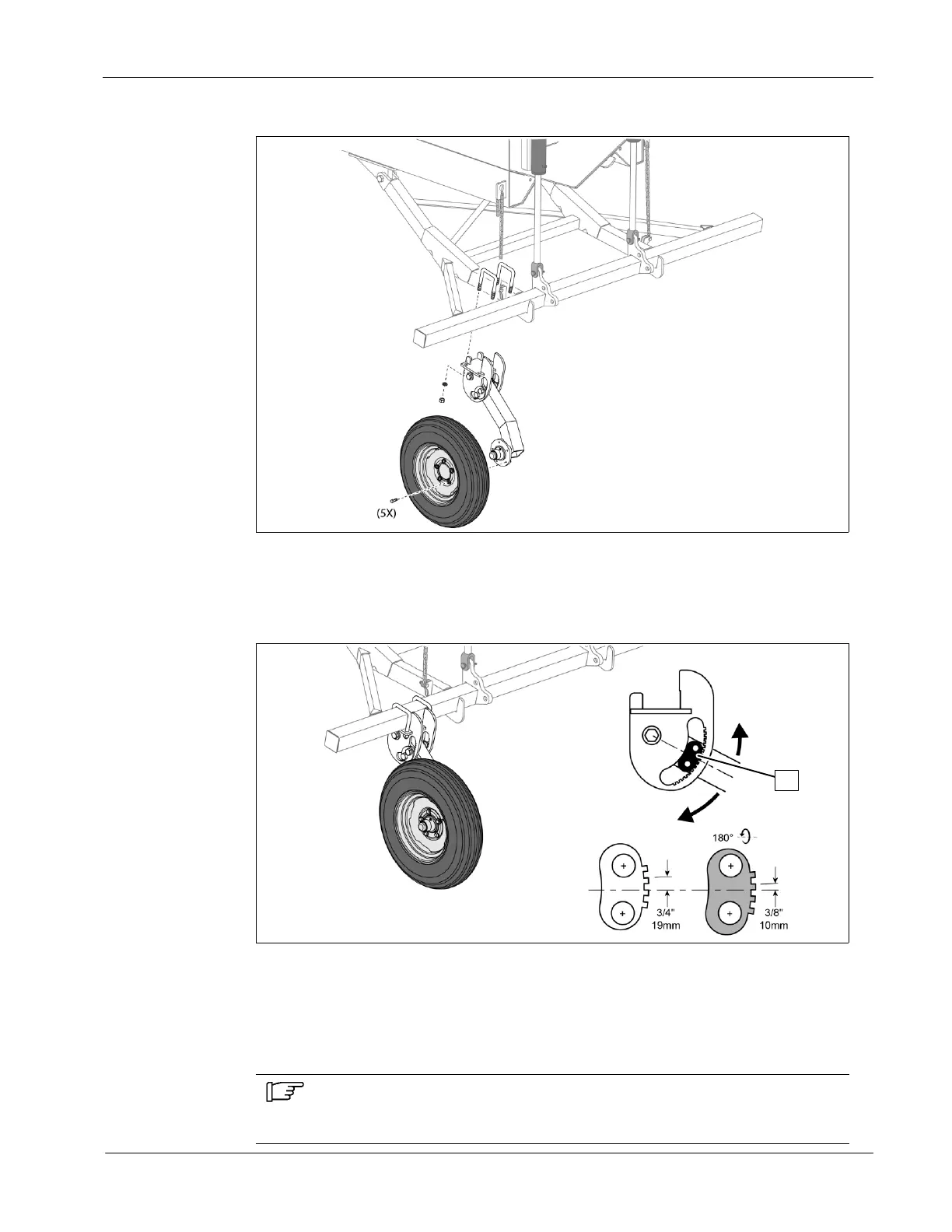

● Fix the gauge wheel on the tool bar as illustrated above using provided
hardware;
1
● To adjust the gauge wheel height, remove the locking plate (1) to unlock the
wheel. Lower the tool bar to the desired height. Put the locking plate back
in place to lock the wheel.
Note!
Depending on the locking plate installation side, the adjustment can
be of ¾'' or ⅜'' between each tooth.
